The main application scenarios of unbalanced cable splitters

The unequal planar waveguide optical splitter (unbalanced cable splitter) has core application value in the following scenarios due to its customizable splitting ratio:

FTTR (Fiber to the Room) Network Deployment

With the growing demand for multi-room gigabit broadband in homes, FTTR requires unevenly distributing backbone fiber signals to different rooms based on actual distance and bandwidth requirements. For example, a 70:30 optical splitter prioritizes bandwidth for the main router in the living room, then distributes it to secondary routers in the bedrooms, effectively optimizing signal coverage and resource utilization throughout the home.

https://yingdapc.com/product/1-5-fiber-splitter-cable-70-30

Fiber Optic Monitoring Systems

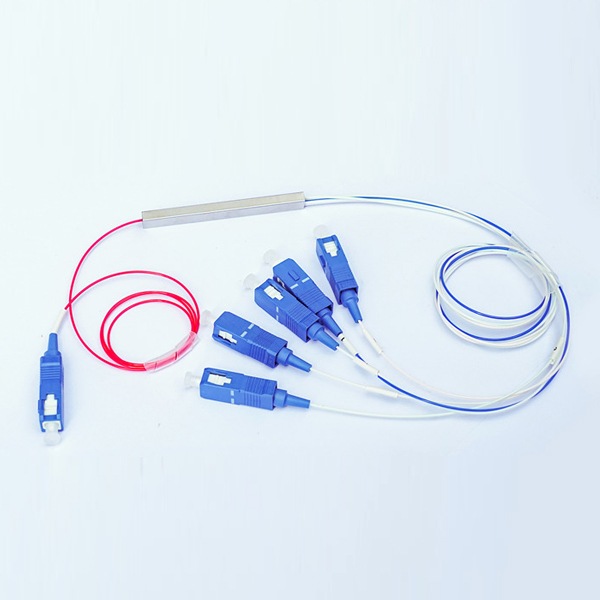

In the security field, the distances between monitoring nodes and central equipment rooms vary significantly. Using an unbalanced cable splitter (e.g., 60:40) allows higher optical power to be allocated to cameras in remote key areas, ensuring stable video streaming, while lower power is allocated to near-end nodes to avoid signal overload.

https://yingdapc.com/product/1-5-planar-lightwave-circuit-splitter-60-40

Fiber Optic Sensor Networks

Distributed sensors (such as temperature and stress monitoring) require optical signal strength to be allocated based on the importance of the detection point. Critical monitoring points (such as bridge stress points) can be split at a higher ratio (e.g., 80:20 unbalanced cable splitter) to improve data acquisition accuracy and system signal-to-noise ratio.

https://yingdapc.com/product/1-9-unbalanced-cable-splitter-80-20

Multi-Level Splitting FTTx Networks

In complex optical distribution networks (ODNs), secondary splitting nodes often require a non-uniform splitting design. For example, a primary splitter distributes the main signal to different areas at a 90:10 split ratio, while a secondary splitter further divides the signal based on user density, enabling flexible allocation of network resources.

https://yingdapc.com/product/90-10-optical-splitter-1-9

Such scenarios rely on PLC technology to achieve arbitrary splitting ratios through waveguide structure design. Its wavelength insensitivity and high stability (operating wavelength 1260-1650nm) adapt to the needs of multi-service transmission, making it a key component for the flexible deployment of optical distribution networks.

Unbalanced Cable Splitter FAQ

What is the price of unbalanced cable splitter?

All of Yingda’s unbalanced splitters are manufactured by highly skilled workers through a rigorous production process. They are mass-produced, resulting in significant cost advantages.

How to choose the right unbalanced cable splitter?

Please select a fiber splitter with optimal performance and lowest cost based on your specific requirements, such as your usage scenario, required splitting ratio, and terminal device port compatibility.

What is the splitting ratio range for unequal splitters?

Yingda offers unequal splitters with various splitting ratios. Currently, we mass-produce splitters with ratios of 1:3, 1:5, 1:6, 1:9, 1:12, and 1:24. Support customization.

What is the market price for unbalanced 3 way splitter?

Unbalanced cable splitters are increasingly popular, especially in applications such as fiber-to-the-trend (FTTR) and security surveillance systems.

What is the technical principle of the unequal optical splitter?

The unequal optical splitter is based on planar waveguide (PLC) technology. Through a precisely designed waveguide structure, the input optical signal interferes in the branching area, achieving differentiated optical power distribution for different output ports.
