Description
Features of Outdoor Fiber Distribution Cabinet
- Total enclosed with key and 4buckle, light weight, compact size;
- High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
- Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
- Cable, pigtails are running through own path without disturbing each other;
- Adapter panel max can be 24SC, and 4trays fusion 48cores in total, each tray have 1×8 steel tube fix slot
- Feeder cable can be placed by expression port, easy for maintenance and installation;
- Outdoor Wall mount or pole mount, IP65 protection class.
Specification
| Model | FDB0224M-A | FDB0224M-B |
| Dimension(A*B*C) | 345*220*95mm | |
| Max. Capacity | 48cores=4*12F (single fiber) | |
| Cable ports | 1mid span, 2 cable glands, 24out | |
| Cable diameter | 1mid span:Φ14.5mm, 1cable gland:Φ7-12mm, 24 out:2*Φ3mm | |
| Splitter quantity | 1×16 or 3pc 1×8 steel tube | 1×16 or 2pc 1×8 LGX module |
| Adapter quantity | 24SC | — |
| Color | Grey / black | |
Detailed Display of Outdoor Fiber Distribution Cabinet
This box can withstand harsh outdoor conditions like rain, dust, extreme temperatures, and UV radiation, foe which is made of durable, weather-resistant plastic or composite material. It could be customized in grey or black.

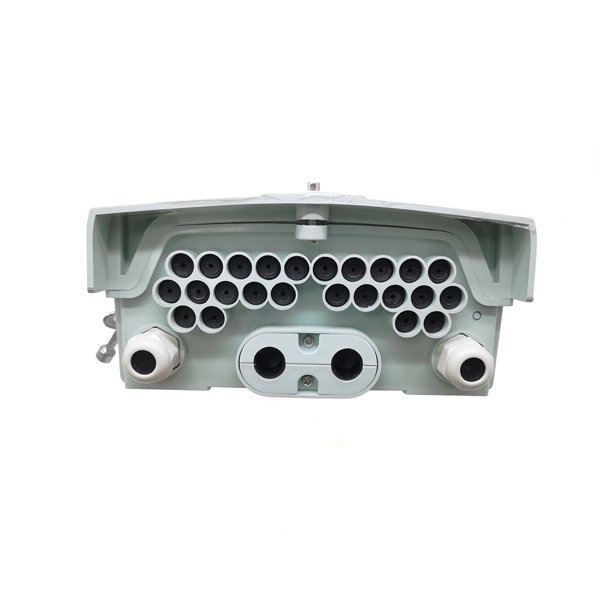

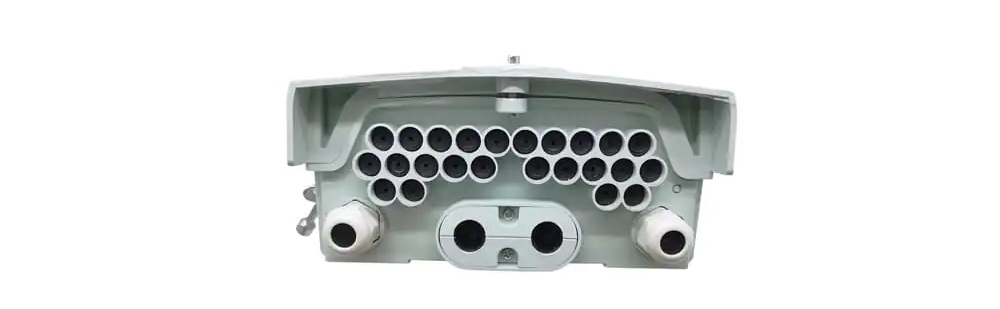

Multiple cable entry/exit ports allow for the introduction and distribution of optical fiber cables. These ports are designed to seal tightly, preventing water and dust ingress. There are also dedicated ports for different cable sizes and types, ensuring flexible deployment.

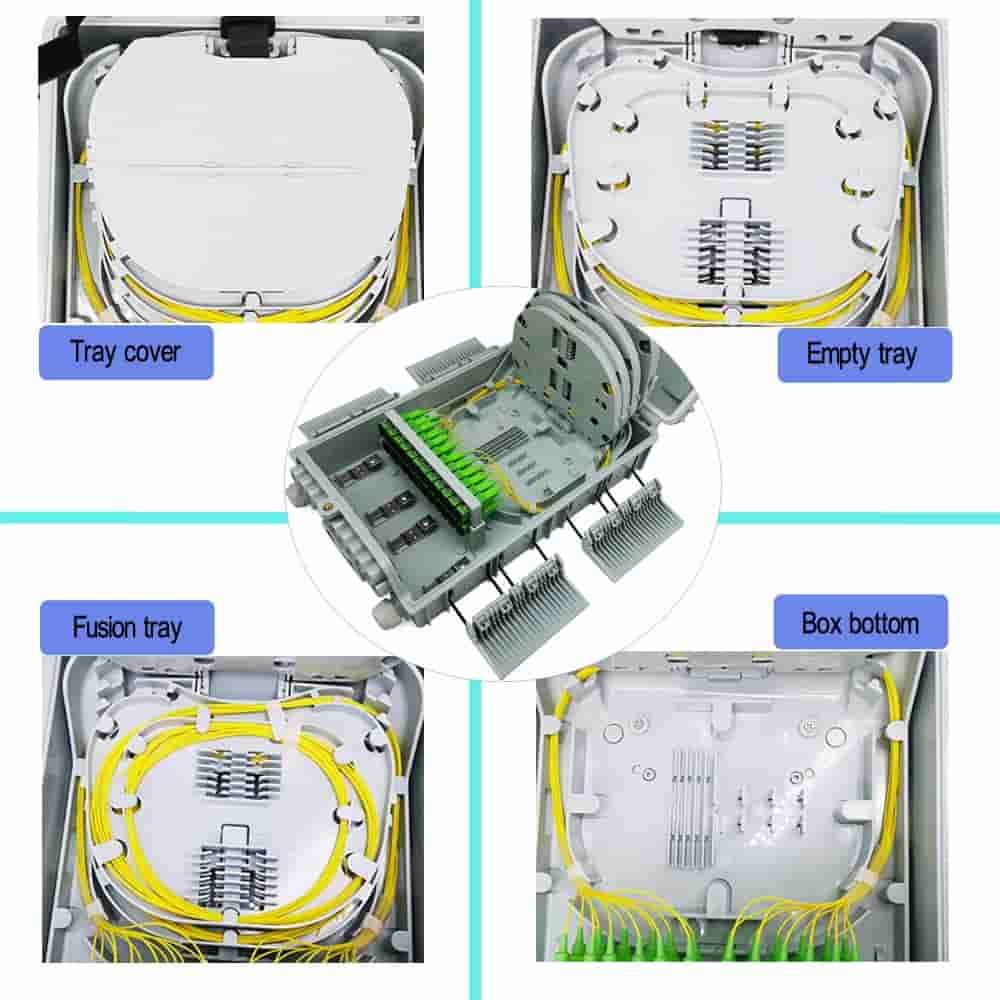

Inside, there is a circular splice tray where fiber splicing (joining two fibers) occurs. It provides a secure and organized space for splicing operations, with slots and holders to fix the splice points. Yellow optical fiber pigtails and SC adapters are visible, enabling the connection between incoming fibers and distribution fibers. 1×16 or multiple 1×8 steel tube (or LGX module) would be well-matched here.
It features like cable ties, routing guides, and spooling areas help organize and protect fibers from bending or damage, maintaining signal integrity. Internal spaces are designed for clear labeling, allowing technicians to easily identify and manage different fiber circuits, which is crucial for maintenance and troubleshooting.
