Description
Features of Distribution Box Fiber
- Total enclosed with key and 2*buckles, round shape at back, light weight, compact size;
- High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
- Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
- Cable, pigtails are running through own path without disturbing each other;
- Distribution panel can be flipped up,1X16 LGX splitter or micro splitter with 16SC adapter is optional;
- Fusion plate can be maximum 16cores splicing, large area for routing and storage;
- Feeder cable can be placed by expression port, easy for maintenance and installation;
- Outdoor Wall mount or pole mount, IP65 protection class
- Laser mark and logo print reserved on the lid
Specification
| Model | FDB0216V-A | FDB0216V-B |
| Dimension (A*B*C) | 287*172*102mm | |
| Max. Capacity | 16 cores (single fiber) | |
| Cable ports | 1mid span, 2cable glands, 16out | |
| Cable diameter | 1mid span(Φ13.5mm), 2cable gland(Φ7-12mm), 16: drop cable 2*3mm or <4.5mm round cable | |
| Splitter quantity | 1×16 or 2pc 1×8 steel tube | 1×16 or 2pc 1×8 LGX module |
| Color | Grey / black | |
Detailed Display of Distribution Box Fiber

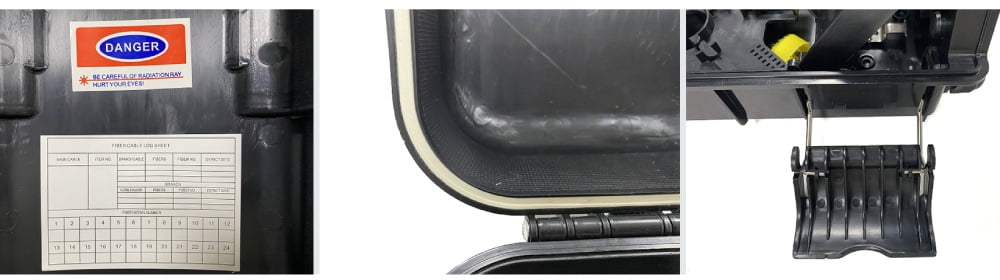

This box features a secure locking mechanism and gasketed closure to ensure IP-rated protection (e.g., IP55 or higher) against water and dust ingress. The front panel has multiple ports for fiber cables (both incoming and outgoing), along with slots for cable management and strain relief.

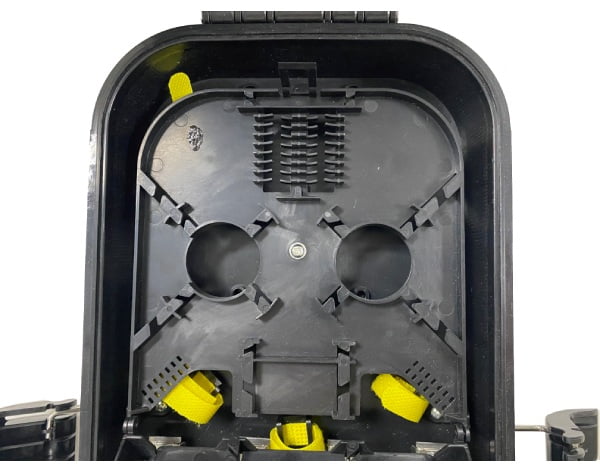

Inside, there are dedicated spaces for fiber splicing, termination, and organization. Yellow clamps/holders are visible, designed to secure fiber optic cables and splice trays, preventing tension or damage to the fibers. A label inside the lid provides guidance on port mapping, splicing configurations, and product specifications, aiding in installation and maintenance.
The enclosure can house splice trays (for fusion or mechanical splicing) and fiber adapters (e.g., SC, LC connectors). In one image, green fiber adapters are shown, indicating compatibility with standard connector types.
Multiple sets of green fiber adapters (SC type) could be placed in the box, which are used to realize the live connection of fibers (that is, the quick connection and disconnection of different fiber links), and are the core components of fiber signal branching. The enlarged view on the right shows a fiber splitter module, which can realize the function of 1-to-many fiber signal branching (such as 1-to-8, 1-to-16, etc.), and is a key component to realize the distribution of fiber signals from the backbone to multiple user terminals.
