Description
Product Feature
- The product is made of high-quality and impact-resistant plastics, with anti-UV and waterproof function.
- With independent turning tray for splicing or splitting, the circuit is clearer and not easy to cross
- Tower type sealing plug for cable inlet and outlet, compatible for different kinds of cable size
- The cover has a suspended fixing device, which will not affect the construction due to falling during installation and
- The box body adopts anti-theft screws and is equipped with a special key.
- Wall or pole mounted.
Specification
| Item | Value |
| Model | FDB0205 |
| Dimension W*D*H (mm) | 250*320*98 |
| Cable diameter (mm) | ≤ 24 |
| Cable inlet/outlet | 2/5 |
| Splitter type | Steel Tube type (mini splitter) |
| Max splitting | 2pcs 1:8 splitter |
| Max tray | 2 pcs |
| Adapter type | SC simplex no flange, 24pcs |
Installation of Fiber Distribution Box 0205

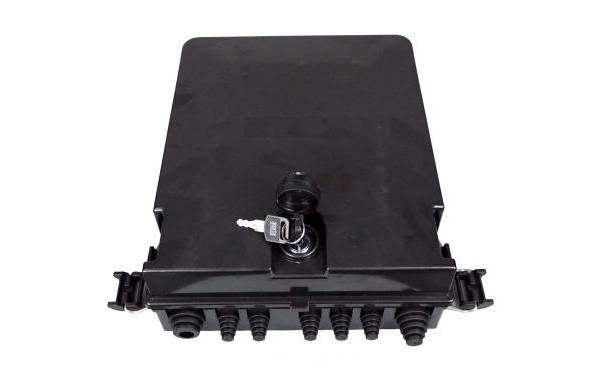

Use key to unscrew the lock, loosen the latch on both side to open the box.

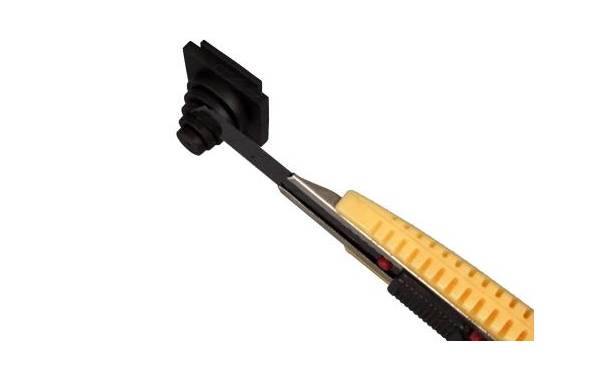

Cut the tower sealing plug as per the cable

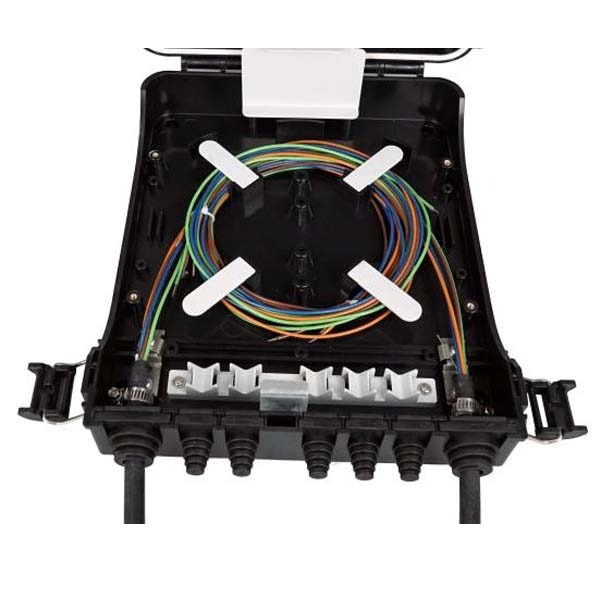

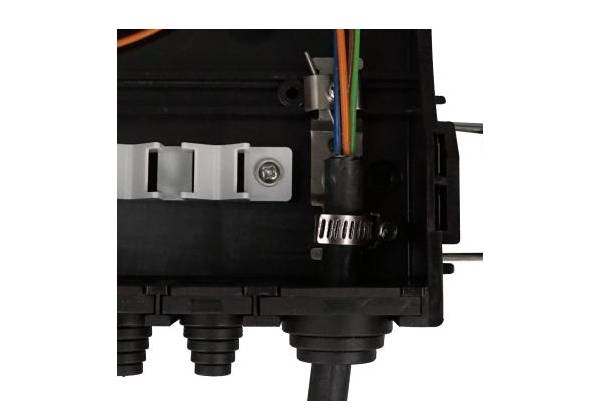

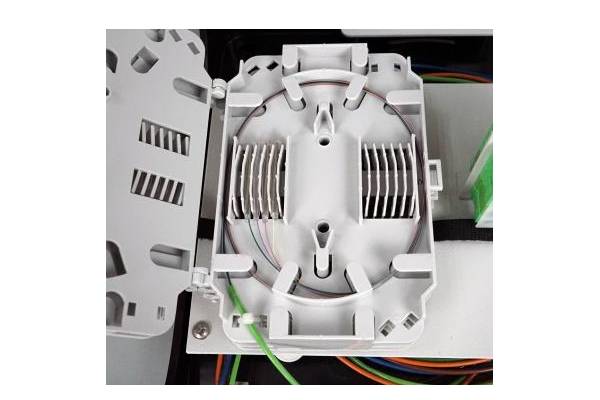

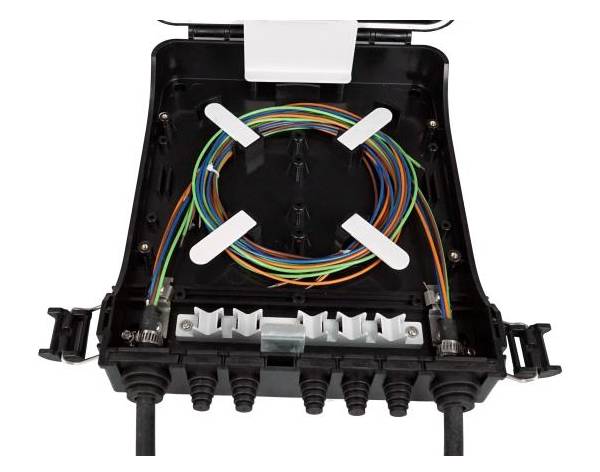

Take the cable through the tower sealing plug, lock the cable inside the box by a hoop, and compress the reinforcing core by screws through the presser, finish the sealing and fixing of the cable; strip the cable, then put the fiber to the tray, and let the end in the splicing slot after coiling.

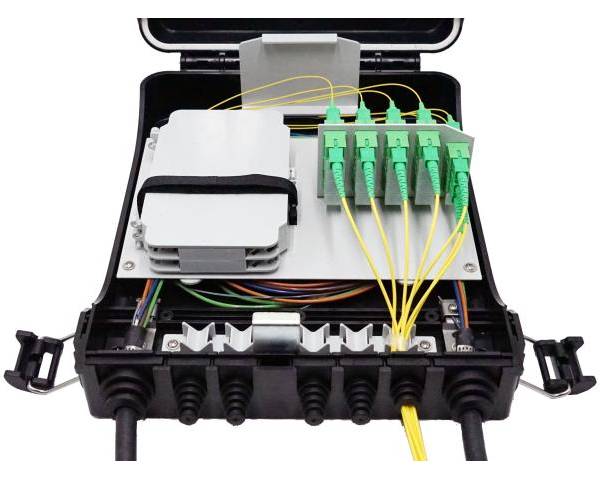

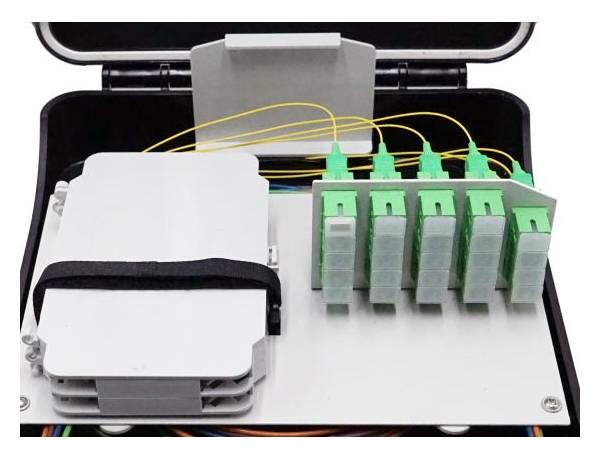

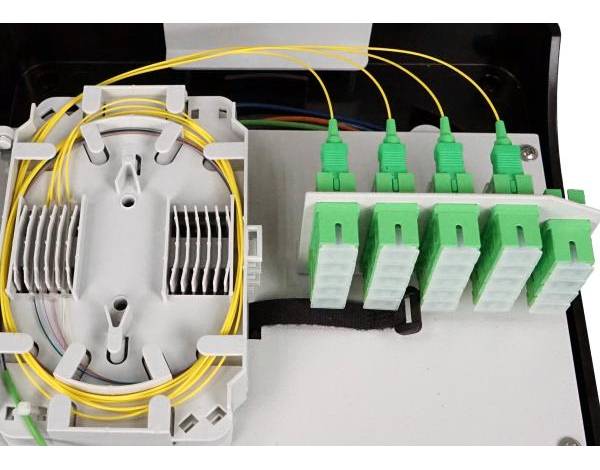

Fix the SC earless adapters, and connect pigtails with adapters, and put the pigtails in the splicing slot, splice with the incoming cables.
Connect the outgoing pigtail with adapters, fix the cable with clamp and pass it through the plug.
Box installation:

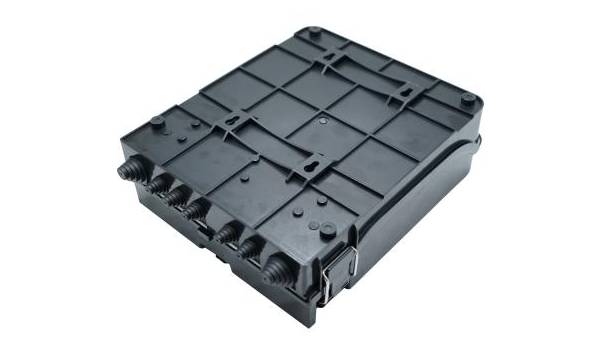

Wall mount: through the 4 gourd holes at the bottom of the box, the installation hole distance is: 100mm X 145mm；

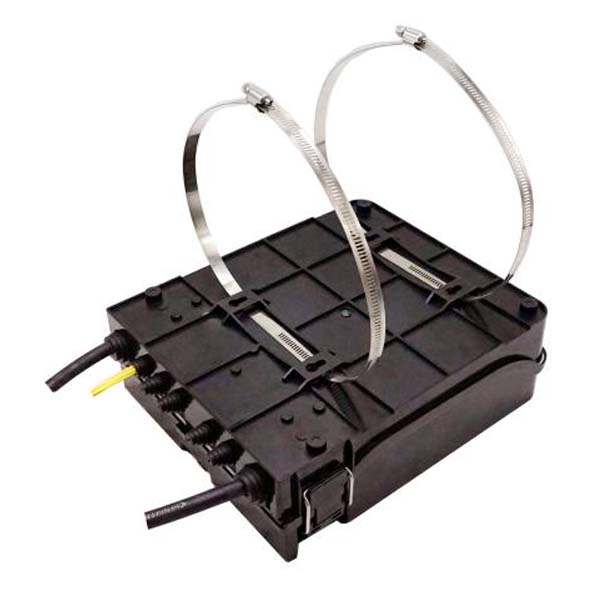

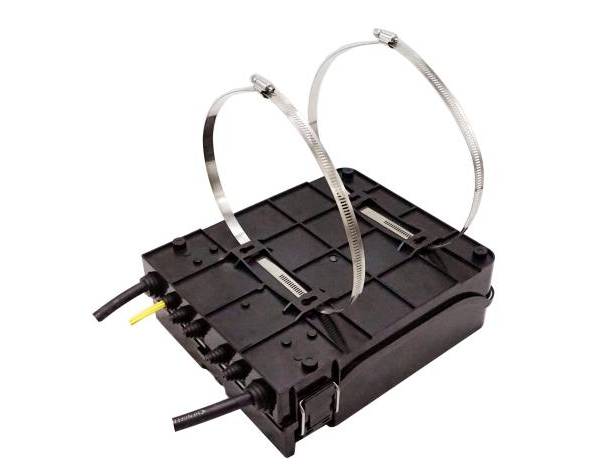

Holding pole: though two square grooves at the bottom of the box, it is connected to the pole by holding hoop.
