Outdoor 24 Fibers Fat Box In Ftth Network, 2pcs 1×8 Splitter,1×16 Splitter(Unload),16 Sc Adapters, Wall / Pole Mount, Abs White

Description

Features of Fat Box in FTTH

• Box is with key + 2clips, cable entry can be glands or uncut port;
• It is applicable for outdoor cables or indoor soft cable;
• The box can use for a minimum period of 20 years;
• FTTH outdoor wall mount or pole mount;
• Box with waterproof circle, protection class IP65;
• High quality ABS+PC plastic, all metal parts stainless steel;
• Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;
• Rotating splice plate front with 16 SC adapter or LGX module, back for 24 cores fusion splice and routing area;
• Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius.

Specification

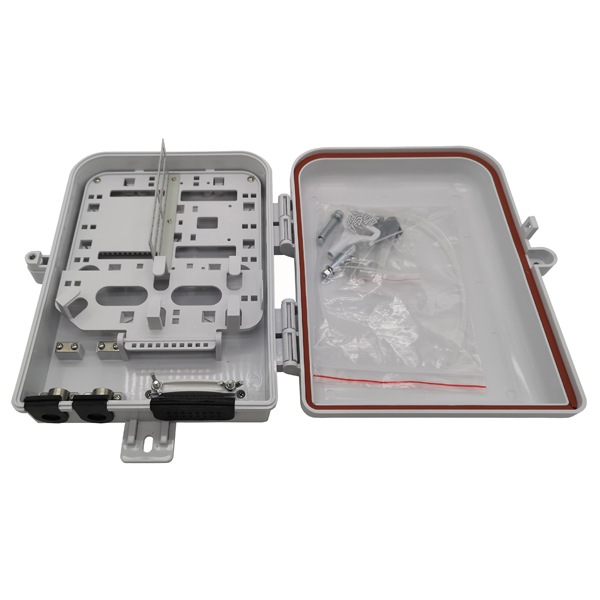

Detailed Display of Fat Box in FTTH

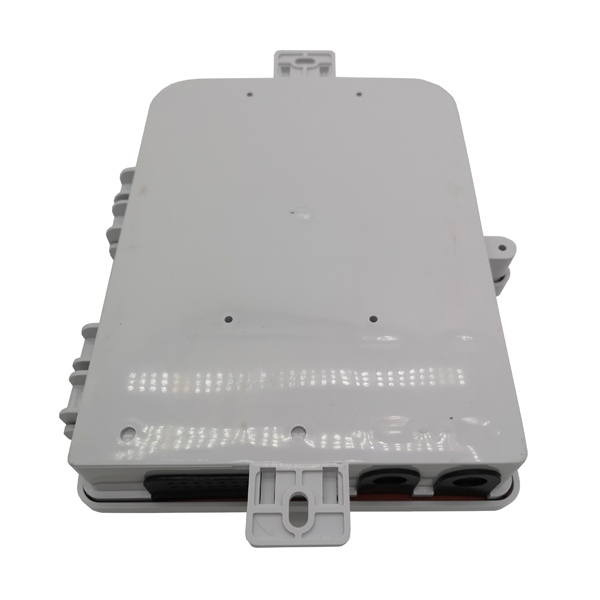

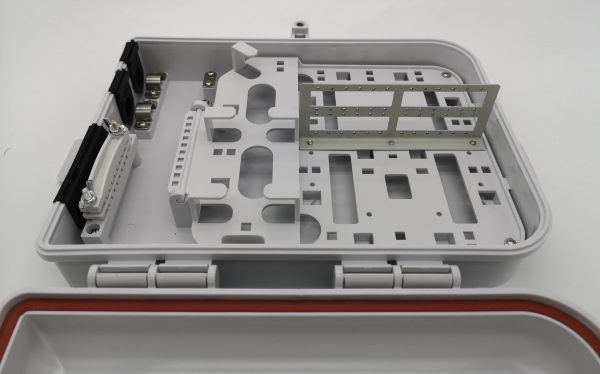

This box is equipped with hinges for smooth lid opening and a secure locking mechanism, whose color could be customized in grey, black, and white. There are mounting holes or brackets at the bottom/back, allowing easy installation on walls, poles, or other surfaces. It features clamps and stripping plates to secure incoming fiber cables (both main and drop cables) and remove their outer jackets safely, providing a structured area for fiber splicing (fusion or mechanical), with slots and guides to organize splice protectors.

This box is typically designed for small to medium capacity, ranging from 8 to 32 ports (depending on the model), making them suitable for serving multiple households in a neighborhood or building. Acts as a central point in the optical distribution network (ODN), where the main optical fiber from the network is split and distributed to individual homes via drop fibers. It enables fiber splicing, termination, and management, ensuring reliable and high-speed broadband connectivity for end-users.

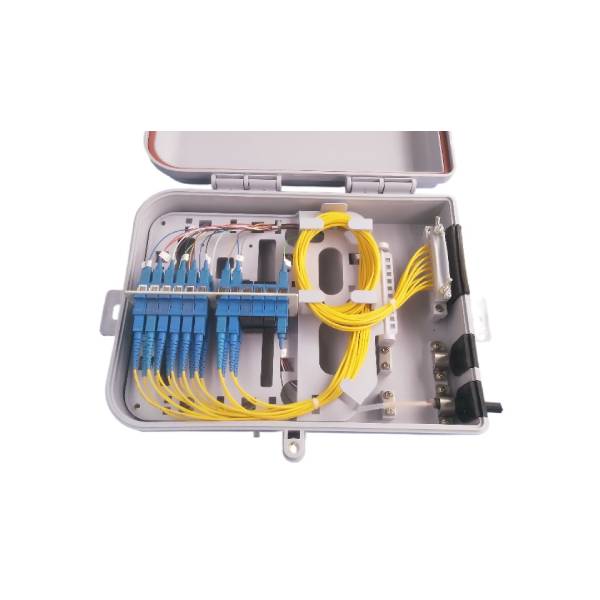

Full configuration display:

• Fiber Optic Adapters (Flanges): An array of blue fiber optic adapters, which are used to achieve the docking of optical fibers and ensure the transmission of optical signals.
• Fiber Optic Patch Cables: Yellow fiber optic patch cables, one end of which is connected to the fiber optic adapter, can be used to connect the fiber optic at the user end or other fiber optic devices.
• Fiber Optic Cable Management Device: The circular cable management structure in the middle is used to organize and store the excess fiber optic patch cables, making the layout of the optical fibers in the box neat and orderly and avoiding the optical fibers from being tangled and damaged.
• Fiber Optic Fixing and Fusion Splicing Components: The metal structure and other components on the right are used to fix the incoming optical fibers and perform fusion splicing operations, ensuring the stability of the fiber optic connection.

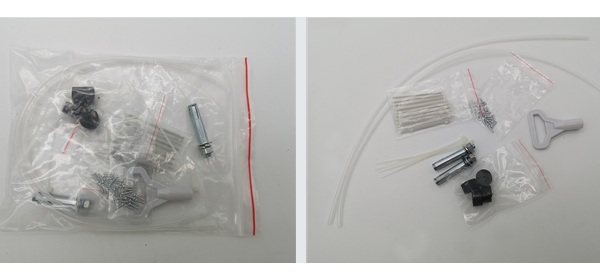

The tools and components included in these fiber distribution boxes are as follows:

• Cable Clamps: Black plastic clamps used to secure optical fibers or cables, ensuring they are neatly organized and fixed.
• Plastic Cable Ties: White cable ties for bundling and managing cables to keep the internal layout orderly.
• Metal Screws and Bolts: Used for assembling and fixing the components of the fiber distribution box, ensuring structural stability.
• Metal Fastening Components: Such as the silver cylindrical part, which may be used for connecting or fixing specific parts inside the box.
• White Plastic Tools/Components: Likely a tool or a part for operating or installing the fiber optic connectors.
• Optical Fiber Tubing: A long white tube, probably used for protecting or routing optical fibers.
• Small Metal Pins: May be used for positioning or connecting in the fiber optic connection process.
