Description
Features of Fiber Optic Splitter Terminal Box
- Total enclosed with key and 2*buckles, square shape, light weight, compact size;
- High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
- Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
- Cable, pigtails are running through own path without disturbing each other;
- Distribution panel can be flipped up,1X16 LGX splitter or micro splitter with 16SC adapter is optional;
- Fusion plate can be maximum 16cores splicing, large area for routing and storage;
- Feeder cable can be placed by expression port, easy for maintenance and installation;
- Outdoor Wall mount or pole mount, IP65 protection class
- Laser mark and logo print reserved on the lid
Specification
| Model | FDB0216W-A | FDB0216W-B |
| Dimension (A*B*C) | 274*175*82mm | |
| Max. Capacity | 16 cores (single fiber) | |
| Cable ports | 1mid span, 2cable glands, 16out | |
| Cable diameter | 1mid span(Φ14.5mm), 2cable gland(Φ7-12mm), 16: drop cable 2*3mm or <4.5mm round cable | |
| Splitter quantity | 1×16 or 2pc 1×8 steel tube | 1×16 or 2pc 1×8 LGX module |
| Adapter quantity | 16SC | — |
| Color | Grey / black | |

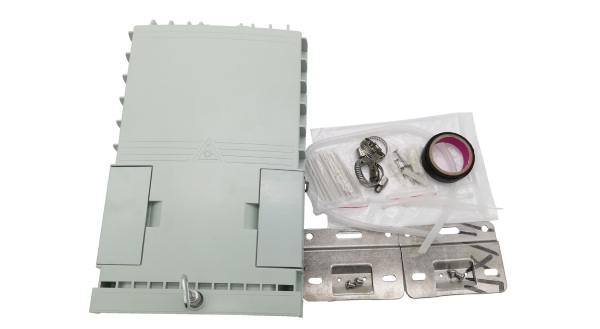

Detailed Display of Fiber Optic Splitter Terminal Box

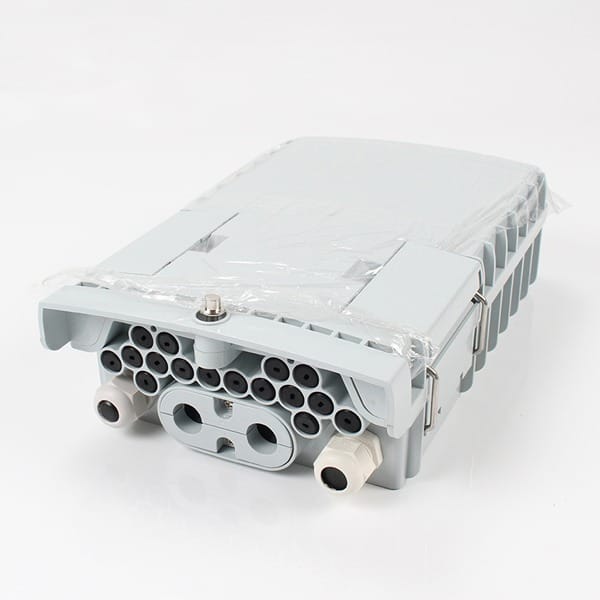

This box has a robust structure to withstand outdoor environments, including resistance to weather elements like rain, dust, and moderate impacts. It features multiple circular cable entry/exit ports to accommodate incoming and outgoing fiber optic cables. These ports are designed for secure cable routing and sealing. Also, it is equipped with a locking screw to ensure the box remains securely closed, preventing unauthorized access and protecting internal components.

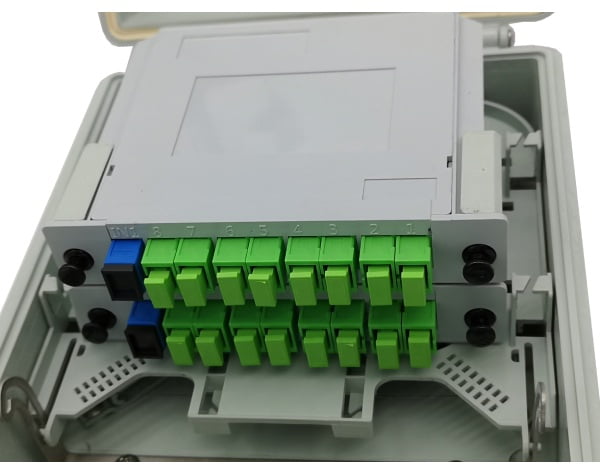

The core component is the fiber optic splitter (highlighted in the following image), which distributes optical signals. It features green SC/APC for precise fiber connections.

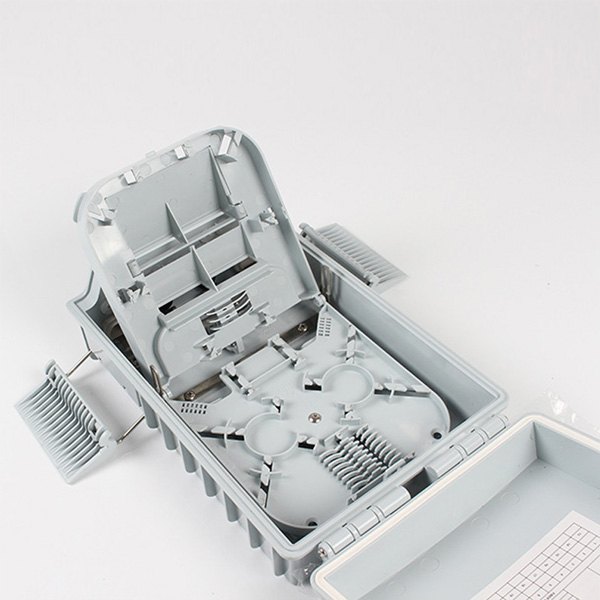

These spool-like structures are used for organizing and storing fiber optic cables, allowing for proper bending radius management to avoid signal loss. Inside the lid, there is a labeling area and a datasheet to record fiber connection details, aiding in maintenance and troubleshooting.
