Description
Features of FTTH Termination Box
- Total enclosed structure.
- Material:PP.wet-proof.water-proof、dust-proof、anti-aging.protection level up to IP65.
- Cable, pigtails. patch cords are running through own path without disturbing cable other, cassette type SC/LC. PLC adaptor installation, easy maintenance.
- Distribution panel can be flipped up. Feeder cable can be placed by expression port, easy for maintenance and installation.
- Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Specification
- Environmental requirement
- Working temperature:-40℃~+85℃
- Relative humidity:≤85%(+30℃)
- Atmospheric pressure: 70KPa~106Kpa
- Main technical datasheet
- Insertion loss:≤0.2dB
- UPC: return loss:≥50dB
- APC return loss:≥60dB
- Life of insertion and extraction: >1000 times
- Thunder-proof technical datasheet
- The grounding device is isolated with the cabinet, isolation resistance is less than 2×10*MS2/500V (DC): IR≥2×10*MΩ500V.
- The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture, no flashover;U≥3000V.
- Configuration table:
| Model | Size(Pic 1) A*B*C(mm) | Max Capacity | Installation Size D*E(mm) | Into the largest cable diameter(mm) | Cable outlet size (mm) |
| FDB0208P | 281.4*177*80.3 | 36 | 265*133/52*128.6 | 12 | 2*3 |
Detailed Display of FTTH Termination Box

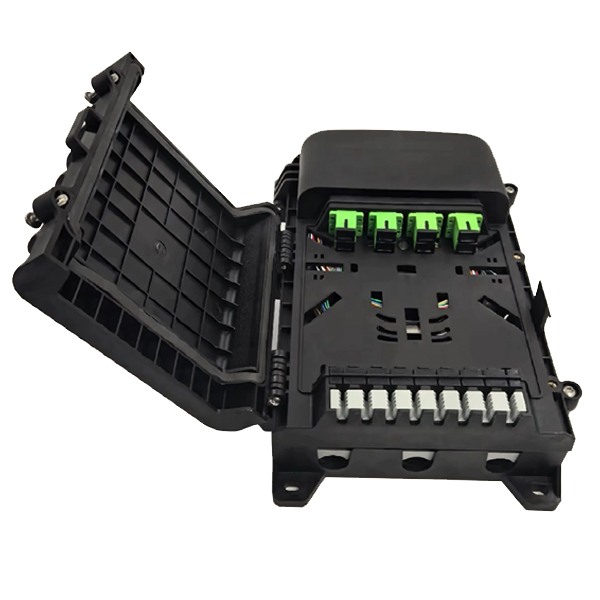

The box features a robust, weather-resistant plastic enclosure (likely UV-stabilized and impact-resistant), suitable for both indoor and outdoor installations. It has a hinged lid design for easy access, with secure fastening mechanisms (visible screws and latches) to ensure protection against dust, moisture, and physical damage.

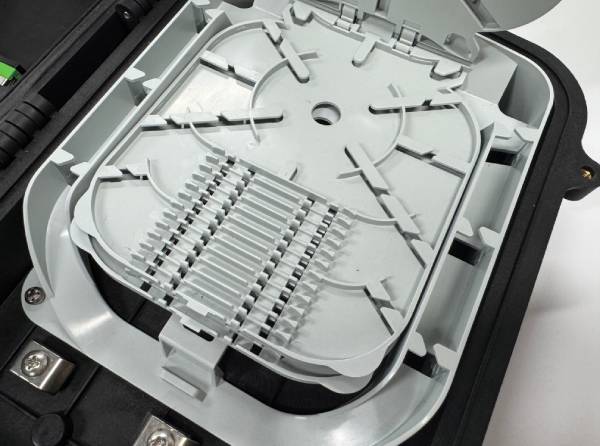

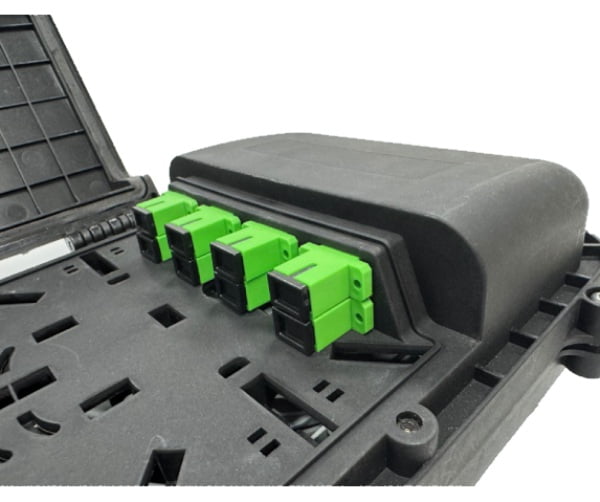

There are green LC fiber adapters (a common small-form-factor connector for high-density applications), enabling quick and reliable fiber connections. It also has splice trays where fiber splicing and storage occur. These trays have grooves and slots to neatly organize fiber optic cables, manage slack, and protect splices (either fusion or mechanical) from stress.

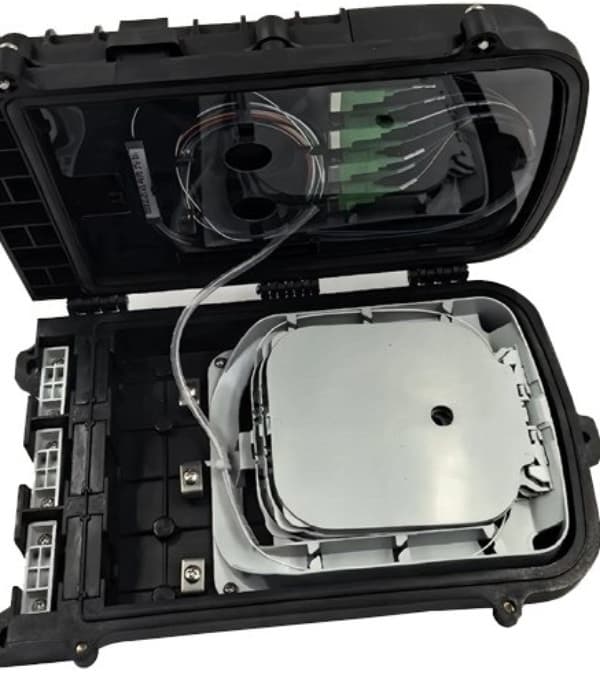

Inside, there are 3 splicing trays in the lower section, used for organizing and protecting optical fibers. Metal screws and fixtures are present to secure the internal parts. The 1×8 splitters are suitable for this box here.
Multiple ports at the bottom/side of the box allow for organized ingress and egress of fiber cables, supporting both drop cables (connecting to end-users) and feeder cables (connecting to the network backbone).
These trays have modular design with various ridges and compartments, which helps in managing different parts of the fiber optic cables and components efficiently, facilitating easy access and maintenance. The design supports multiple fibers, catering to different FTTH deployment scales—from small residential clusters to larger multi-dwelling units.
