Description

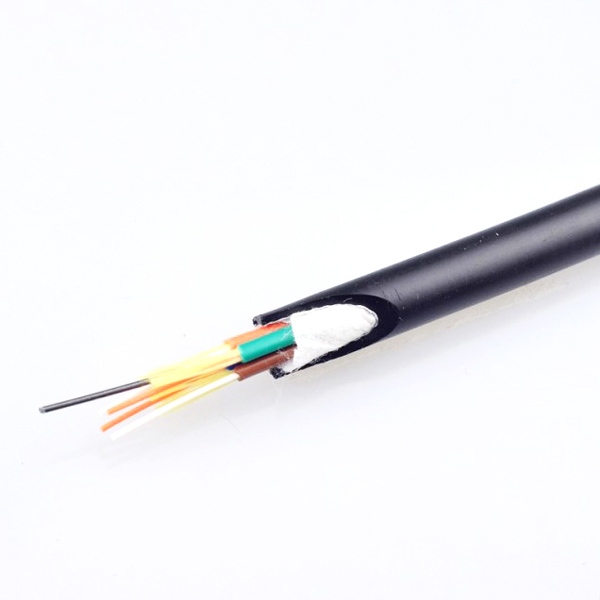

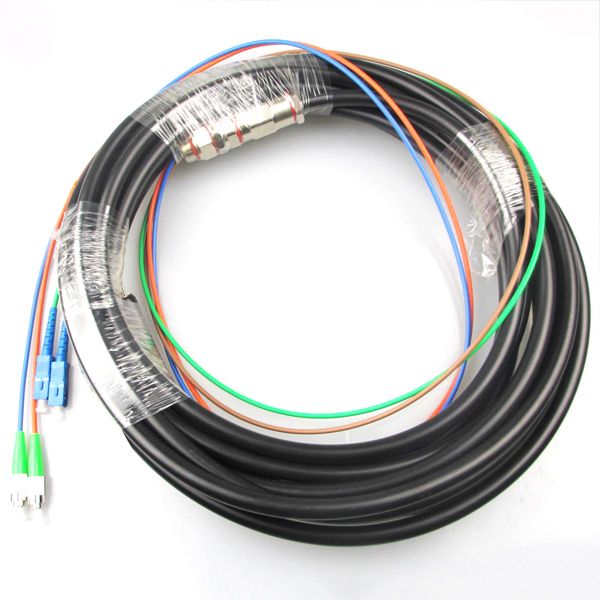

Waterproof drop cord are widely used in data transmission network, typical types are with 2 fiber cores, 4 fiber cores or 8, 12 fiber cores. By adopting the special structure cables and connectors, these fiber cable assemblies are widely used in CATV and other applications.
Features
- Fiber core: 2, 4, 6, 8,12 optional
- Waterproof features & reliable performance
- Pull & erosion resistance, good grounding
- Low insertion loss, high return loss, excellent exchange-ability, high stability
- The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.
- Various connectors can be use SC FC LC ST, etc.
Specification
| Parameter | Unit | Water-proof fiber Patch cord | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥35 |
| Operating wavelength | nm | 1310, 1550 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | ℃ | -40~75 | |||
| Storage temperature | ℃ | -45~85 | |||
| Inner Cord diameter | mm | φ3.0,φ2.0,φ0.9 | |||
| Fiber cores | Cores | 4, 6, 8, 12, 24, … fibers | |||
| Applicable connector | FC, SC, ST, MU, LC | ||||
| Waterproof connector material | Aluminum or copper optional. | ||||
