Telecom SC to LC Single Mode Fiber Patch Cable Supplier

Description

SC To LC Single Mode Fiber Patch Cable Features

LC SC connectors are both rectangular plastic connectors, easy to plug in and out;
Using precision formed high precise ceramic ferrule, SC 2.5mm, LC 1.25mm;
Material meets UL 94V-0 standard;
Compliant with RoHS, TIA, EIA, Telcodia, and IEC standards,CE certified
3-7days fast delivery, low loss

SC To LC Single Mode Fiber Patch Cable Specification

Connector type	SC/UPC to LC/UPC
Cable diameter	￠3.0mm
Fiber type	Single mode fiber 9/125um G.652D
Fiber count	2 cores
Insertion loss	≤0.30dB, typical ≤0.1dB
Return loss	≥50dB
Working temperature	-40℃to +75℃
Mechanical performance	Insertion and removal times: 500	<0.2dB change
Vibration test	Frequency range: 10-55Hz, 0.75 amplitude	<0.2dB change
Drop test	Fall height; 1m, number of drops: 5 times	<0.2dB change
Cable tension	90N	<0.2dB change
Optical cable torsion	2.0-3.0 diameter optical cable: 1.5kg-2.5kg	<0.2dB change
High and low temperature test	-40 ℃ to+75 ℃, 12 cycles	<0.2dB change
Low temperature test	-40 ℃ for 96 hours	<0.2dB change
High temperature test	+70 ℃ for 96 hours	<0.2dB change

SC To LC Single Mode Fiber Patch Cable Details

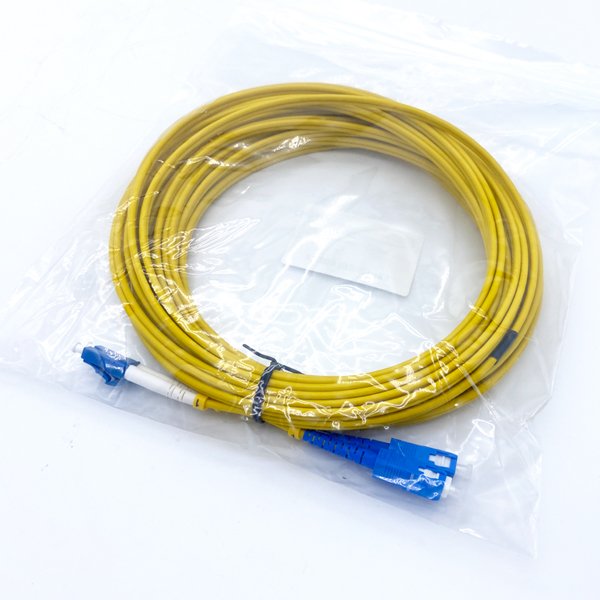

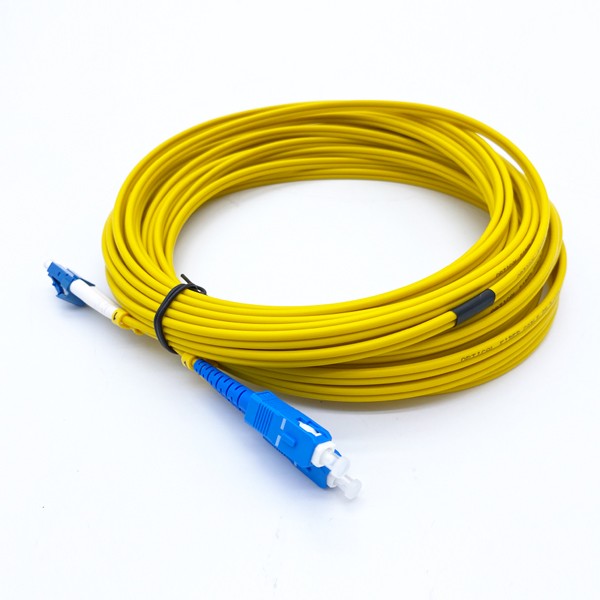

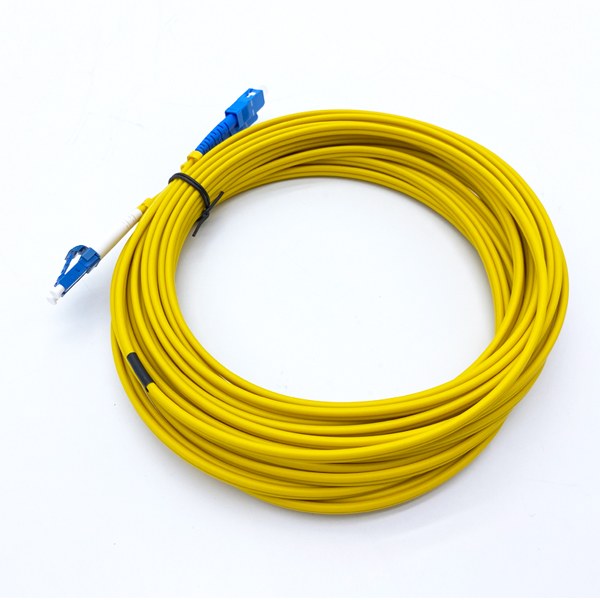

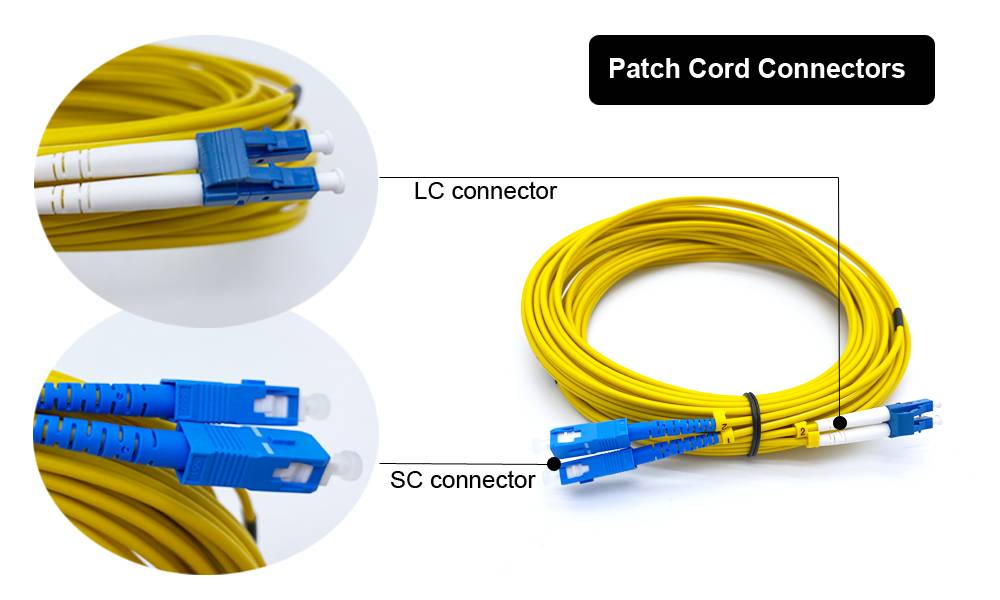

This patch cord is use 2 different connectors at both side, one is LC connector ,the other is SC connetors. LC connector singlemode 3.0mm is blue color with white boot, white dust cap. While SC connector single mode is blue color, blue long boot and white dust cap. You can custom the connector color into green with APC polishing. We will wrap the cables near the boot with a cable tie to hold them in tight, not loose to ensure stable optical performance.

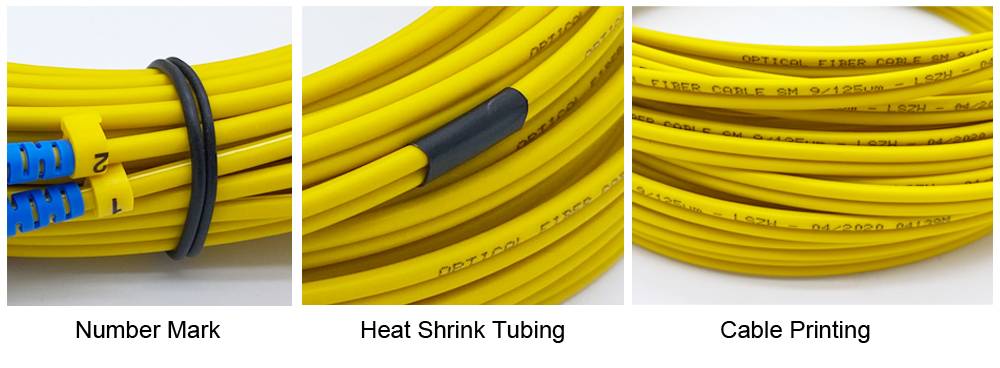

For LC to SC fiber patch cable single mode duplex, 2 SMF fibers are placed in two parallel 3mm single-core cables, with a plastic neck in the middle. When we need to terminate the connector, we manually tear the two fibers apart and put on the corresponding connector parts, then assemble and grind them. To prevent the tearing end from further tearing due to external forces, we will use a piece of heat shrink tubing about 2cm long for protection and heat-melt it into shape.

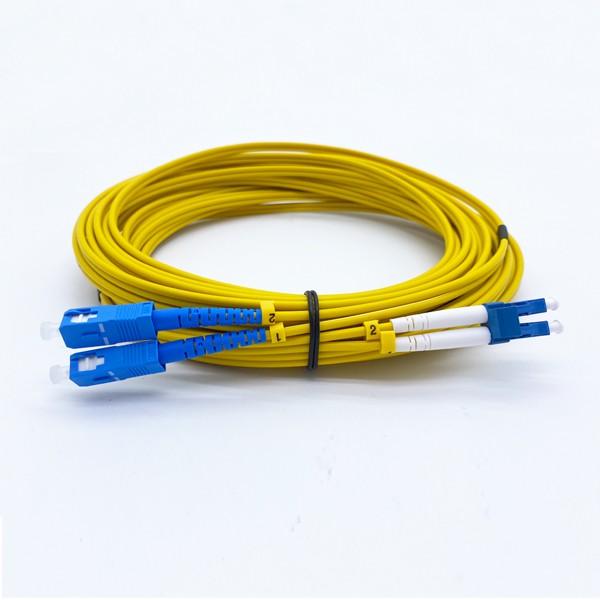

Meanhile, in order to distingush the both connectors at the same side for duplex patch cord, we will put on number ring 1 and 2 or A and B, then you can plug the connectors into fiber optic equipment with the right sequence.

And on the outer sheath of the optical cable, there will be optical cable detail printed every 1 meter to facilitate customer identification. You can custom your company name on it too, it is recommended to put it at the front of all text.

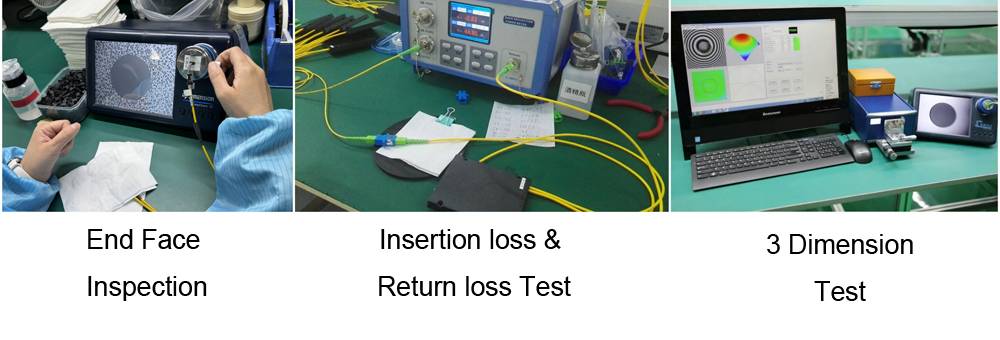

Yingda implements strict patch cord and pigtail testing standards, and can only be packaged and shipped after the final data is OK. The three most important testing instruments in the entire production process are: end face tester, insertion loss and return loss tester, and 3D interferometer. For more details, please refer to articles as below:
