FTTH Terminal Connection SC LC Single Mode Patch Cord

Description

SC LC Single Mode Patch Cord Features

LC SC connectors are both rectangular plastic connectors, easy to plug in and out;
Using precision formed high precise ceramic ferrule, SC 2.5mm, LC 1.25mm;
Material meets UL 94V-0 standard;
Compliant with RoHS, TIA, EIA, Telcodia, and IEC standards,CE certified
3-7days fast delivery, low loss

SC LC Single Mode Patch Cord Specification

Connector type	SC/UPC to LC/UPC
Cable diameter	￠3.0mm
Fiber type	Single mode fiber 9/125um G.652D
Fiber count	2 cores

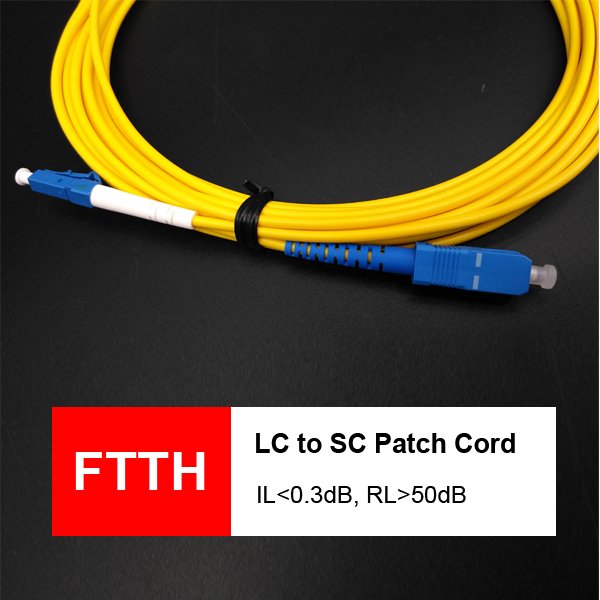

Insertion loss	≤0.30dB, typical ≤0.1dB
Return loss	≥50dB
Working temperature	-40℃to +75℃
Mechanical performance	Insertion and removal times: 500	<0.2dB change
Vibration test	Frequency range: 10-55Hz, 0.75 amplitude	<0.2dB change
Drop test	Fall height; 1m, number of drops: 5 times	<0.2dB change
Cable tension	90N	<0.2dB change
Optical cable torsion	2.0-3.0 diameter optical cable: 1.5kg-2.5kg	<0.2dB change
High and low temperature test	-40 ℃ to+75 ℃, 12 cycles	<0.2dB change
Low temperature test	-40 ℃ for 96 hours	<0.2dB change
High temperature test	+70 ℃ for 96 hours	<0.2dB change

SC LC Single Mode Patch Cord Details

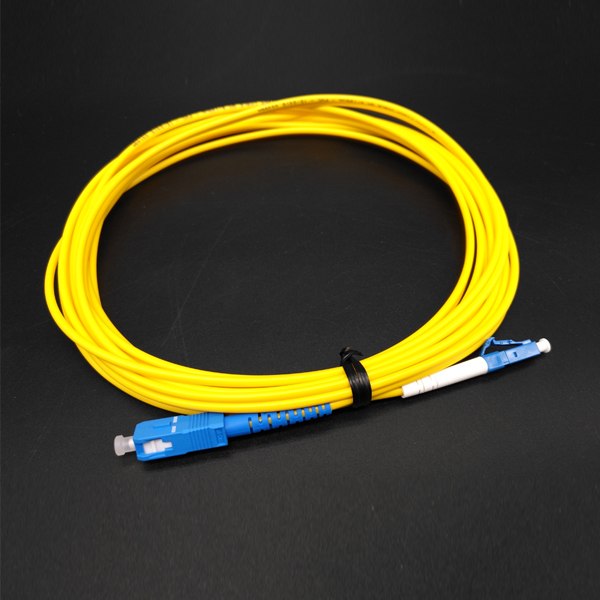

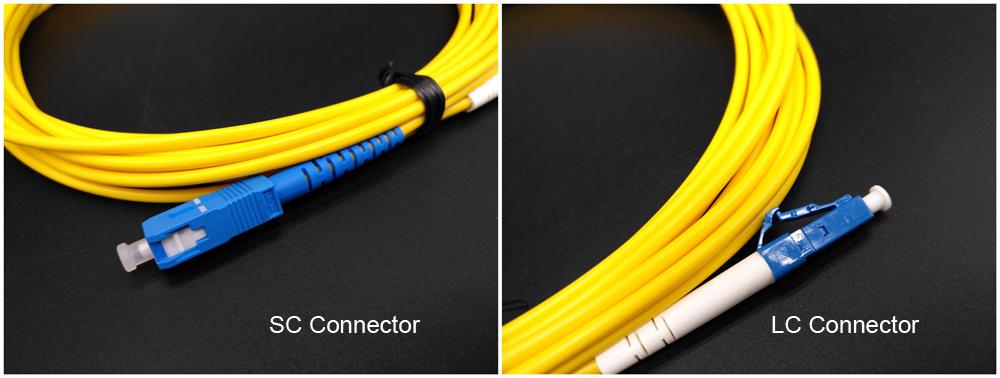

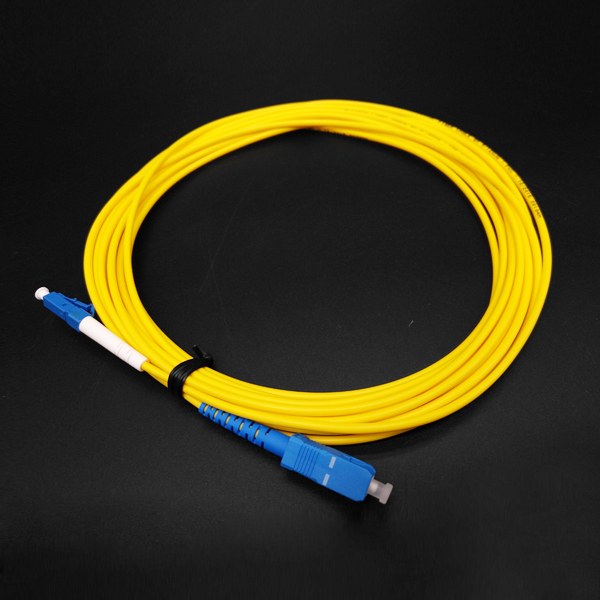

This patch cord is use 2 different connectors at both side, one is LC connector ,the other is SC connetors. LC connector sm 3mm is blue color with white boot, white dust cap. While SC connector sm is blue color, blue boot and white dust cap. You can custom the connector color into green for APC ferrule.

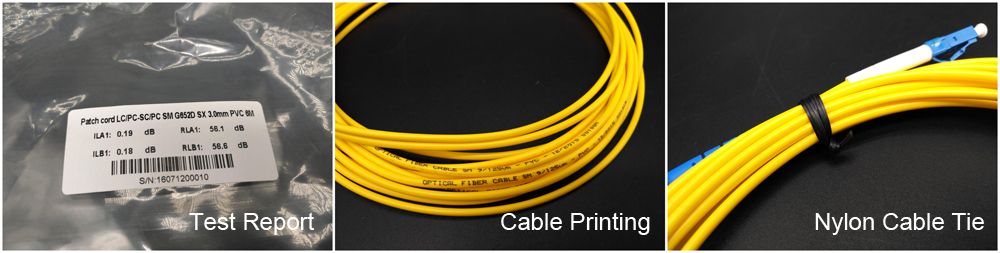

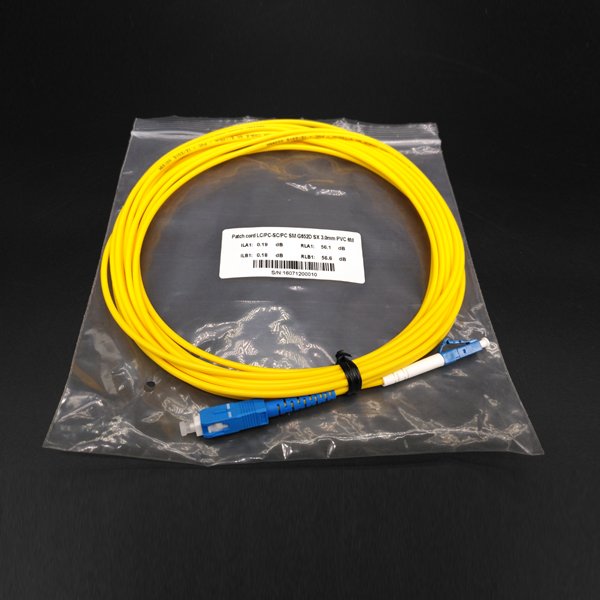

Yingda provide plastic bag to pack every piece of patch cord lc sc sm patch cord, but you can ask to 10pcs/pack ,20pcs/pack or 100pcs/pack for direct use on site construction, no need to resell. The sticker on the pack will describe the product in details, the specification, and the insertion loss and return loss of each connectcors, with A B mark for duplex connectors. And there is serial number to trace the products after selling if there is any problems occured. We provide 1 year quality assurance.

And on the outer sheath of the optical cable, there will be optical cable detail printed every 1 meter to facilitate customer identification. You can custom your company name on it too, it is recommended to put it at the front of all text.

We will wrap the cables near the boot with a cable tie to hold them in tight, not loose to ensure stable optical performance.

Yingda implements strict patch cord and pigtail testing standards, and can only be packaged and shipped after the final data is OK. The three most important testing instruments in the entire production process are: end face tester, insertion loss and return loss tester, and 3D interferometer. For more details, please refer to articles as below:
