Description
LC LC Pigtail Features
- High repeatability and high return loss
- High stability and good interchangeability
- Low insertion loss and high reliability
- Three types of fiber end faces: PC, UPC, APC
- The entire series of optical fibers can be used: multi-mode (50/125, 62.5/125, OM3, OM4, OM5), single-mode (G.652, G.655, G.657, etc.)
LC LC Pigtail Application
- Fiber Optic Telecommunications
- LAN (Local Area Network
- FTTH (Fiber To The Home)
- CATV&CCTV
- High speed transmission systems
- Fiber optic sense
LC LC Pigtail Specification
| Item | Value |
| Connector | LC |
| Operating wavelength | 1260-1650nm |
| Fiber type | OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex Φ0.9mm |
| Polish manner | PC |
| Cable color | orange |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multi mode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
LC LC Pigtail Details
Yingda LC LC pigtail multimode OM1 OM2 is orange color fiber optic cable, and beige LC connector with white dust cap and short boot.

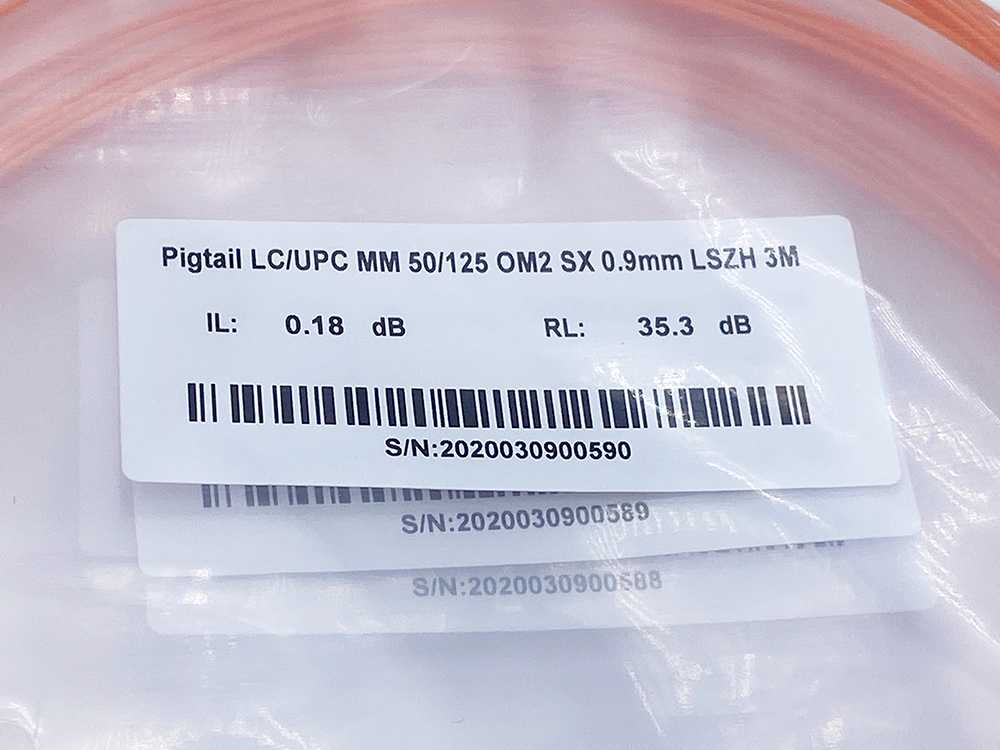

End user can find the product details in the test data sticker on the individual plastic bag, there are product description, insertion loss, return loss and serial number. If there is anything wrong, please contact us immediately, we will be always here for you 24hours 7days a week.
All the pigtails fo will be well protected with plastic bags and then pack in carton boxes with about 1500-2000pcs per box, 100% brand new material, telecom standard, ROHS, CE certified.
