Description
Fiber Cable Pigtail Features
- High repeatability and high return loss
- High stability and good interchangeability
- Low insertion loss and high reliability
- Three types of fiber end faces: PC, UPC, APC
- The entire series of optical fibers can be used: multi-mode (50/125, 62.5/125, OM3, OM4, OM5), single-mode (G.652, G.655, G.657, etc.)
Fiber Cable Pigtail Application
- Fiber Optic Telecommunications
- LAN (Local Area Network
- FTTH (Fiber To The Home)
- CATV&CCTV
- High speed transmission systems
- Fiber optic sense
Fiber Cable Pigtail Specification
| Item | Value |
| Connector | LC |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3 |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex Φ0.9mm |
| Polish manner | APC（8°） |
| Cable color | Yellow |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multi mode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |

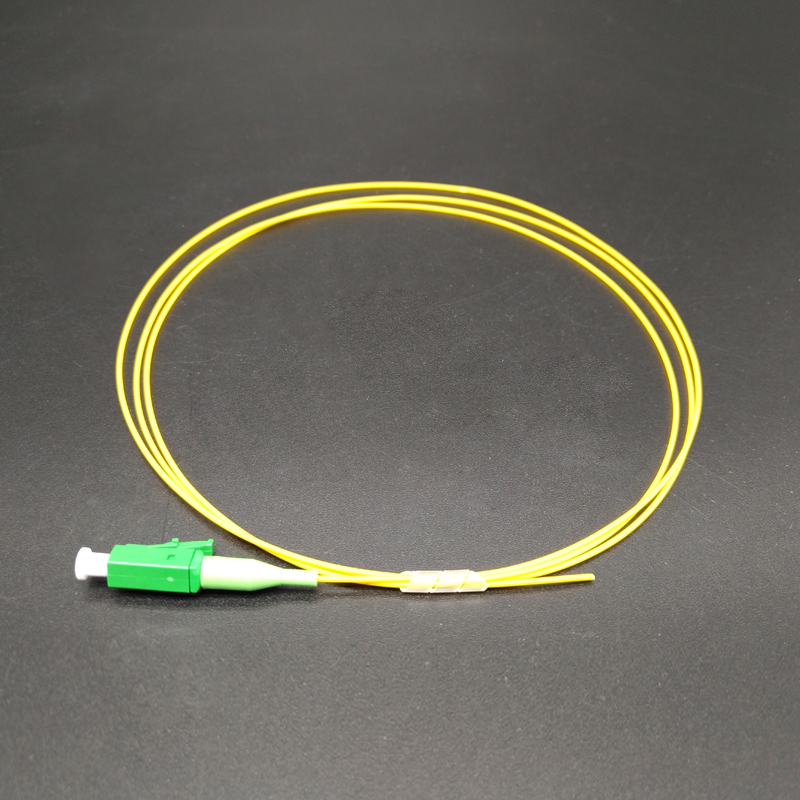

Fiber Cable Pigtail Details

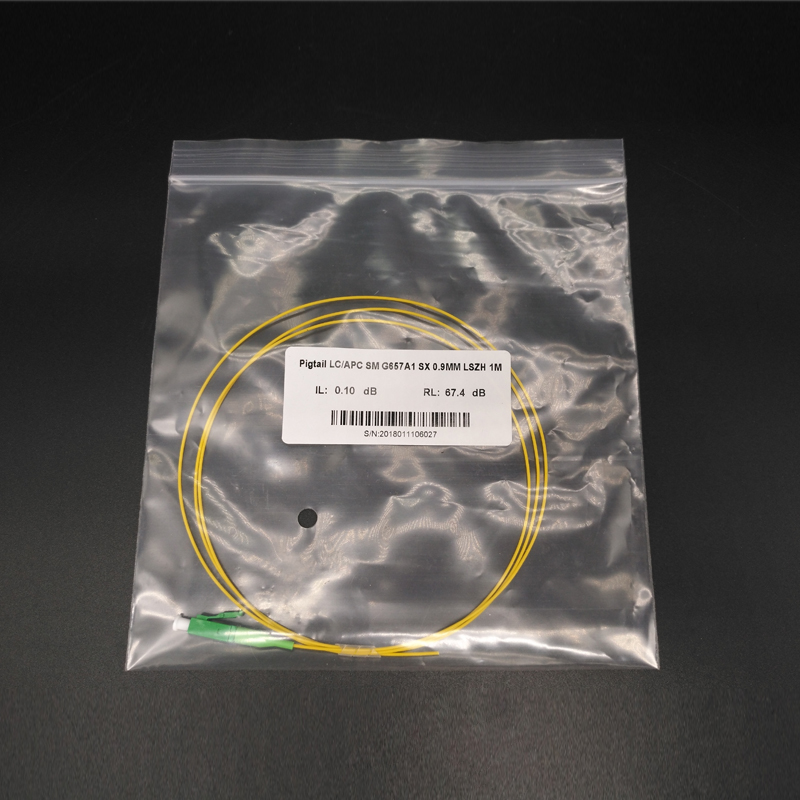

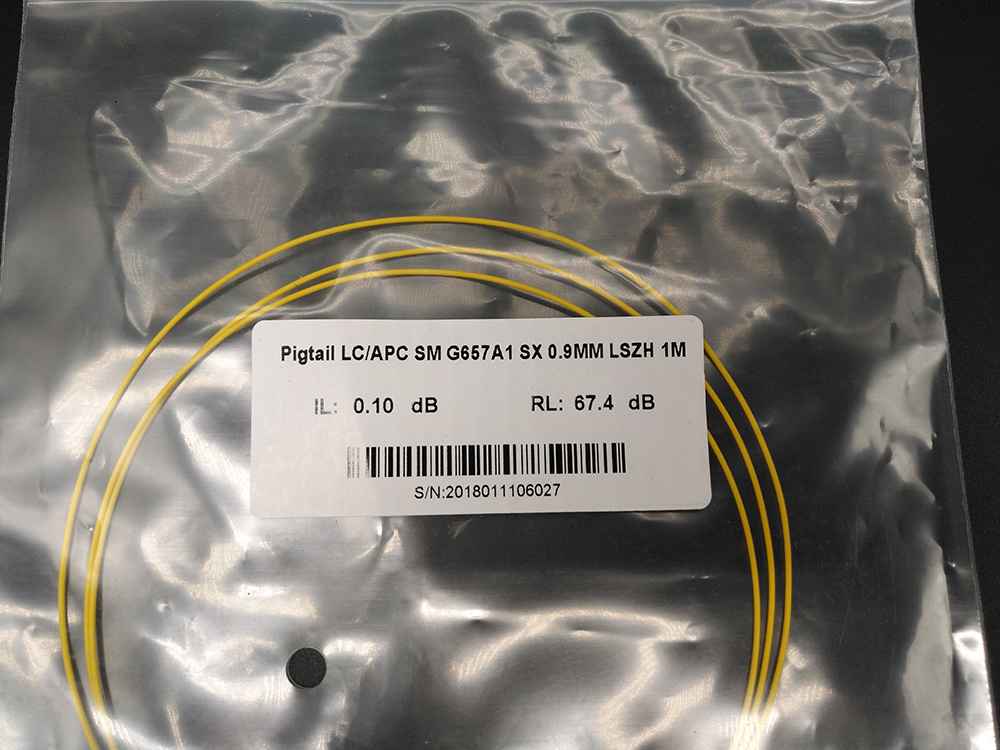

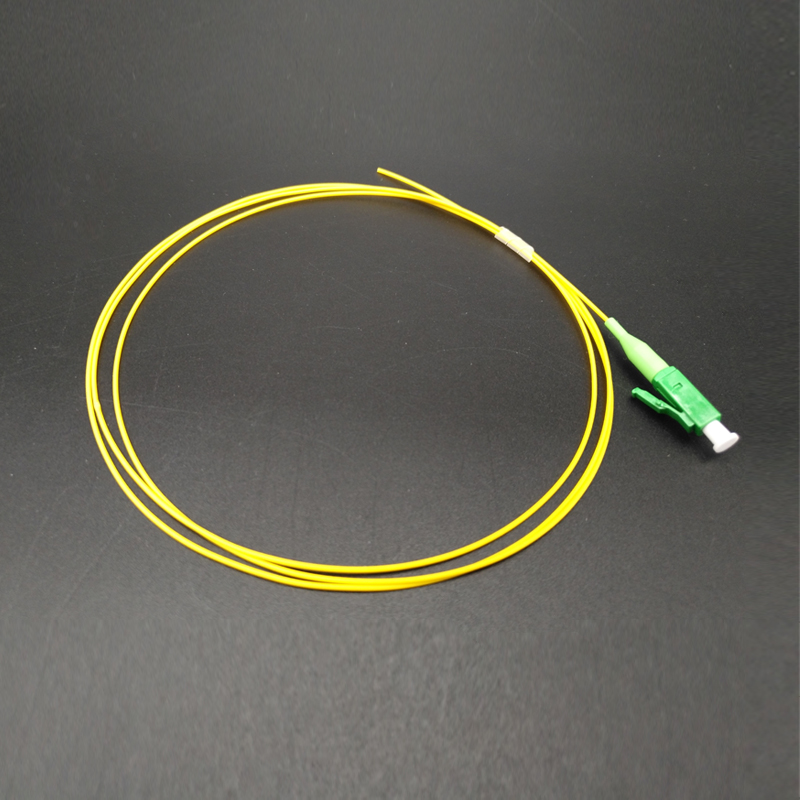

Yingda fiber cable pigtails for single fiber is widly used in fiber access terminal, especally in fiber terminal box, fiber patch panel, or distribution boxes, and every one is telecom standard with low loss <0.3dB, will pack them by plastic bags with test data sheet, and serial number, which is traceability if there is quality problem. So we are open to customers and be confidence with our quality. Please buy it rest assured.

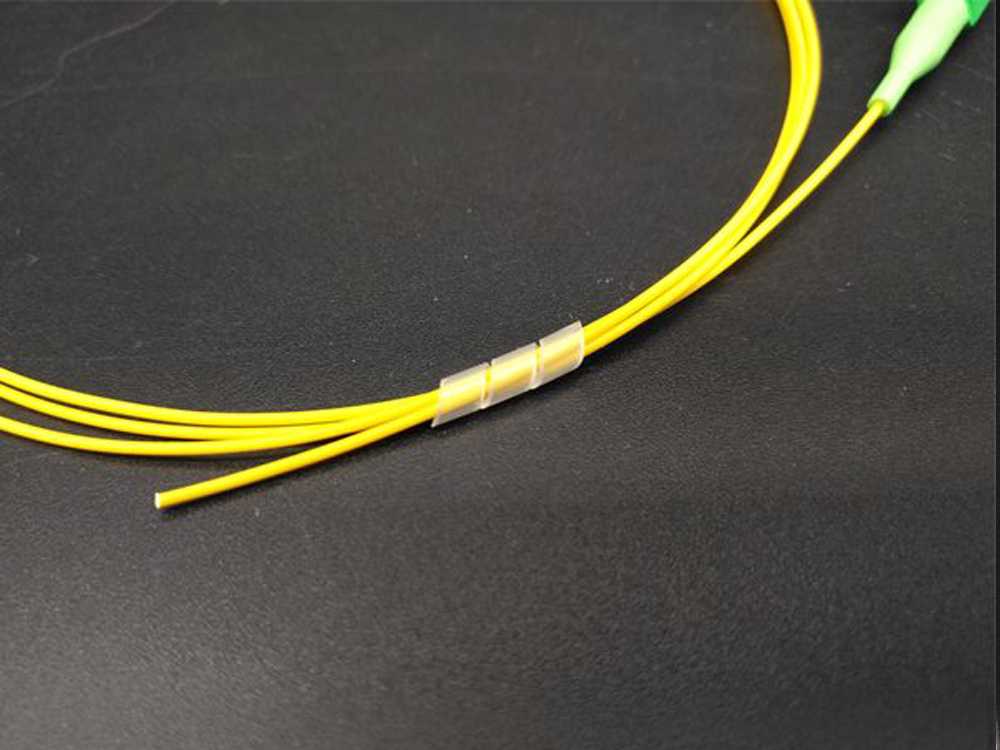

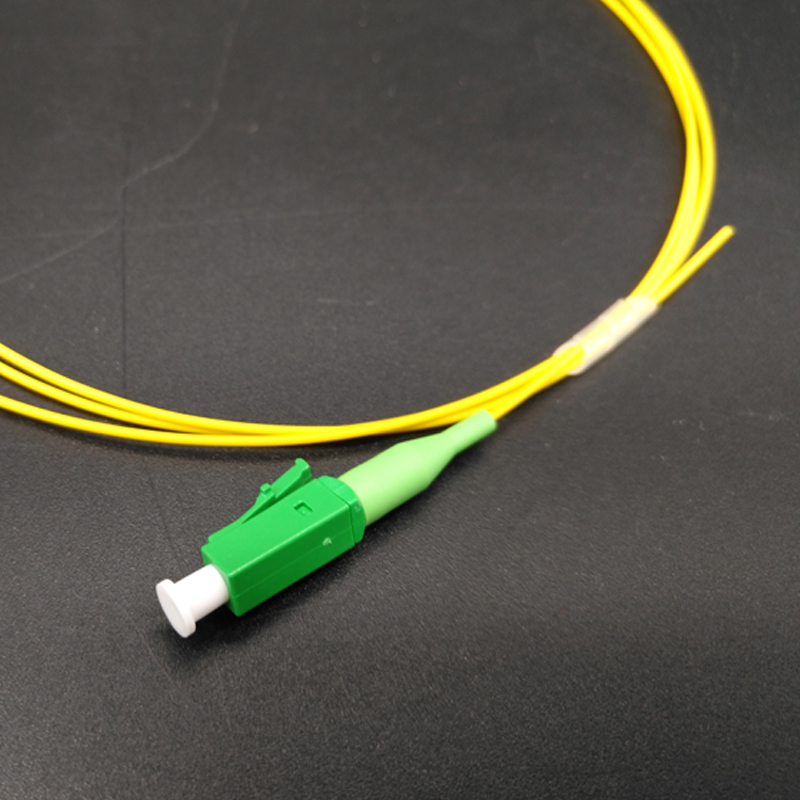

In order to protec the fiber optical pigtails espeically 900um fiber optic cable, it is easy to bend, so we will use a short spiral tube near the boot of the connector to hold in place and ensure reasonable bend radius of the fibers. It is easy to take if on and wear it if you need.
