LC To SC Patch Cord Multimode Cable OM3 10G For Data Center

Description

LC To SC Patch Cord Multimode Features

LC SC connectors are both rectangular plastic connectors, easy to plug in and out;
Using precision formed high precise ceramic ferrule, SC 2.5mm, LC 1.25mm;
Material meets UL 94V-0 standard;
Compliant with RoHS, TIA, EIA, Telcodia, and IEC standards,CE certified
3-7days fast delivery, low loss

LC To SC Patch Cord Multimode Specification

Connector type	LC/PC to SC/PC
Cable diameter	￠3.0mm
Fiber type	multi-mode10g 50/125um
Fiber count	1 core
Insertion loss	≤0.30dB, typical ≤0.1dB
Return loss	≥30dB
Working temperature	-40℃to +75℃
Mechanical performance	Insertion and removal times: 500	<0.2dB change
Vibration test	Frequency range: 10-55Hz, 0.75 amplitude	<0.2dB change
Drop test	Fall height; 1m, number of drops: 5 times	<0.2dB change
Cable tension	90N	<0.2dB change
Optical cable torsion	2.0-3.0 diameter optical cable: 1.5kg-2.5kg	<0.2dB change
High and low temperature test	-40 ℃ to+75 ℃, 12 cycles	<0.2dB change
Low temperature test	-40 ℃ for 96 hours	<0.2dB change
High temperature test	+70 ℃ for 96 hours	<0.2dB change

LC To SC Patch Cord Multimode Details

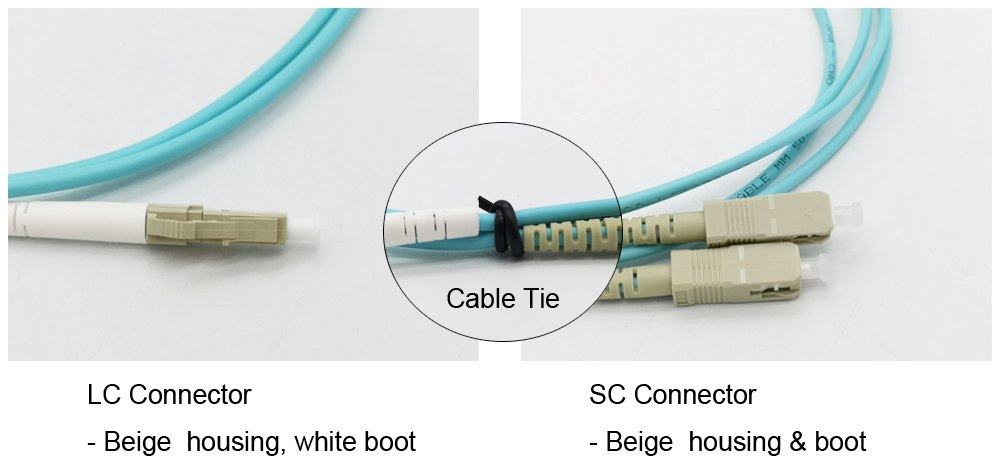

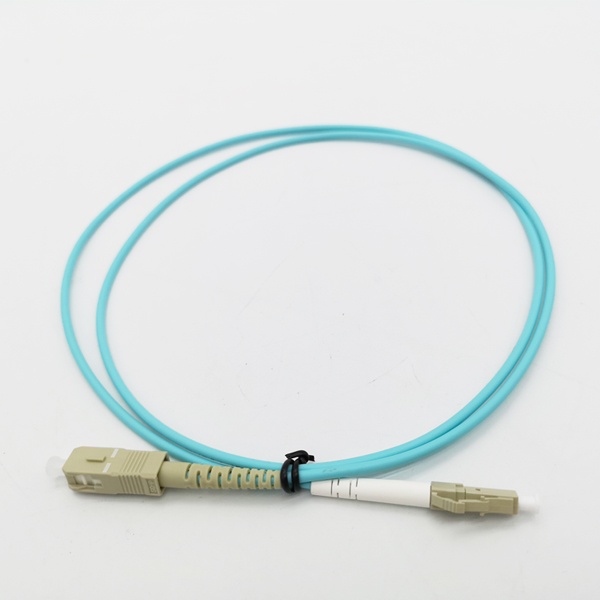

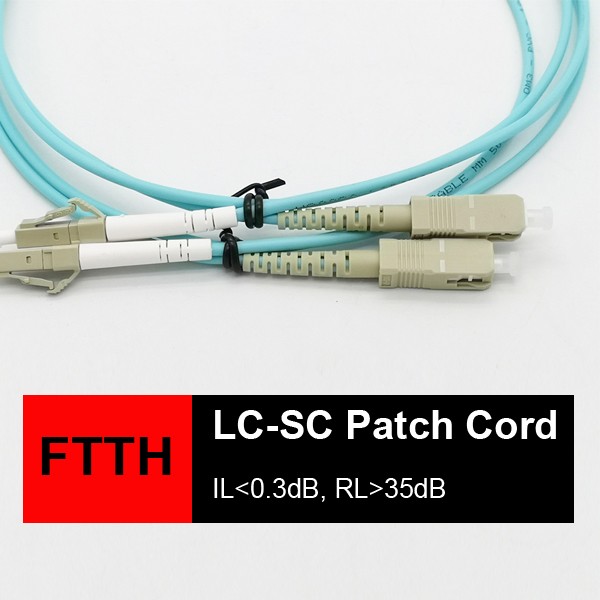

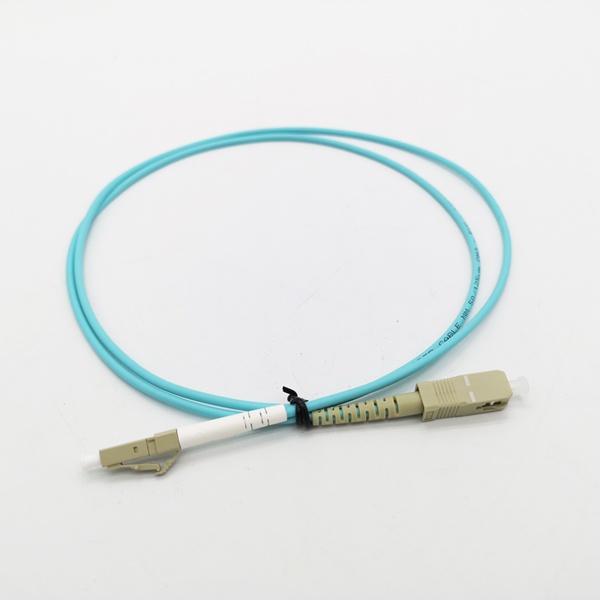

This patch cord is use 2 different connectors at both side, one is LC connector ,the other is SC connetors. LC connector om3 3mm is beige color with white boot, white dust cap. While SC connector om3 is beige color, beige bott and white dust cap. You can custom the connector color into aqua, the same as the cable color OM3. We will wrap the cables near the boot with a cable tie to hold them in tight, not loose to ensure stable optical performance.

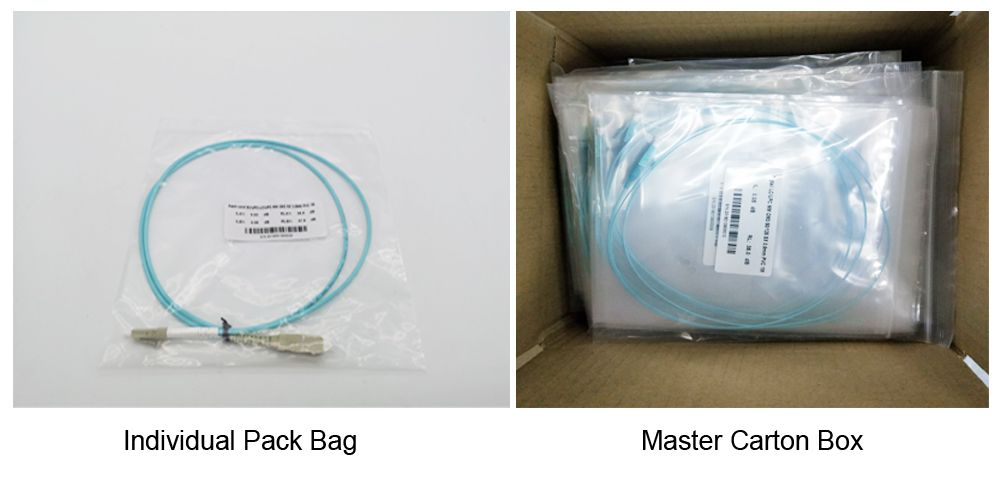

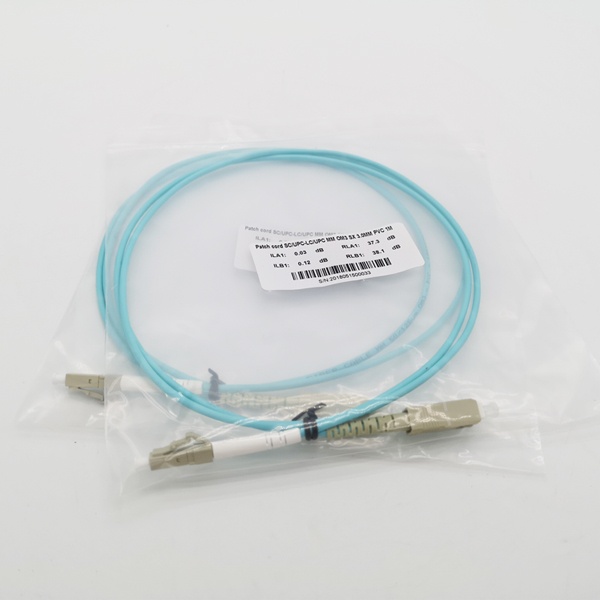

Yingda provide plastic bag to pack every piece of patch cord lc pc sc pc, but you can ask to 10pcs/pack ,2pcs/pack or 100pcs/pack for direct use on site construction, no need to resell. Which can save a lot of cost on package and less weight on freight cost. Furthermore, after IL RL test, we will record the test data and paster a sticker on the plastic bag,it is neutral package standards. If you other speical request like print your logo on the sticker or package bag, please inform us in advance. We can do OEM ODM for you.

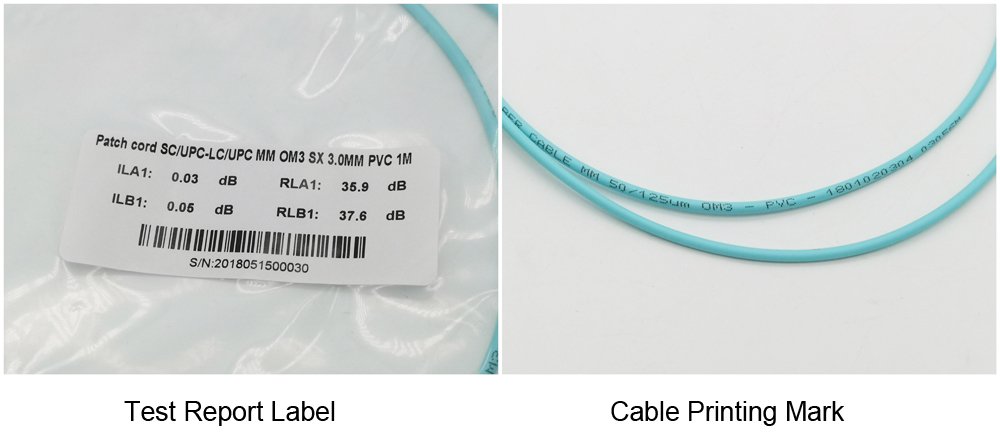

The sticker on the pack will describe the product in details, the specification, and the insertion loss and return loss of each connectcors, with A B mark for duplex connectors. And there is serial number to trace the products after selling if there is any problems occured. We provide 1 year quality assurance.

And on the outer sheath of the optical cable, there will be optical cable detail printed every 1 meter to facilitate customer identification. You can custom your company name on it too, it is recommended to put it at the front of all text.

Yingda implements strict patch cord and pigtail testing standards, and can only be packaged and shipped after the final data is OK. The three most important testing instruments in the entire production process are: end face tester, insertion loss and return loss tester, and 3D interferometer. For more details, please refer to articles as below:
