Quality Amoured LC SC Single Mode Fiber Patch Cable

Description

LC SC Single Mode Fiber Patch Cable Features

LC SC connectors are both rectangular plastic connectors, easy to plug in and out;
Using precision formed high precise ceramic ferrule, SC 2.5mm, LC 1.25mm;
Material meets UL 94V-0 standard;
Compliant with RoHS, TIA, EIA, Telcodia, and IEC standards,CE certified
3-7days fast delivery, low loss

LC SC Single Mode Fiber Patch Cable Specification

Connector type	SC/UPC to LC/UPC
Cable diameter	￠3.0mm
Fiber type	Single mode fiber 9/125um G.652D
Fiber count	2 cores
Insertion loss	≤0.30dB, typical ≤0.1dB
Return loss	≥50dB
Working temperature	-40℃to +75℃
Mechanical performance	Insertion and removal times: 500	<0.2dB change
Vibration test	Frequency range: 10-55Hz, 0.75 amplitude	<0.2dB change
Drop test	Fall height; 1m, number of drops: 5 times	<0.2dB change
Cable tension	90N	<0.2dB change
Optical cable torsion	2.0-3.0 diameter optical cable: 1.5kg-2.5kg	<0.2dB change
High and low temperature test	-40 ℃ to+75 ℃, 12 cycles	<0.2dB change
Low temperature test	-40 ℃ for 96 hours	<0.2dB change
High temperature test	+70 ℃ for 96 hours	<0.2dB change

LC SC Single Mode Fiber Patch Cable Details

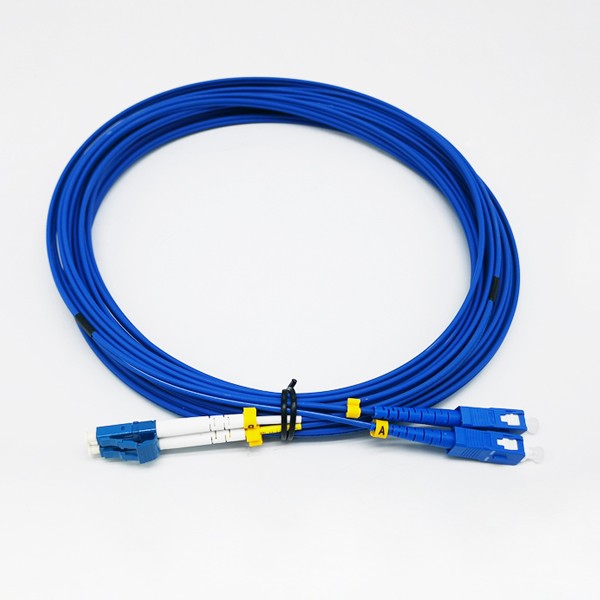

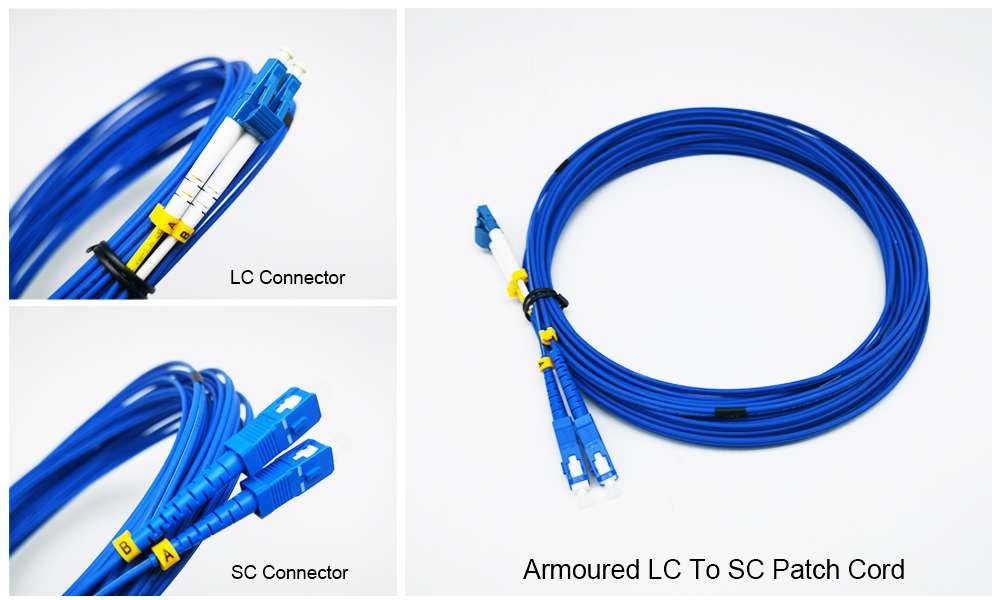

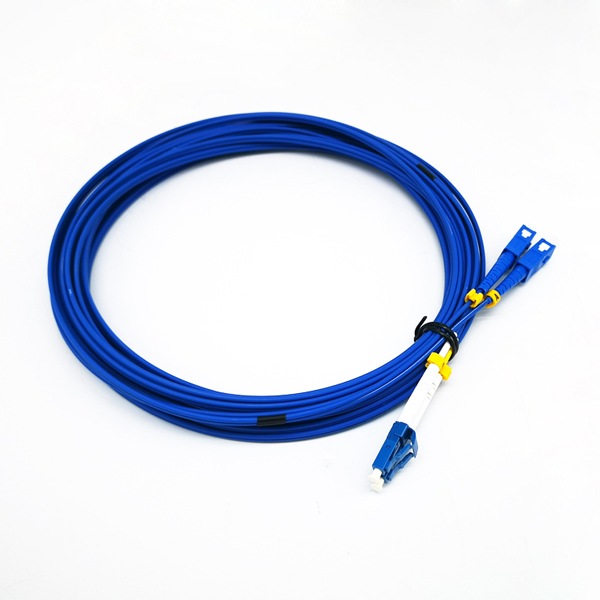

This LC to SC fiber patch cable single mode duplex is pre-terminated armored cable with 2 different connectors at both side, one is LC connector, the other is SC connetors. LC connector sm 3mm is blue color with white boot, white dust cap. While SC connector sm is blue color, blue boot and white dust cap. You can custom the connector color into green for APC ferrule. And the Amored cable standard color is blue for single mode fiber, and beige color for multimode cable. You can custom jacket color into black, red, etc.

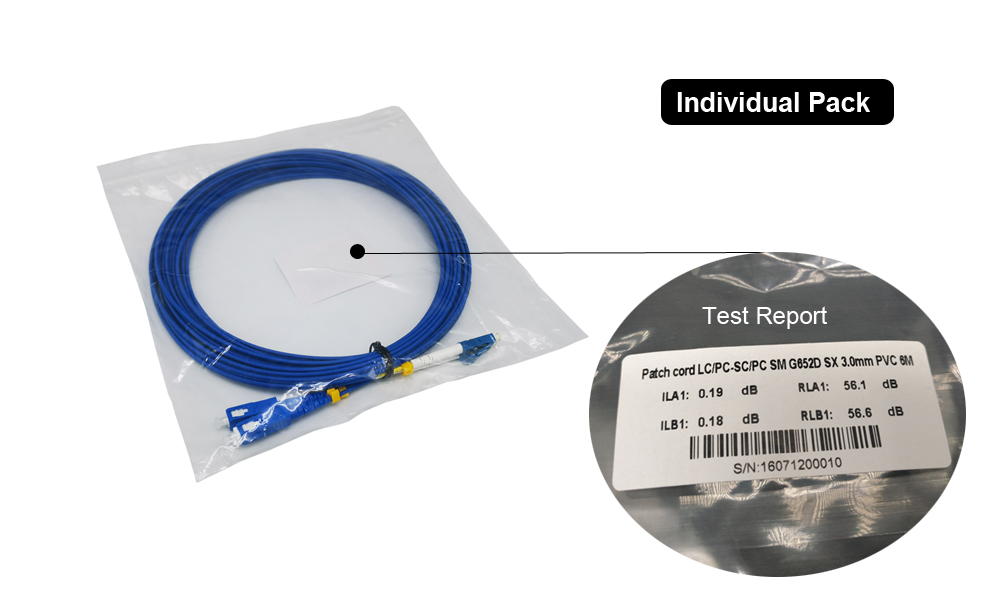

Yingda provide plastic bag to pack every piece of patch cord lc sc sm patch cord, but you can ask to 10pcs/pack ,20pcs/pack or 100pcs/pack for direct use on site construction, no need to resell. The sticker on the pack will describe the product in details, the specification, and the insertion loss and return loss of each connectcors, with A B mark for duplex connectors. And there is serial number to trace the products after selling if there is any problems occured. We provide 1 year quality assurance.

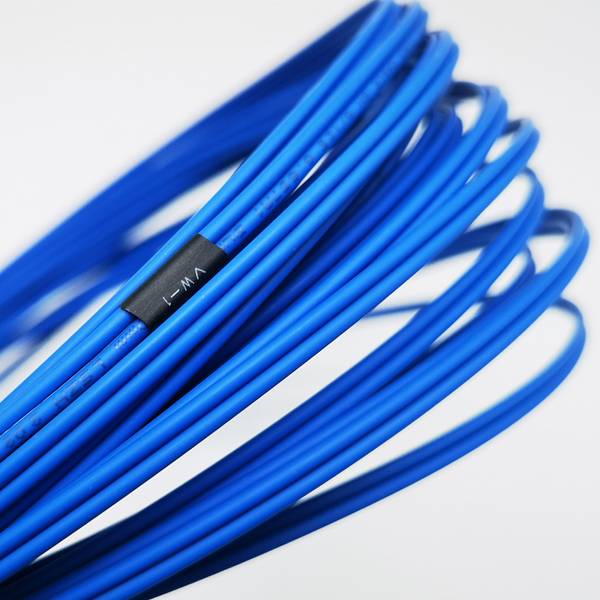

And on the outer sheath of the optical cable, there will be cable printing every 1 meter to facilitate customer identification. You can custom your company name on it too, it is recommended to put it at the front of all text.

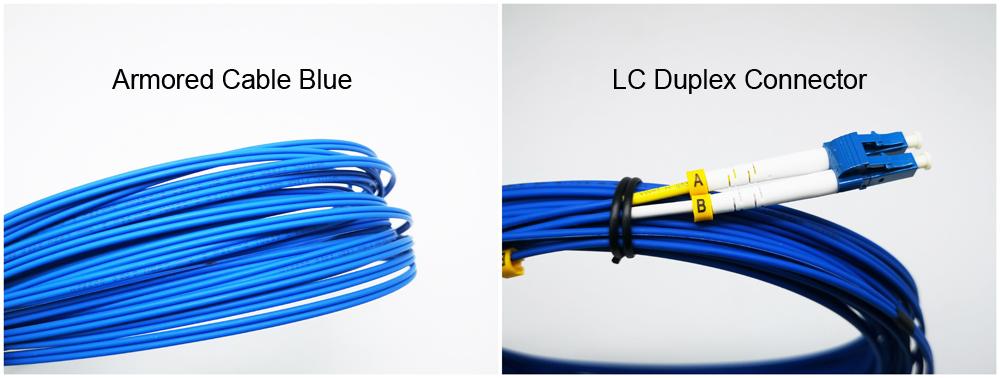

We will wrap the cables near the boot with a cable tie to hold them in tight, not loose to ensure stable optical performance. For better fiber management, we will put on A B mark near the connector tail for every duplex patch cords.

Yingda implements strict patch cord and pigtail testing standards, and can only be packaged and shipped after the final data is OK. The three most important testing instruments in the entire production process are: end face tester, insertion loss and return loss tester, and 3D interferometer. For more details, please refer to articles as below:
