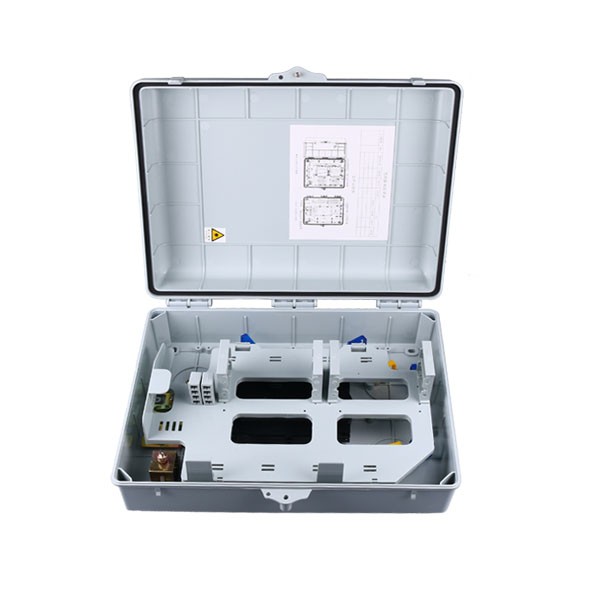

Plastic GPON Splitter Fiber Optic Wall Mount Termination Box, 2 1:16 or 4 1:8 Splitter Modules, 2 Splice Trays For 48 Cores Splicing, 2 Uncut + 4 Round Ports

Description

Fiber Optic Wall Mount Termination Box Features

• 4 Round cable ports, 1mid span in the middle
• Industrial standard user interface SC or LC dupelx
• Made of high impact engineering plastic ABS/PC
• Can accommodate 1×4,1×8 & 1×16 PLC splitter LGX module
• Anti-UV, Ultra violet resistant and rainfall resistant
• Outdoor wall mount or pole mount, IP65 protection level
• Up to 32 FTTH drop cables termination and bring to home

Fiber Optic Wall Mount Termination Box Specification

Fiber Optic Wall Mount Termination Box Standard Accessory

Heat shrink protection sleeve, metl key, round cable port seal,s wall mounting screws, cable clamps, nylon tie, buffer tube, label mark, etc

Fiber Optic Wall Mount Termination Box Product Details

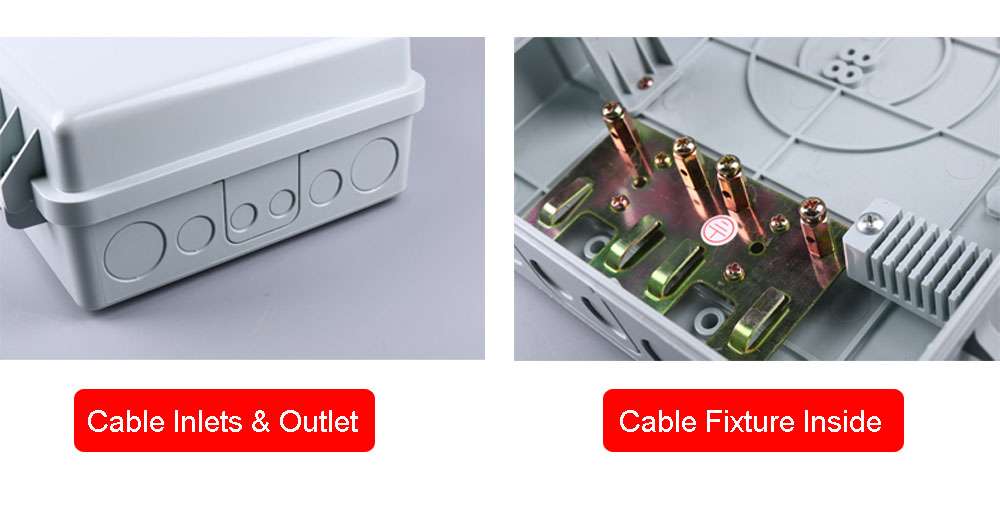

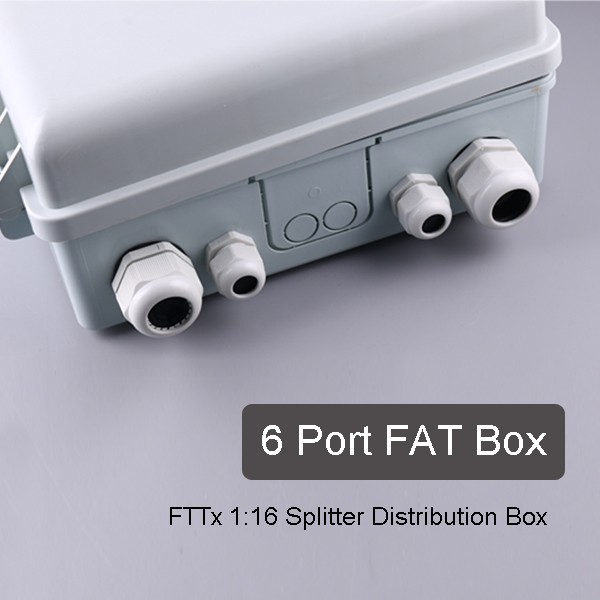

There are total 6 pcs round cable ports for feerder cable go in and out of the fiber nap box, construction worker can fix the cable strength members like aramid yarn, aluminum tape, waterblocking layer, etc on the internal cable fixture sheets, with cable clamps or nylon ties. If need to install underground wire, there is preserved position. On right of the metal sheet, there is one bigger clamps for flexible cable fastening.

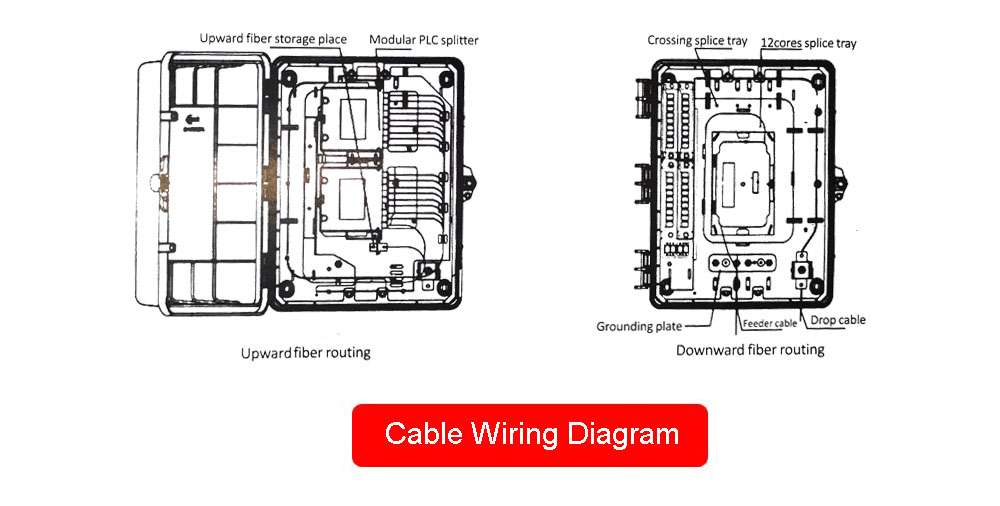

Please bring the feeder cable in and distribution as the below image, this box can use as a fiber breakout box as well. It mix the fiber splicing, management, storage, splitting and distribution in a box, best distribution box price and design from Yingda.

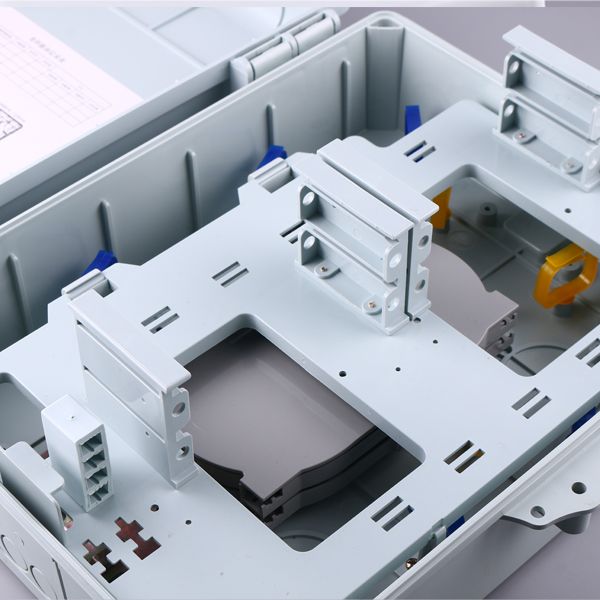

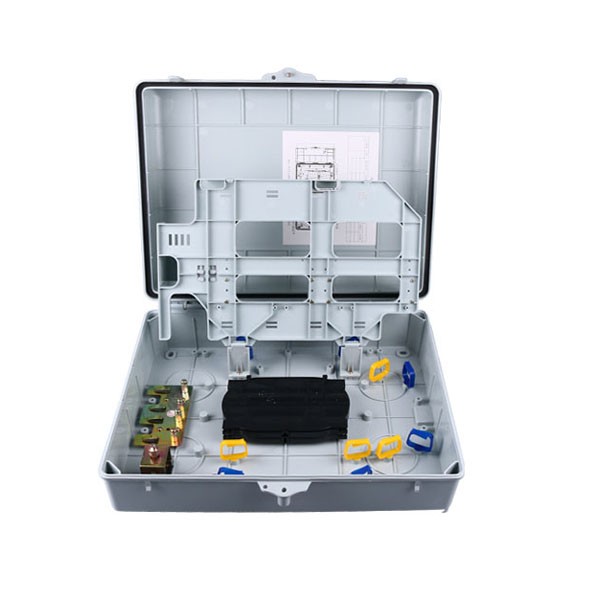

This fiber access terminal box are humanity design with seperate function areas: Except above 1:32 cassette modules, we can also change the slots into 2pcs 1:16 splitter modules instead. Under the rotate plate, on the bottom of the nap box, there is large space to install 1 ~2 pcs splice trays. And we will configure with several fiber optic cable management rods on the bottom.

This fiber atb box is closed with steel rod and 1 buckles to hold them tightly, which is IP65 waterproof all round the internal of cover to ensure the sealing. No special key, can not open the FAT box, this can help ensure the optical performance after long time usage.
