OTB-16C FAT box fiber optic are widedly used in GPON fiber access terminal point, it provides a high density wall mounted solution for next generation, can maximim manage 16 fibers termination in a limited space. Mounting on electronic poles is optional. Yingda support assembly optical pigtails, sc adapters, or sc lgx splitters in our factory for you to save your installation time and cost.
| Model | OTB-16C |
| Max. Plc splitter | 1pc 1:16 or 1:8 LGX Box PLC Splitter |
| Dimension (W*D*H) | 325*265*120mm |
| Max. Capacity | 24 cores, 1 splice tray |
| Cable ports | 4 round port, 1 mid span |
| Cable diameter | 2: Φ25mm,2:Φ20mm,2:Φ15mm |
| Color | Gray |
| Material | PC/ABS |
| Waterproof grade | IP65 |
Heat shrink protection sleeve, metl key, round cable port seal,s wall mounting screws, cable clamps, nylon tie, buffer tube, label mark, etc

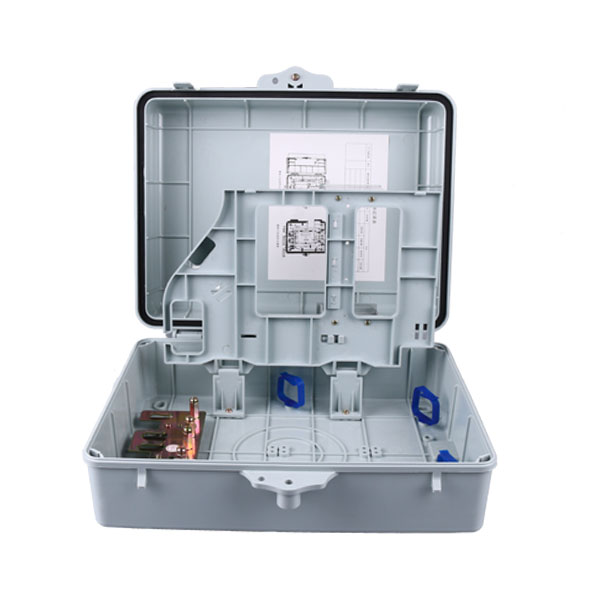

There are total 6 pcs round cable ports for feerder cable go in and out of the fiber nap box, construction worker can fix the cable strength members like aramid yarn, aluminum tape, waterblocking layer, etc on the internal cable fixture sheets, with cable clamps or nylon ties. If need to install underground wire, there is preserved position. On right of the metal sheet, there is one bigger clamps for flexible cable fastening.

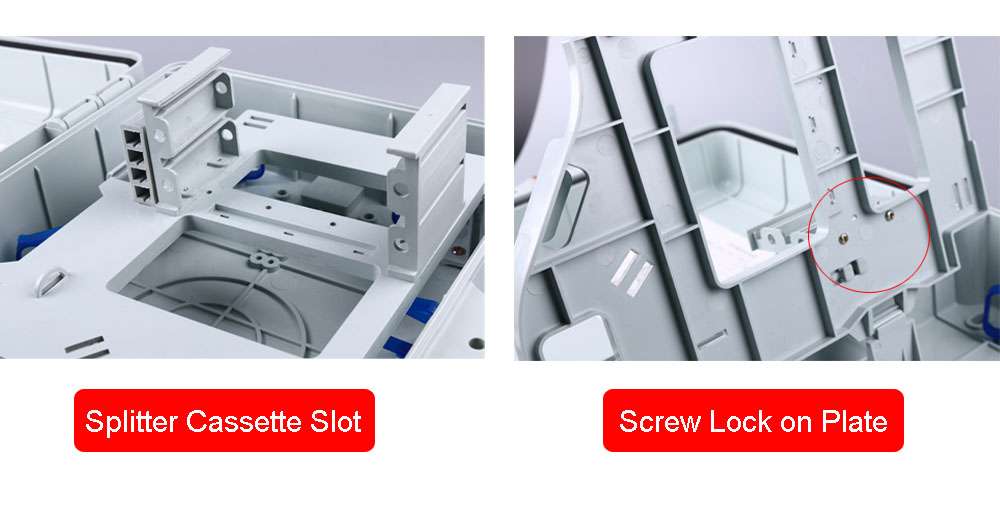

The 1×16 fiber splitter brackets are fixed on the plastic rotate plate by screws, and can be taken off to install adapter bracket instead for pigtail and adapter connection.

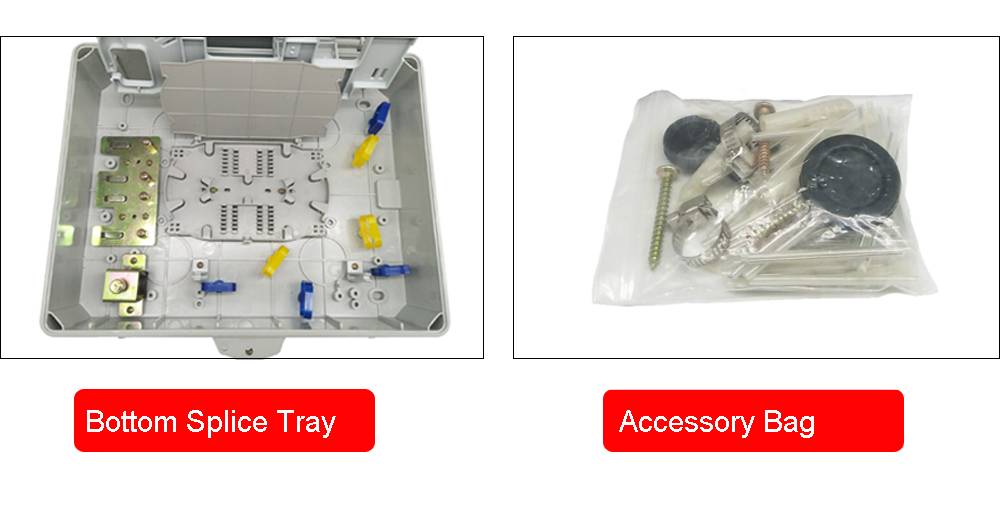

The fiber optic cble splicing, storage, and wiring in the bottom of the box with large space and reasonable bend radius, no bother the splitting, or distribution on upper layer.

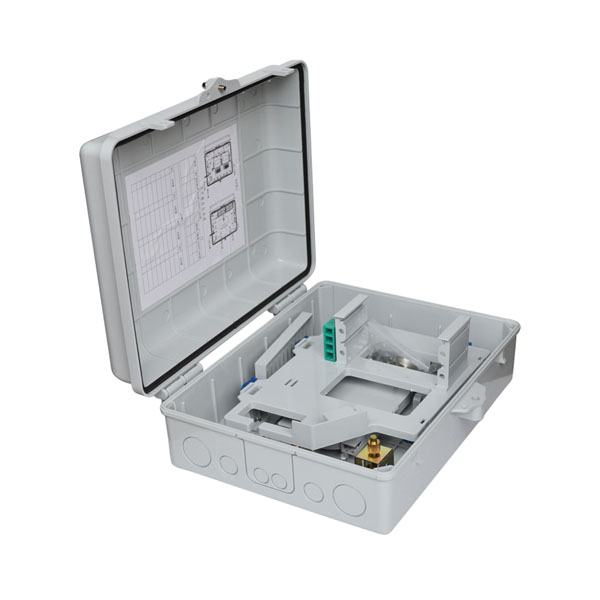

This fiber access terminal box are humanity design with seperate function areas: Except above 1:32 cassette modules, we can also change the slots into 2pcs 1:16 splitter modules instead. Under the rotate plate, on the bottom of the nap box, there is large space to install 1 ~2 pcs splice trays. And we will configure with several fiber optic cable management rods on the bottom.

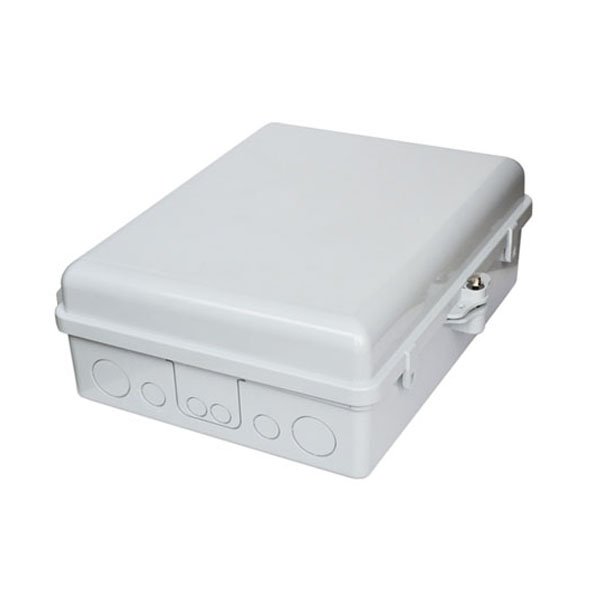

This fiber atb box is closed with steel rod and 1 buckles to hold them tightly, which is IP65 waterproof all round the internal of cover to ensure the sealing. No special key, can not open the FAT box, this can help ensure the optical performance after long time usage.
