6 Port Fiber Optic Box Indoor Outdoor Wall Mounted For Ftth Fiber Access Terminal Use,Splice Tray, Abs Material, 1:5 Splitter

Description

Fiber Optic Box Indoor Features

• FTTH indoor outdoor wall mount, home or work area
• Embedded surface frame, easy to install and disassemble
• Integrated with fiber cassette and cable management rods
• 6 SC/LC duplex adapter, 8 cores fusion splice holder for 40mm fiber sleeves
• High quality ABS+PC engineering plastic, anti-UV, long lasting, durable
• Dust-proof, and ROHS proof with IP45 protection level
• 2 cable entry for cable in and out without cutting, rubber seals
• Laser mark, Logo print position reserved on the lid

Fiber Optic Box Indoor Specification

Fiber Optic Box Indoor Details

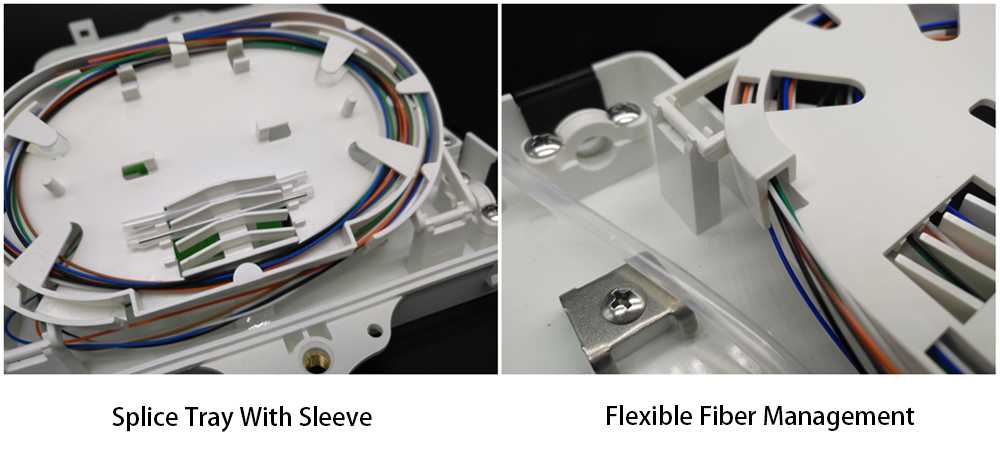

This fiber termination box with a plastic splice cassette, it can hold the 1×5 splitter tube size 60*7*4mm, also 4pcs fiber splicing sleeve 40*1.0mm after fusion spliced with single fibers. And the tray can be take off by hand and fix on it with the brackets on the bottom, easy to install and repair. And there is reasonable bend radius for cable winding and wiring. The white buffer tube will be configured in the box.

The box is mounting on wall with pre-desiged holes on the box back, and lock by a metal screw rod, if you think it is not safe enough,you can use a key lock on side of it. There is a hole reserved.

The cable ports for this small ftth box is 2 inlet and 6 outlets, both with rubber seals (grommets) for waterproof / dust proof protection,  and hold the cable in place tightly. There are cable fixtures inside of the box align with the cable ports. Enter cable is round shape, exit cable are flat holes, all are flexible with screw locks on the bottom itself.

We can maximum hold 6 SC simplex adapters with flange inside of the boxes, there is number mark for installation. On site construction, unscrw the top cover to fix the adapters, then lock it with screws to hold it tightly, no loose during transportation.

Furthermore, this box can used outdoor wall, because there is waterproof ring around of the box to keep the water out, meet IP65 protection grade.

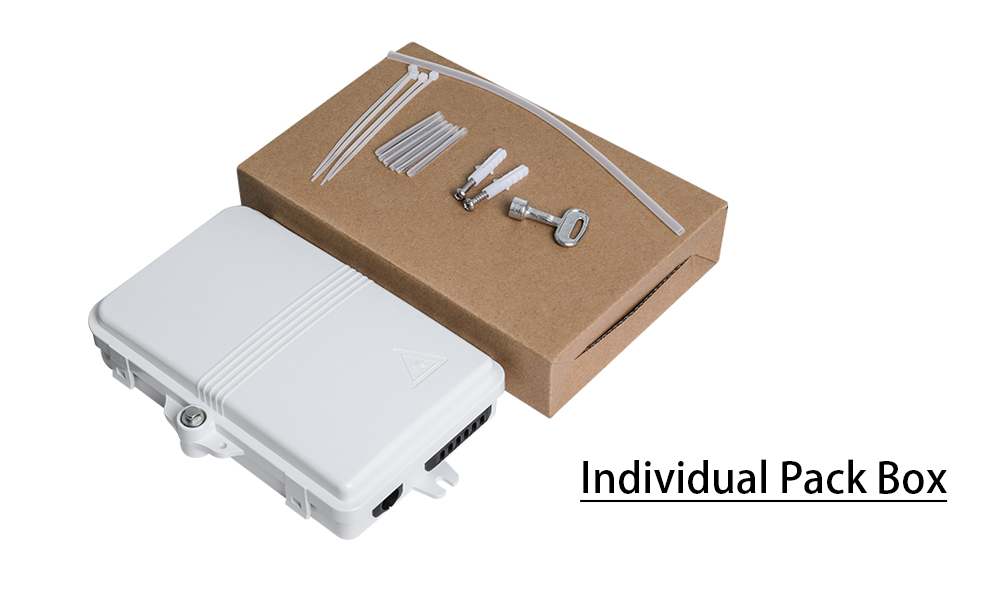

Yingda will load standard accessories for you to use this box, including buffer tube, metal lock, mounting screws * 2pcs sleeve* 6pcs, cable tie * 4pcs, etc.

If you need more accessories, please contact our sales team.

There are two main functions of this FTTH termination box, one is for splicing, the other is splitting.

• if use for splicing, then you only need to bring in the feeder cable, and then split into pieces, then fusion splice one by one with splice machine, and then connected with the drop cable patch cords with connectors.
• if use for splitting, then you only  need to bring in the feeder cable, and then split only 1 fiber out to fusion splice with the input of the splitter, and then plug the outputs of the splitter connectors with the drop able patch cords conectors.
