Description
Features of Fiber Optic Outlet
- FTTH indoor wall mount, home or work area

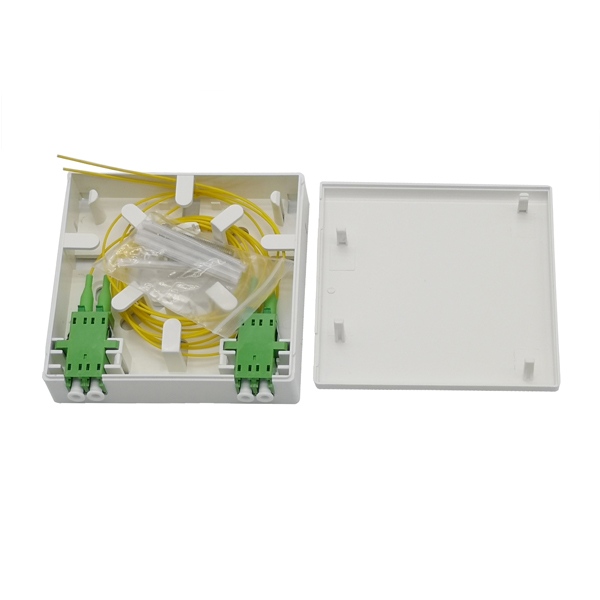

- Lid and bottom is separate, internal with buckle, easy to open and close
- Provide users with optical access or data access
- Large store area for surplus fiber inside
- Suitable for 2pcs SC/LC duplex adapters
- ABS+PC plastic and ROHS proof
- 1port can be with 1pc metal clamp to fix entry cable
Fiber Optic Outlet Specification
| Model | FTB86 |
| Dimension (W*D*H) | 86*86*23 mm |
| Max. Capacity | 2 core (single fiber) |
| Cable ports | 2 pcs |
| Cable diameter | φ2.0mm.φ3.0mmφ0.90 mm cable and FTTH drop cable 2x3mm |
| Adapter | 2SC |
Detailed Display of Fiber Optic Outlet

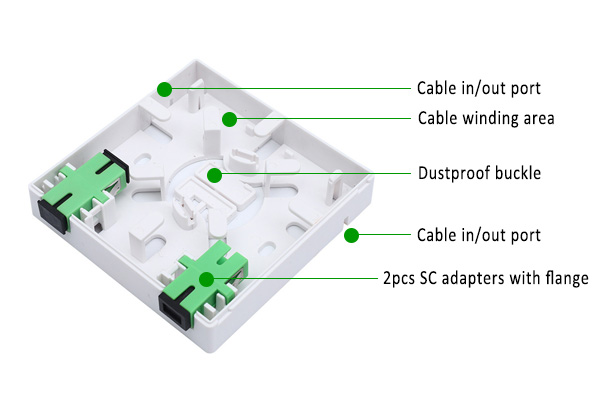

It features two Cable in/out ports for inserting and removing fiber optic cables. The Cable winding area is designed to neatly coil excess cable, preventing tangling. A Dustproof buckle helps keep dust out, protecting the internal components. There are 2pcs SC adapters with flange, which facilitate secure and stable connections between fiber optic cables.

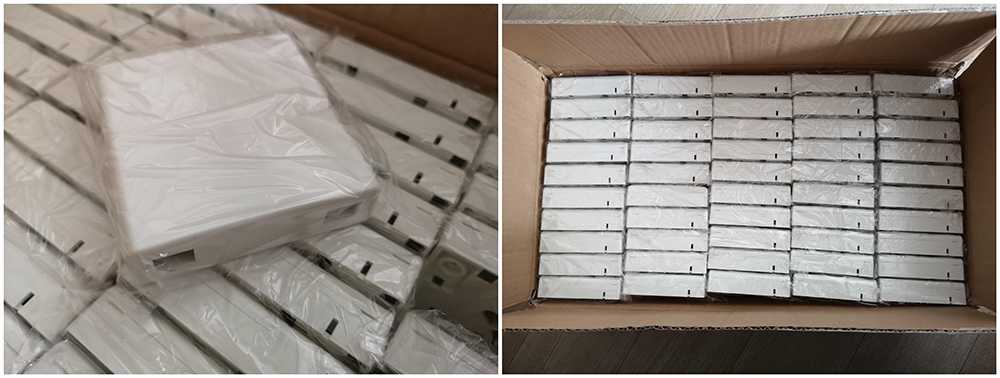

FTB86 fiber optic outlet inner pack is plastic bags, and then 500pcs in a carton boxes for delivery, it can effectively protect the surface of the box from being scratched, while also saving volume and shipping costs.

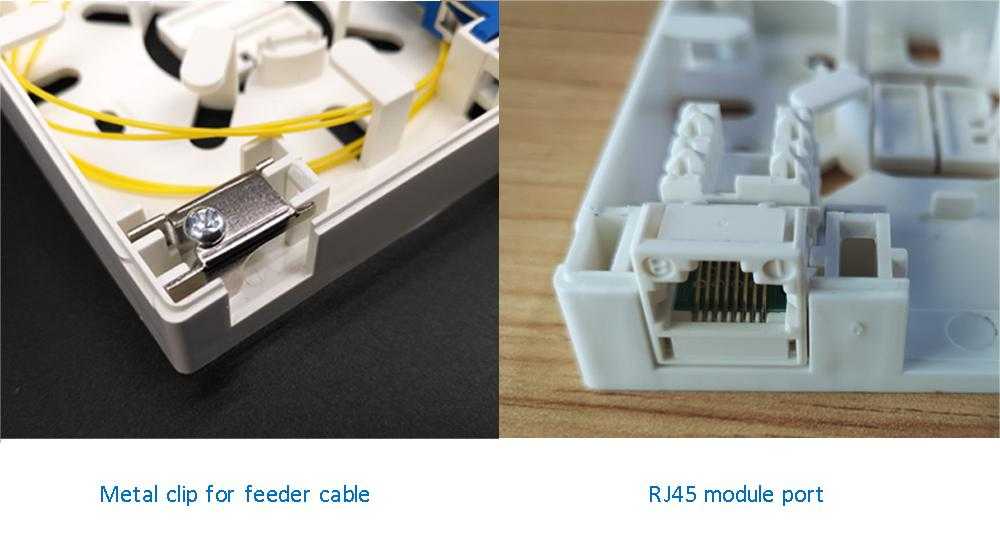

The optical cable entry hole can be fixed with a metal clip to prevent the fiber from bending or breaking due to cable movement. RJ45 modules can also be used, which is compatible with network cable installation, making it more flexible and convenient and suitable for use in various FTTH scenarios.

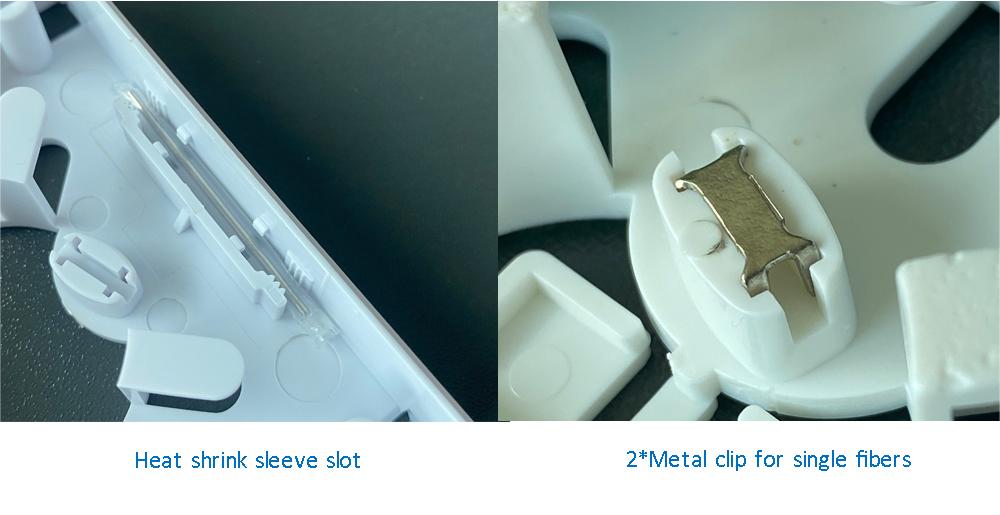

The roseta optical outlet features a fiber splice slot inside for attaching mechanical splices or heat shrink tubing. 40 x 1.0 mm heat shrink tubing is recommended. To secure the internal cable wrap, additional metal clips can be added, as shown below. The clips are positioned within the box for easy access.

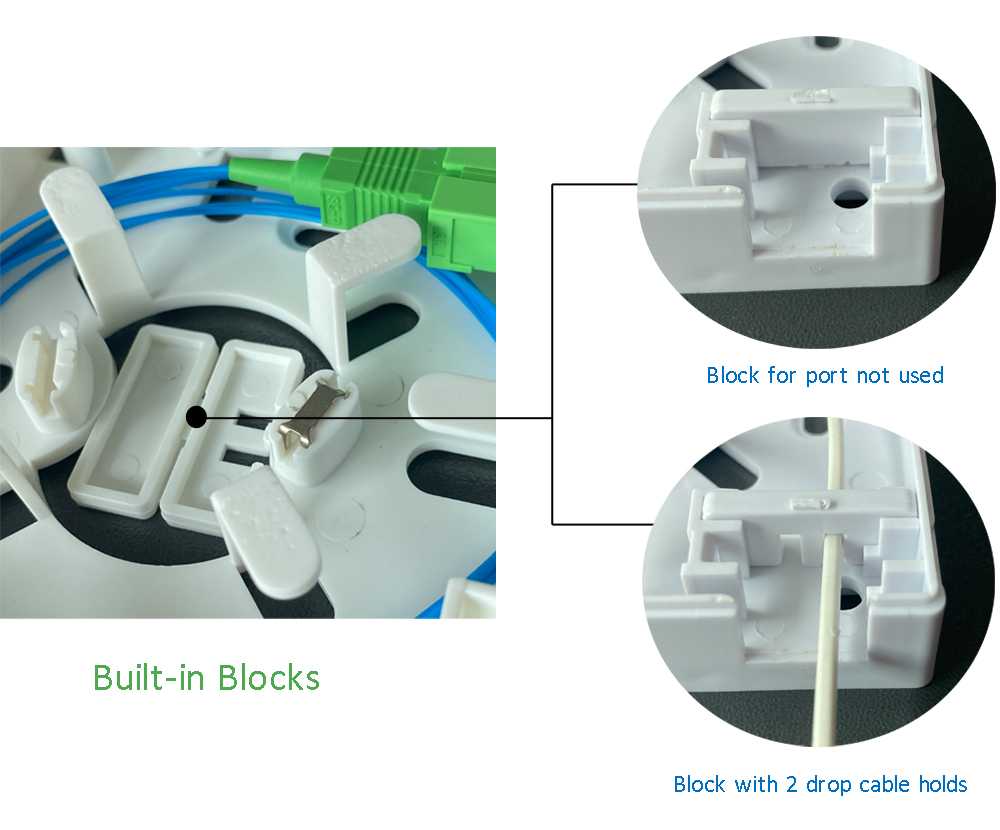

There are two plastic clips in the middle of the box bottom. One is the optical cable hole block, which prevent dust from entering when not in use. The other is a drop cable slot with two special flat drop cable openings, suitable for 2x3mm or 2x5mm drop cables to lead out and fix.

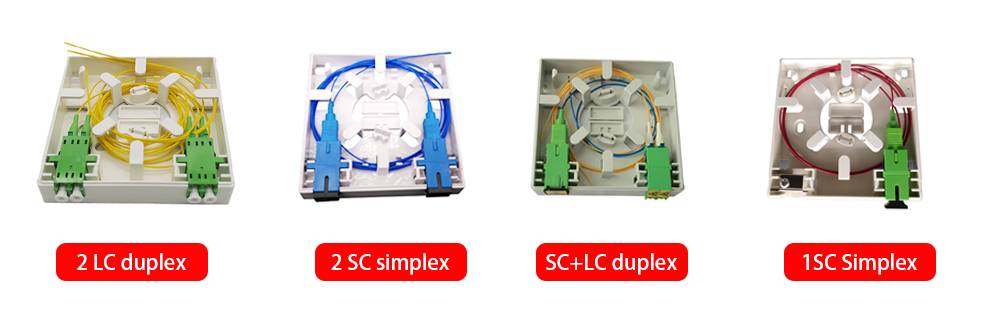

This fiber optic socket panel is compatible with a variety of fiber optic adapters, including SC adapters, LC duplex adapters, and LC duplex shutter adapter or SC shutter adapters. It can be used with or without ears (flange). The maximum number of adapter is 2pcs. It can splice up to 2-4 single-core fibers.

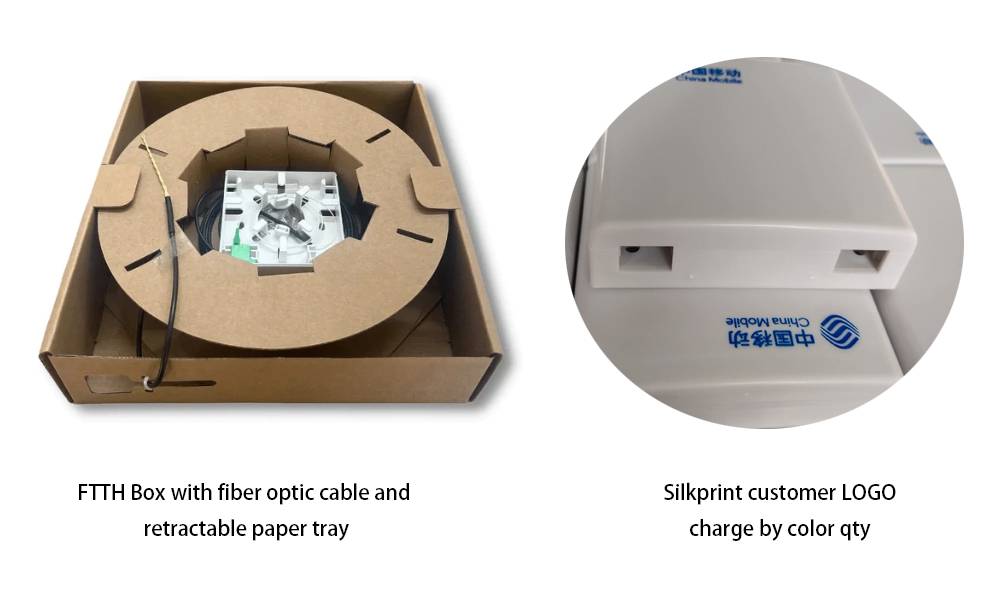

Due to compact size light weight of FTTH outlet, it is widely used with retractable paper boxes, featuring built-in redundancy of approximately several dozen meters of indoor and outdoor cables, enabling flexible wiring solutions for various environments such as stairwells and doorways.
Furthermore, in order to better promote and identify our customers’ brands, Yingda provide logo printing services. Welcome to further consultation.
 |  |  |
