Description

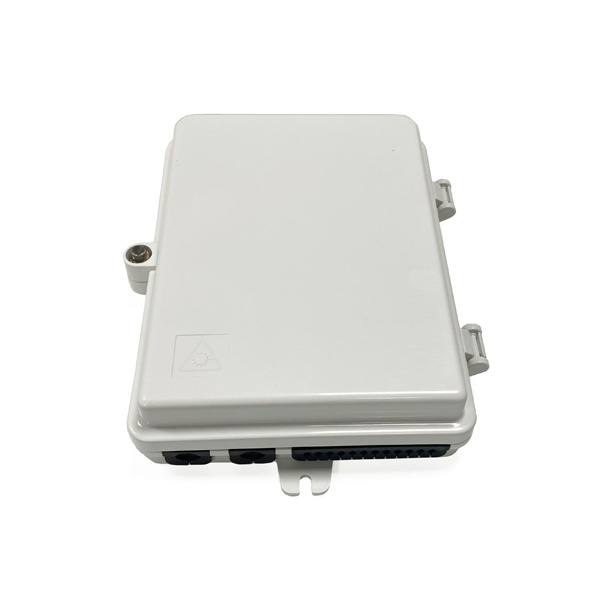

FTB0224 fiber terminal box is used in the end termination of residential building and villas to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles.
Features
- FTTH indoor/outdoor wall mount, pole mount, home or work area
- Embedded surface frame, easy to install and disassemble
- Integrated with fiber cassette and cable management rods
- 8SC/LC duplex adapter and 2pcs 12cores fusion splice tray
- High quality ABSengineering plastic with plastic unique key
- Dust-proof,waterproof and ROHS proof with IP65 protection level
- Laser mark, Logo print position reserved on the lid
s
Specification
Model | FTB0224 | FDB208 |
Dimension | 200*150*46mm | |
Max.Capacity | 24core (single fiber)=2*12F tray | 1pc 1×8 or 2pcs 1×4 steel tube PLC |
Cable ports | 2 in, 24 out | |
Cable diameter | In:Ø10,out:Ø2*3 | |
Adapter | 4SC Duplex / LC quad adapters |
