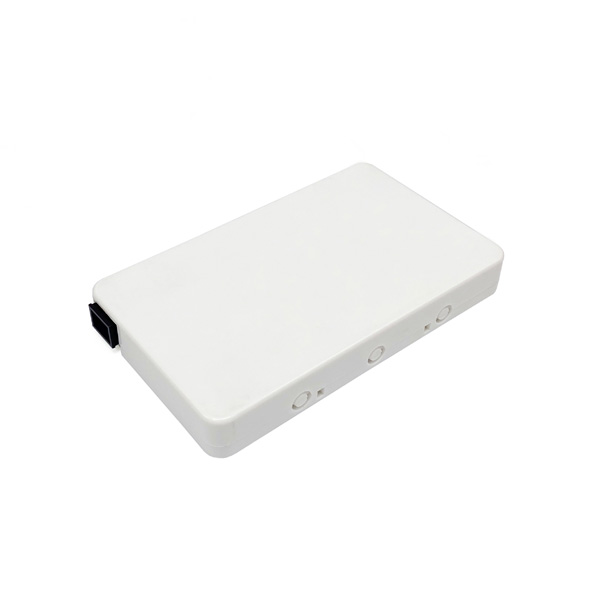

Description
Fiber Outlet Box Features
- 2 Cores FTTH indoor wall mount, home access or work area
- Compact size, separate cover and bottom, easy to install and disassemble
- Unique design for fiber wiring, management, storage for 900um cable
- Suitable for 2 pcs SC or LC duplex adapters
- White ABS / PC plastic material, ROHS compliance
Fiber Outlet Box Specification
| Model | FTB86I |
| Dimension (W*D*H) | 116*70*25 mm |
| Max.Capacity | 2 core (single fiber) |
| Cable ports | 2 pcs |
| Cable diameter | φ2.0mm, φ3.0mm, φ0.9mm cable and FTTH drop cable 2x3mm |
| Adapter | 2 SC / LC duplex couplers |
Fiber Outlet Box Details

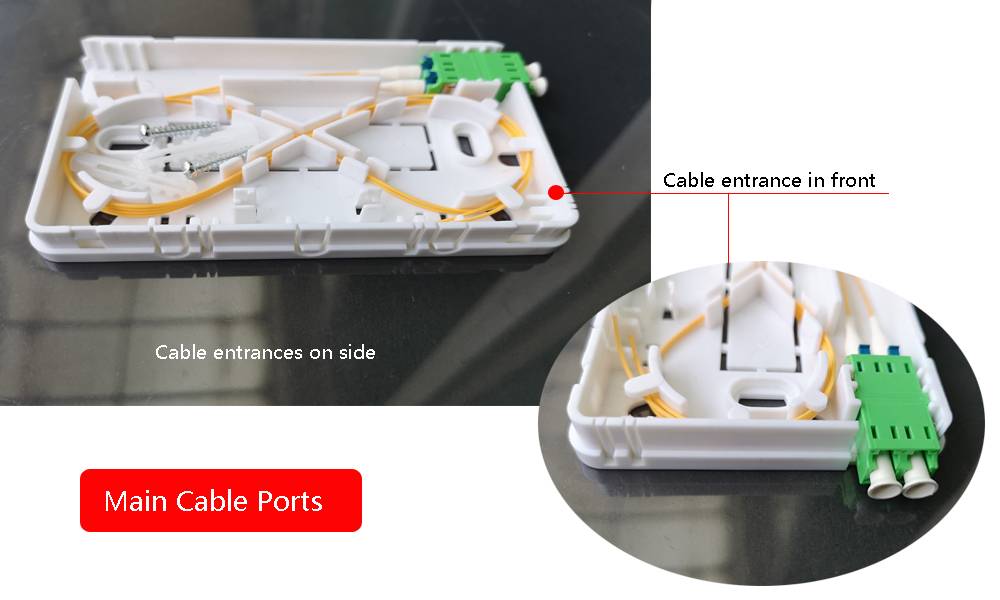

The main cable can go in the fiber outlet box from the left front side and the sides. There are many ports design. When the box is closed, you can not see the ports because of plastic blocks which can prevent dust from entering the box. For on site construction, workers can firstly cut the blocks, then bring the cable in or plug in the adapters.

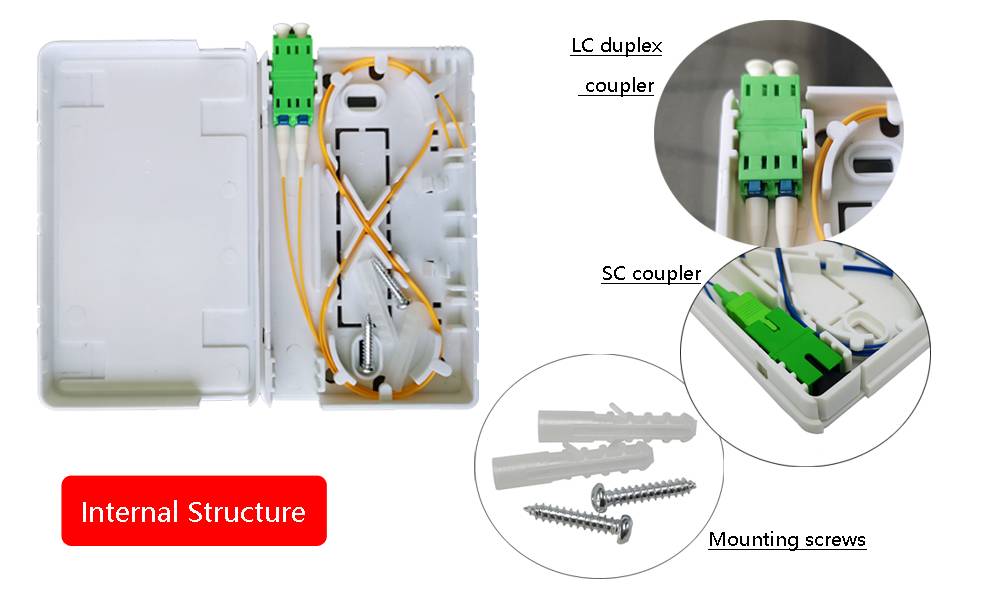

Mini fiber outlet box are made of high strength engineering plastic, this socket panel can use SC or LC duplex couplers, due to the appearance size is the same. If customer not specify, we will directly put the SC adapter and pigtail in the box internal, not on the adapter slot like below image, which can protect the box from the dust.

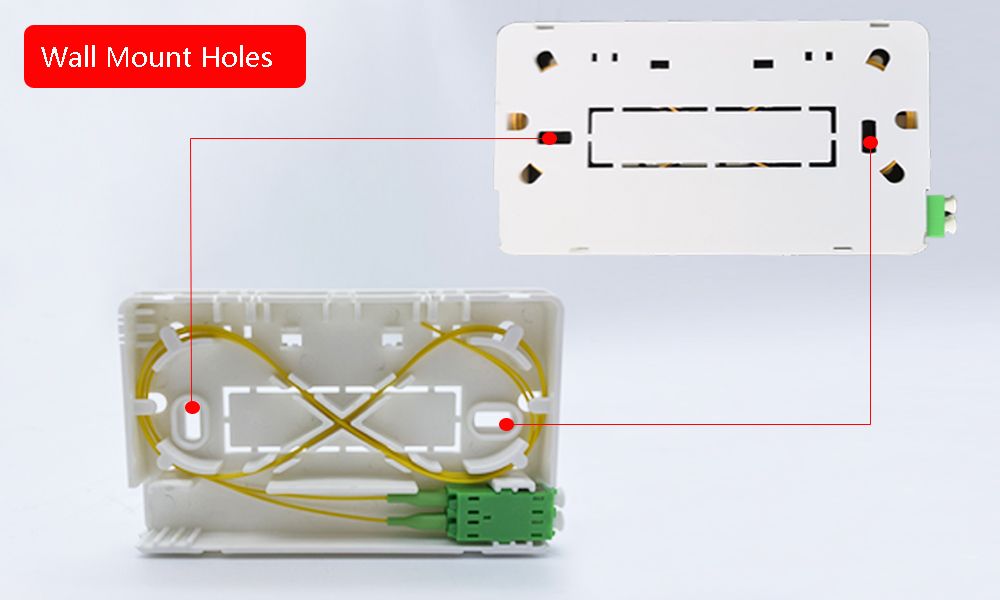

The compact fiber optic outlet is wall mounted, white color, the 2pcs mounting holes are in the box middle line, the mounting screws will be load in the box in factory.
