Description
Optical Termination Outlet Features
- FTTH indoor wall mount 3 port outlet for home or work area
- The irregular lid is higher in the front and lower in the back, ensuring minimum volume while being fully adaptable
- Large area for fiber management, storage for surplus fiber
- Suitable for2 pc SC/LC duplex adapters and 1 RF connector for CATV
- High engineering plastic and ROHS proof
- The cable enters the box from the large hole at the bottom, which is suitable for FTTH solutions with pre-buried optical fiber and copper cable.
Optical Termination Outlet Specification
| Model | FTB86J |
| Dimension (W*D*H) | 86*86*25 mm |
| Max. Capacity | 2 core (single fiber) |
| Cable ports | 4 pcs |
| Cable diameter | φ2.0mm, φ3.0mm, φ0.9mm cable and FTTH drop cable 2x3mm |
| Adapter | 2 SC / LC duplex adaptors |
| CATV | 1 pc RF round port |
Optical Termination Outlet Details

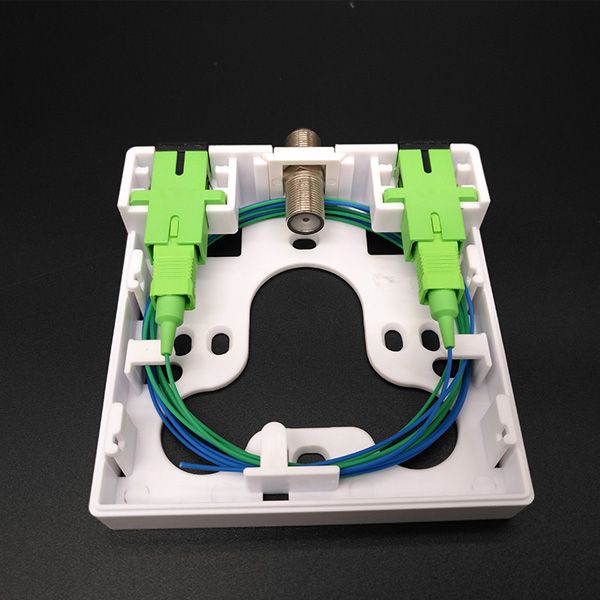

This special fiber optical termiantion outlet are designed for wall mounted, with 3 port in front, 2 pcs for SC adapters, with flange. 1 port for CATV RF connector, which can be used for satellite signal transmission except fiber optic. If there is no connectors, there will be blocks to prevent dust from entering.

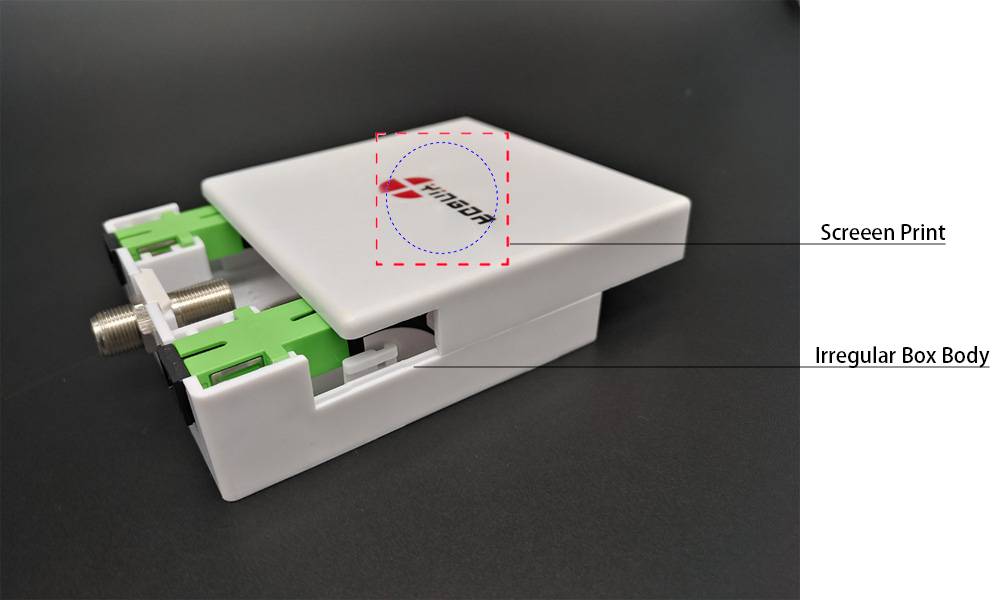

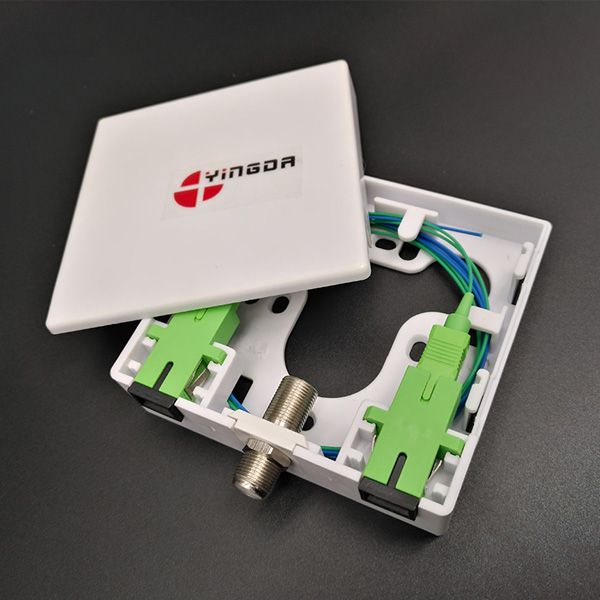

The whole optical termination outlet box is irregular box design, but with the precise connection, compact size, the lid and bottom open and close by sliding, easy to operate, fast and convenient. Meanwhile, Yingda can screen print your logo in colorful, please share your requirements with PDF, JGP, AI files.

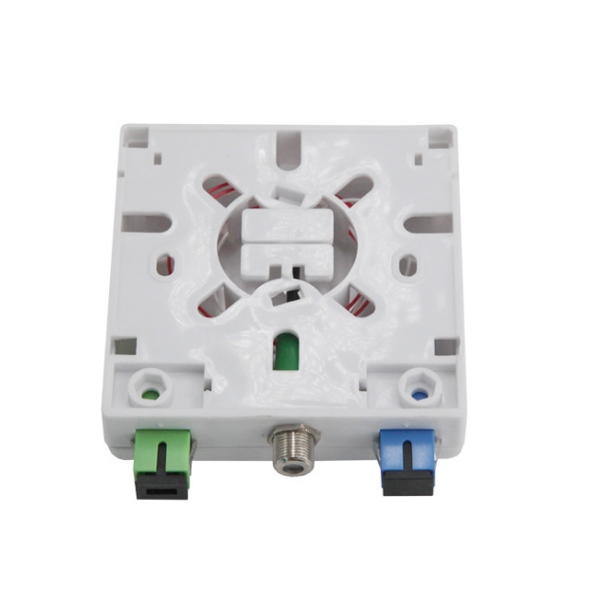

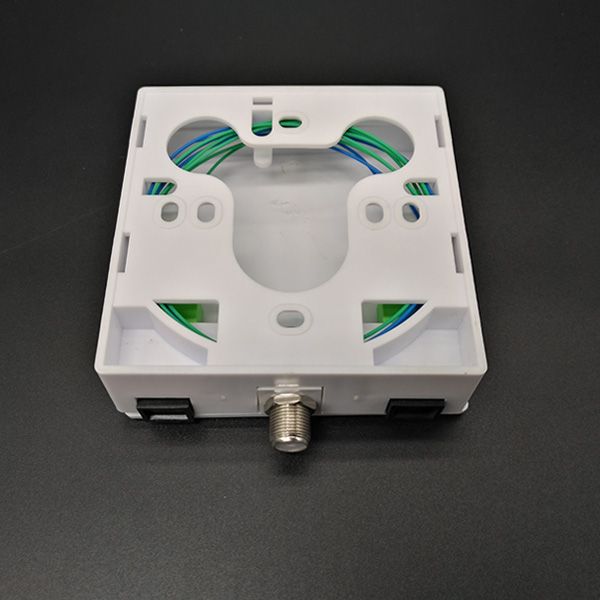

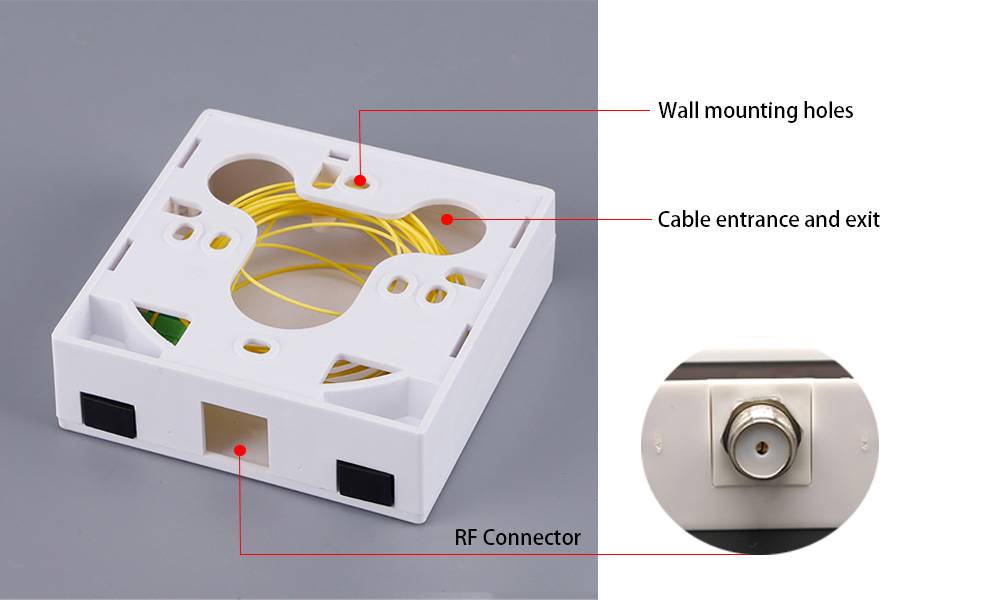

There are 6 holes for mounting on wall at back of the box itself, and the main cable enter and exit the box from the back of the box. Large area for fiber management and storage. The front RF connector is with a separate block, can be takn off by hand, it is the best choice for CATV satelllite and fiber internet application together.
