Description
Features of Fiber Access Terminal Box
- This box could be used for outdoor wall mounted applications
- Cable ener from bottom
- Support field assembly or fusion splice
- Box and key design is easy for operation with complete functions of small size
- It could be used for adaptors such as SC(up to 2 pcs) or LC (up to 4 pcs)
- It could load 1:2 mini type plc 1unit
- Protect level:IP65
Specification
| Model | FDB6002 |
| Dimension (W*D*H) | 150*120*37mm |
| Max. Capacity | 2 core (single fiber) |
| Cable ports | 1in 2out |
| Cable diameter | Φ12mm |
| Splitter quantity | 1pc 1×2(SC) or 1×4(LC) steel tube |
Detailed Display of Fiber Access Terminal Box

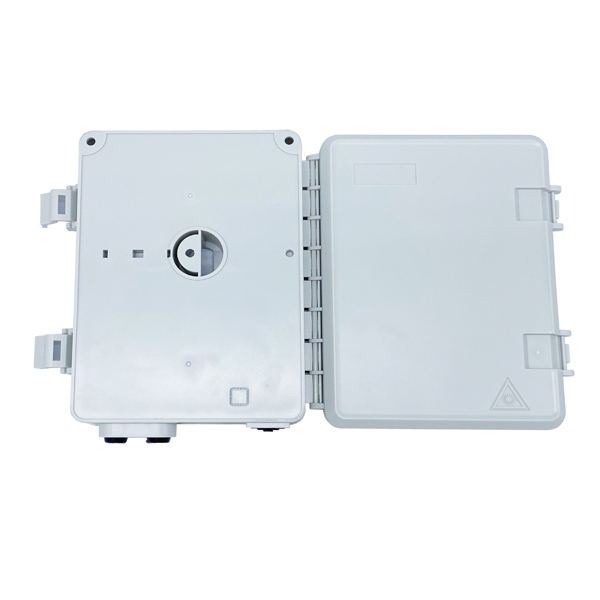

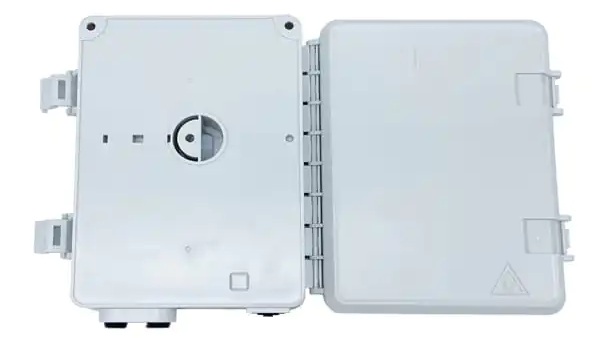

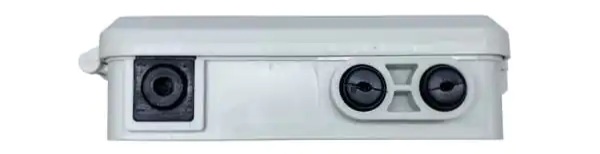

The box has a hinged lid that can be opened and closed easily. When opened, the internal structure is fully visible, showing a well-organized layout for fiber management. It is made of white plastic, which is durable, dust-proof, and moisture-proof, suitable for both indoor and outdoor installations. There are multiple rubber-sealed ports (both single and dual ports) on the box. These ports allow fiber optic cables to enter and exit while preventing dust and water from entering, ensuring the integrity of the fiber connections inside.
The box is equipped with latches that securely close the lid, ensuring the internal fibers are protected from external interference. There are mounting holes and brackets, allowing the box to be fixed on walls or other surfaces, providing flexibility in installation locations.

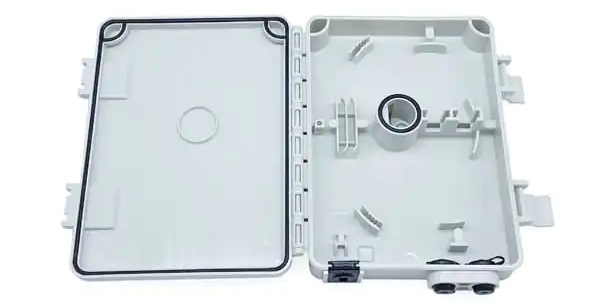

Inside the box, there are components for fiber splicing, storage, and distribution. You can see areas for fiber coiling (to manage excess fiber length), splicing trays, and adapters for connecting different fiber optic cables. This terminal box plays a crucial role in fiber optic networks by providing a centralized location for fiber splicing, splitting, and distribution. It enables the efficient management of fiber optic cables, ensuring reliable signal transmission and easy maintenance of the fiber optic infrastructure.
