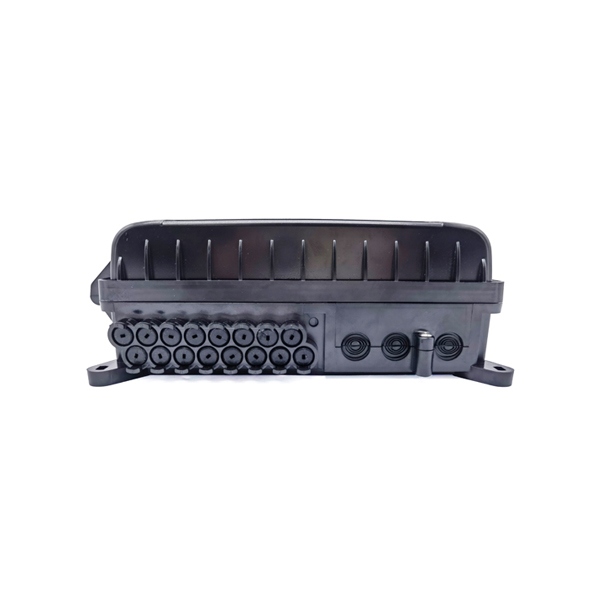

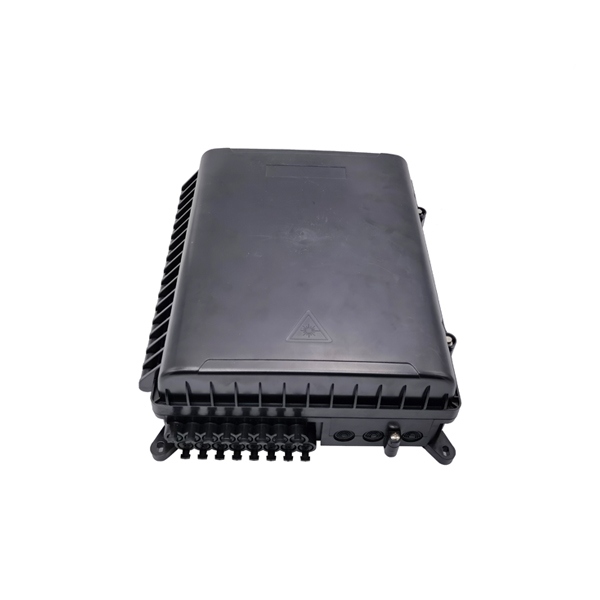

Description
The box is used as a fiber access termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be accomplished in this box, in the meanwhile it provides solid protection and management for the FTTx network building.
Features
- Total enclosed structure.
- Material: PC+ABS, wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
- Feeder Cable,distribution cable, pigtails are running through individualpaths without disturbing each other,LGX splitter installation,easy for
- Distribution panel can be flipped up,feeder cable can be placed in a cup-joint way,easy for maintenance and installation.
- Boxcan be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Specification
1. Environmental specification
- Working temperature:-40℃~+85℃
- Relative humidity:≤85%(+30℃)
- Atmospheric pressure:70KPa~106Kpa
2.Main technical specification
- Insertion loss:≤0.2dB
- UPC return loss:≥50dB
- APC return loss:≥60dB
- Life of insertion and extraction:>1000 times
3.Thunder-proof technical specification
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC); IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flash over; U≥3000V
Table 1 Model and configuration
Max capacity | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | Into the largest cable diameter (mm) | Cable outlet (mm) | |
AxBxC(mm) | splicing | LGX SPLITTER | D*E /F*G(mm) | |||
16 cores | 327*258*94 | 16 | 1:8 *2pcs | 150.5*130/312*236 | 12mm | 2*3~7 |

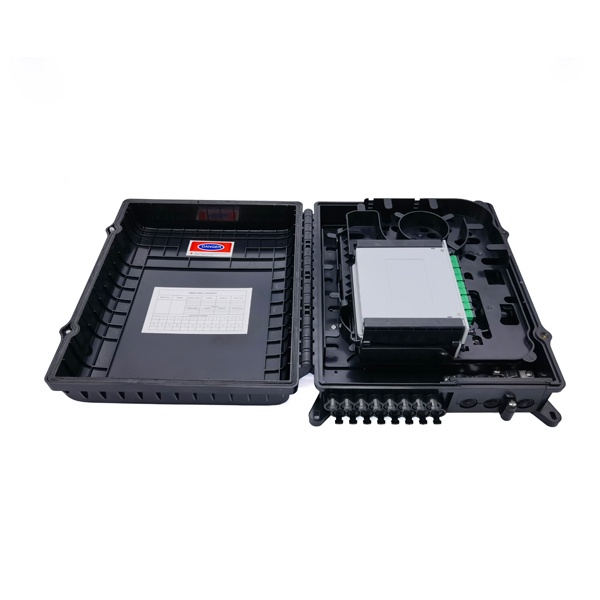

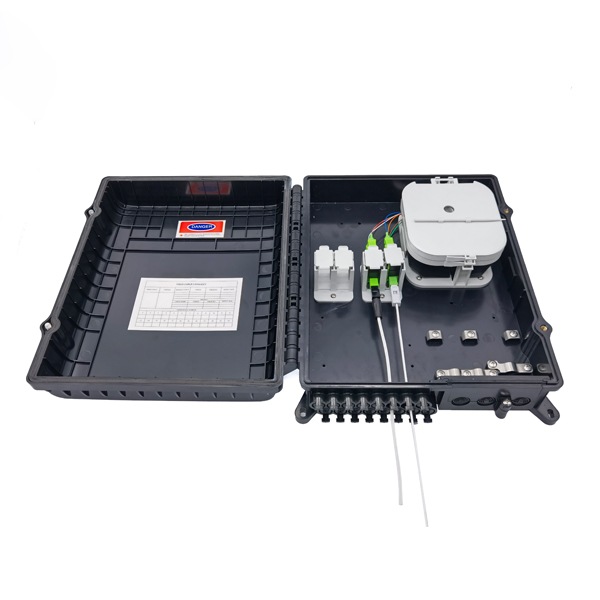

Product inside structure and cable ways
Installation
1.Wall-mounted installation
Drill 3 holes over the wall based on the installation size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten.(Pic 3)
2.Pole-mounted installation
Fix 1 set of the pole straps to the telecom pole.(Pic 4)
Accessories
- Instructions * 1
- key * 1
- Accessory Bag * 1
- Pole strap*2,back plate*2 (optional)
