Description
Features of Outdoor Fiber Distribution Box
- Total enclosed with key and 2*buckles, square shape, light weight, compact size;
- High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
- Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
- Cable, pigtails are running through own path without disturbing each other;
- Distribution panel can be flipped up,1X8,1×16 micro splitter with 24 SC adapter or pigtails are available;
- Fusion plate can be maximum 24cores splicing, large area for routing and storage;
- Feeder cable can be placed by expression port, easy for maintenance and installation;
- Outdoor Wall mount or pole mount, IP65 protection class
- Laser mark and logo print reserved on the lid
Specification
| Model | FDB0224W |
| Dimension (A*B*C) | 274*175*82mm |
| Max. Capacity | 24 cores (single fiber) |
| Cable ports | 1mid span, 2cable glands, 24out |
| Cable diameter | 1mid span(Φ14.5mm), 2cable gland(Φ7-12mm), 24: drop cable 2*3mm or <4.5mm round cable |
| Splitter quantity | 1X8 1X16 mini splitter |
| Adapter quantity | 24SC |
| Color | Grey / black |
Detailed Display of Outdoor Fiber Distribution Box

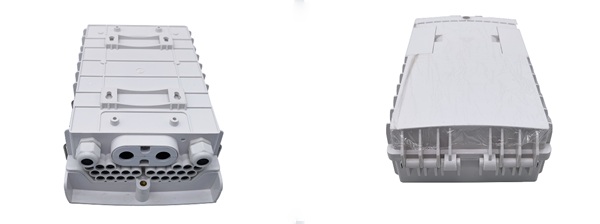

This box has a robust, weather-resistant plastic shell, ensuring durability and protection against outdoor elements like rain, dust, and UV rays, which could be customized in grey or black. It features multiple cable entry/exit ports with rubber gaskets to seal and secure incoming/outgoing fibers, preventing water and debris intrusion.

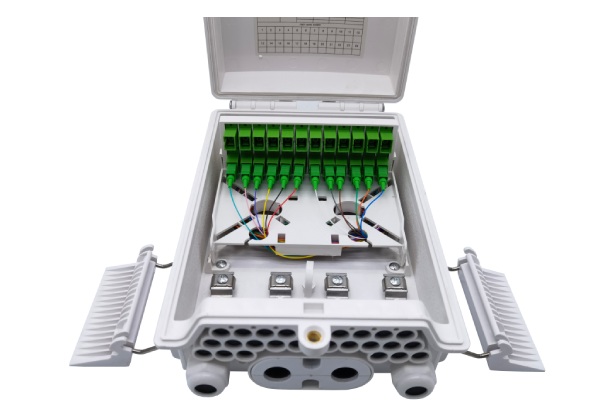

Also, it features hinged doors with latches to keep it securely closed while allowing easy access for maintenance and configuration.

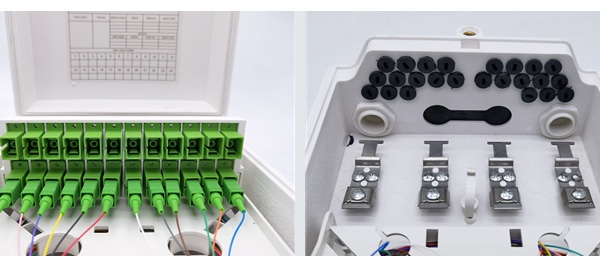

There are green SC/APC adapters where fiber optic patch cords connect, enabling the distribution and connection of fibers. Inside the lid, there’s a labeling panel to identify each fiber port, facilitating easy management and troubleshooting. 1X8 and 1X16 mini splitter are both well-matched to this box.
Metal clamps are used to fix and secure fiber optic cables, preventing them from being pulled out accidentally.

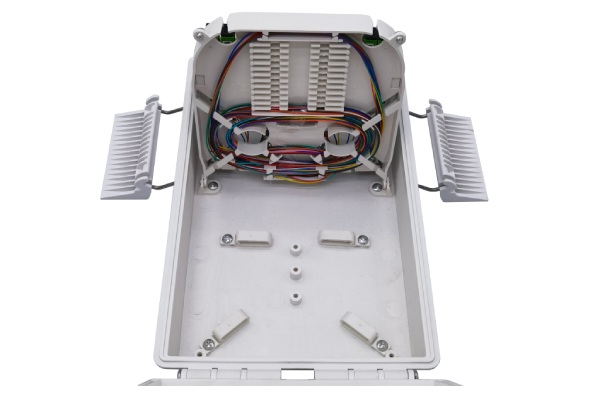

The interior has spaces and fixtures for spooling and routing fibers, allowing for organized management of fiber optic cables to avoid tangling and ensure proper bending radius.
