Description

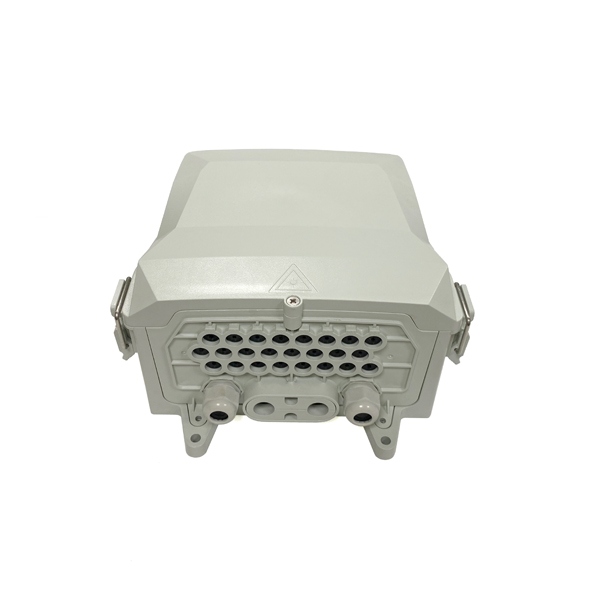

FDB-0224L Fiber Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in telecommunication network system,maximum 16 households end termination.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides protection and management for the FTTx network building. Especially the bottom plate and the front cable ports panel is changeable to be round drop cable ports, huawei mini sc adapters, corning opti-tap sc adapters, or sc connectors with waterproof plug as per real construction needs.
24 Cores ODB Features
- Box is with small special lock with 2 clips and 1 screw rod;
- High strength engineering plastic, whole box is enclosed with waterproof circle,protection class IP65;
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;
- 2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix and winding,both sides with adapter holders;
- All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion;
- Cable clamp and fixture for entry and exit, and large redundant fiber storage space,reasonable bend radius
- Top cover with laser mark, and large space for logo or wiring diagram printing.

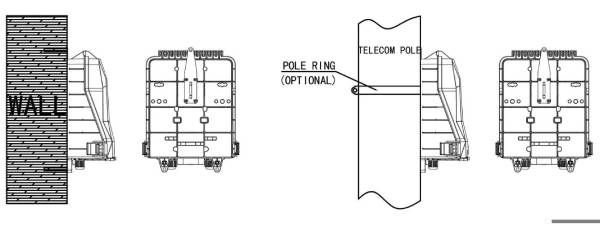

- FTTH outdoor wall mounted, pole mount,aerial mount;
- It is applicable for outdoor cables or indoor soft cable;
- The box can use for a minimum period of 20 years;
24 Cores ODB Application
- FTTH access network
- Telecommunication network
- CATV networks
- Data communications network
- Local area networks
24 Cores ODB Specification
Model | FDB0224L |
Dimension | 306*237*116 mm |
Adapter qty | 16pcs SC simplex coupler with flange |
Splitter qty and type | 2 pcs 1:8 splitter or 1 pc 1:16 splitter |
Max. Capacity | 24 cores single fiber |
Minimum fiber bending | ≥30 mm |
Cable inlet | 1 mid span, 2 pcs PG13.5 cable glands |
Cable outlet | 24 pcs round rubber ports for drop cable |
Color | Grey, black |
Protection grade | IP65 |
24 Cores ODB Standard Accessory:
expansion screws,metal key,nylon tie, sleeve,buffer tube
![FDB0224L spare parts](https://yingdapc.com/wp-content/uploads/2024/04/FDB0224L-spare-parts.png)

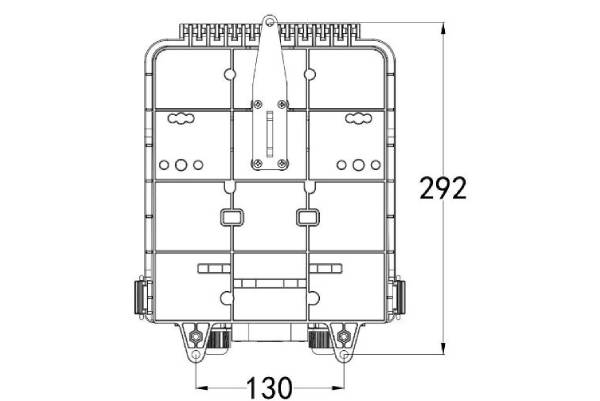

Mounting size: 292*130mm
![FDB0224L mounting hole](https://yingdapc.com/wp-content/uploads/2024/04/FDB0224L-mounting-hole.png)

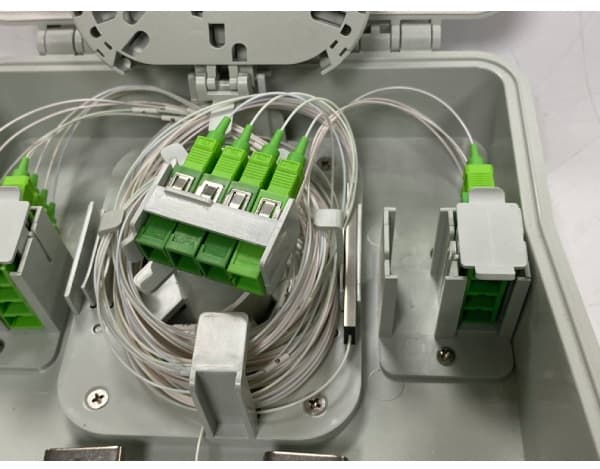

Internal Structure Design
