Description
FDB0224H is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
24 Port NAP Fiber Distribution Box Features
- Total enclosed with key and buckle, light weight, compact size;
- High strength engineer plastic, wet-proof/water-proof/dust-proof,anti-aging, resistance to chemical and U.V attack;
- Clampfor feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
- Cable, pigtails are running through own path withoutdisturbing each other;
- Rotate platecan be flipped up, front for 1X16 LGX or micro splitter with 24SC adapter, back is for fusion 24cores.
- Additional 24fiber splice tray on bottom to extend capacity
- Feeder cable can be placed by expression port,easy for maintenance and installation;
- Outdoor Wall mount or pole mount, IP65 protection class
24 Port NAP Fiber Distribution Box Specification
| Model | FDB0224H-A | FDB0224H-B |
| Dimension (A*B*C) | 340*250*110mm | |
| Max.Capacity | 24cores (single fiber) | |
| Cable ports | 1mid span, 1 cable gland, 24out | |
| SCable diameter | 1mid span:Φ15mm, 1cable gland:Φ7-12mm, 24 out:2*Φ3mm | |
| Splitter quantity | 1×16 or 3pc 1×8 steel tube | 1×16 or 2pc 1×8 LGX module |
| Adapter quantity | 24SC | — |
| Color | Grey / black | |
24 Port NAP Fiber Distribution Box Product Details

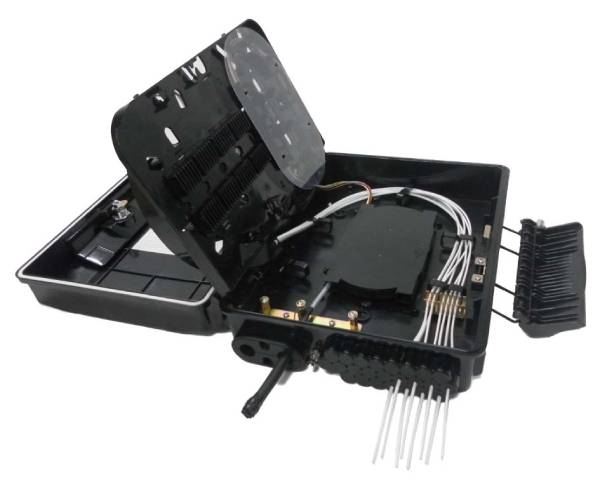

The optical fiber distribution box can be wall mount or pole mount, standard is wall mounting, add 2 stainless steel straps for pole mounting.
There are 1 rotate plate for easier fiber management, the back of the plate is for fiber optic fusion and splitting, with sleeve slots and splitter tube slots and winding area for surplus fibers.
For more fusion splice requirement, we will configure 1 piece splice tray on the bottom for better fiber optic splicing with feeder cable. All ports with cable fixtures for the strength members, and grounding wires for better fiber protection, large area of fiber winding and routing.
All screw holes are copper inserts, not ordinary plastic holes, which are more durable and long-lasting.
The box can be white color, gray color or black color, and the cable ports are 2 uncut ports and 1 cable glands, total 3 cable entrance for better cable management;
also the cable exit are all with rubber seals to protect the cables in place and waterproof meet IP65 standards.
Meanwhile, this 24 port optical distribution box can change the adapter panel into LGX splitter case holder to install PLC spltiter modules instead of mini splitter, like below, it can hold 2pcs 1×8 or 1 pc 1:16 splitter modules.
