Description
Configuration Table
| Model | FDB0224A |
| Installation Method | Wall-mounted or pole-mounted |
| Color | Gray |
| Material | PC+ABS |
| Adapter Ports (SC) | 24 Pcs |
| Capacity Of Splicing | 48 Cores |
| Cable Ports | 4 Ports (For main cable) + 24 Ports (For drop cable) |

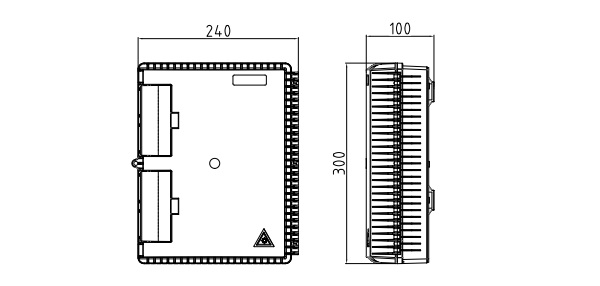

| Size: H×W×D (mm) (Pic 1) | 300×240×100 |
Detailed Display of 24 Port Fiber Termination Box
The 24 port fiber termination box is a compact, robust solution for managing fiber optic connections, ensuring efficiency, reliability, and ease of use in fiber optic distribution networks. It is built to be dust-proof and moisture-resistant, suitable for both indoor and outdoor (weatherproof) installations. The dimensions of this box are 240 (length) × 300 (height) × 100 (depth).
Inside the box, it allows one main fiber to be split and distributed to multiple drop fibers (up to 24 ports), facilitating FTTH or FTTB networks.

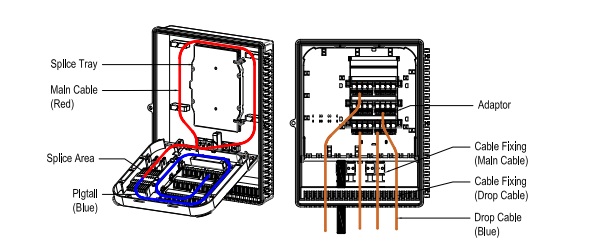

A dedicated area for fiber splicing, where main fibers (e.g., red-colored) and pigtails (e.g., blue-colored) are fused. This box is equipped with 24 adapters (e.g., green-colored) for connecting patch cords, enabling fiber distribution. Also, it includes organized spaces for cable fixing and routing, preventing fiber tangling and ensuring proper bend radius control.

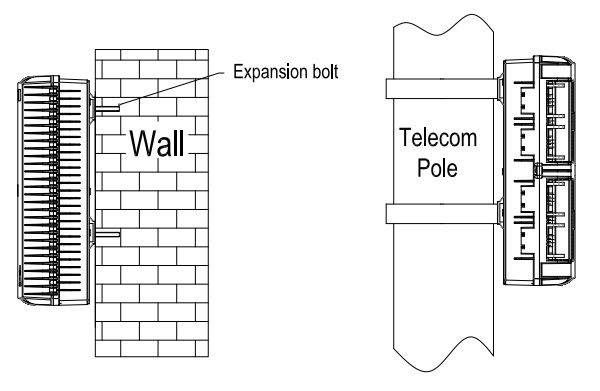

Something about installation:
- Wall-mounted installation: Drill 3 holes in the wall according to the installation size, place the expansion bolt, place the box to match up the holes and use bolt to fasten.
- Pole-mounted installation: Fix 1 set of the hose clamps to the telecom pole.
Optional Accessory
SC Adapter | 1:8 Splitter | SC Type Pigtail |
 |  |  |
| SC/APC, green SC/UPC, blue IL<0.2dB | Mini Splitter 1×12,1×4,1×8 | SC Type Pigtail IL<0.3dB |
| Read More | Read More |
