New 2in 16 Out Optical Fibre Connection Box For 1×8 1×16 Mini Splitters, Sc Adapters,And Ftth Drop Cable

Description

Features of Fibre Connection Box

• Total enclosed structure.
• Material: PP, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
• Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/TLC adaptor installation, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
• Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.



Specification

Environmental requirement
Working temperature：	-40℃~+85℃
Relative humidity:	≤85%(+30℃)
Atmospheric pressure:	70KPa~106Kpa
Main technical datasheet
Insertion loss：	≤0.2dB
UPC return loss:	≥50dB
APC return loss:	≥60dB
Life of insertion and extraction:	>1000 times



Detailed Display of Fibre Connection Box

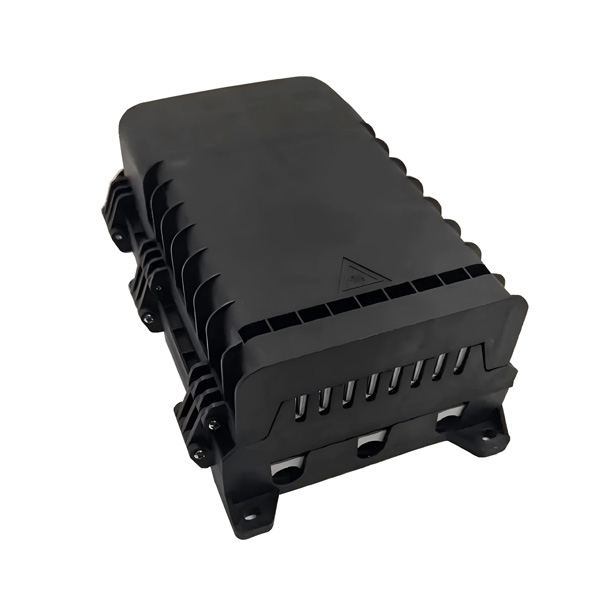

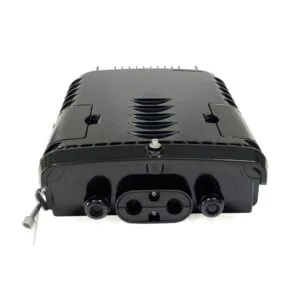

The box has a compact and rugged design. It features multiple ridges on the sides, which likely serve for heat dissipation and structural reinforcement. It is made of durable black plastic, ensuring robustness and resistance to environmental factors. There are also mounting brackets at the bottom, allowing for secure installation in various locations. The front panel has several slots and ports for fibre cable entry and exit.

Inside, there are components for organising fibre optic cables. You can see green fibre adapters (connectors) that facilitate the joining of fibres. There are also spools or trays for fibre splicing and storage, allowing fibres to be neatly coiled and protected.

It provides a sealed and protected environment for fibre optic connections, safeguarding them from dust, moisture, and physical damage, which is crucial for maintaining the integrity and performance of fibre optic networks.

The upper part of the lid has a transparent window, through which several key components are visible:

• 1×8 or 1×16 Mini Splitters could be placed here.
• Optical Fiber Pigtails: Multiple colored optical fibers are neatly arranged.
• Fiber Optic Adapters (Connectors): A set of green fiber optic SC adapters are installed, providing interfaces for connecting patch cords.
• Cable Entry/Management Holes: Three circular holes are present for routing and managing fiber optic cables into or out of the box.



Lower Compartment

• The lower section houses fiber optic splice trays (the gray, square components). These trays are used for splicing optical fibers (joining two fibers together) and organizing the spliced fibers. It can be stacked or opened to access the splicing area.
• On the left side, there are cable management slots and fixing points with metal screws, designed to secure and organize incoming/outgoing fiber optic cables, ensuring they are properly managed and protected from tension.

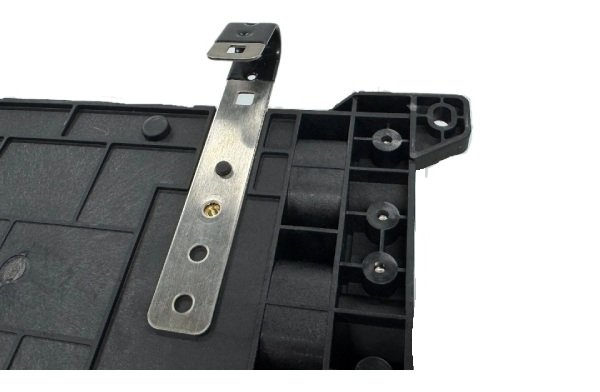

There is a stainless component, which has multiple holes and screw holes. The design of the holes and the bent shape suggest that it functions as a connecting and fixing part. It could be a hinge-like component for structural opening and closing, or a modular connecting piece for assembling different modules. Such components are commonly found in communication equipment, industrial control devices, and other scenarios that require stable mechanical connections.

This box supports fibre splicing (joining fibres together) and the use of fibre connectors, enabling efficient management of fibre optic links in applications such as FTTH, telecommunications networks, and data centres.



Optional Accessory for Fibre Connection Box

SC Adapter	1:8 Splitter	SC Type Pigtail	Cassette splitter 1 * 8
SC/APC, green SC/UPC, blue IL<0.2dB	Mini Splitter 1×12,1×4,1×8	SC Type Pigtail IL<0.3dB	Casstte module size:130*100*25mm SC/UPC, SC/APC connectors
