Description
Features of Fiber Optic Splitter Box
- Total enclosed structure with key and buckles.
- High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging.
- Outdoor wall mount, pole mount or aerial mount, protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc. all in one.
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Specification
| Model | FDB0216E |
| Dimension (A*B*C) | 319.3*200*97.5mm |
| Installation size (D*E/F*G)/mm | 52*166*166 |
| Max. Capacity | 36 cores (single fiber) |
| Cable entry | 2big round: ᴓ8~14mm, branch cable:ᴓ16mm |
| Cable exit | 8pcs Mini SC adapters |
| Splitter quantity | 1×2, 1×4, 1X8 mini splitter |
| Waterproof grade | IP65 |
| Material | PC+ABS |
| Color | Grey, black |
Detailed Display of Fiber Optic Splitter Box

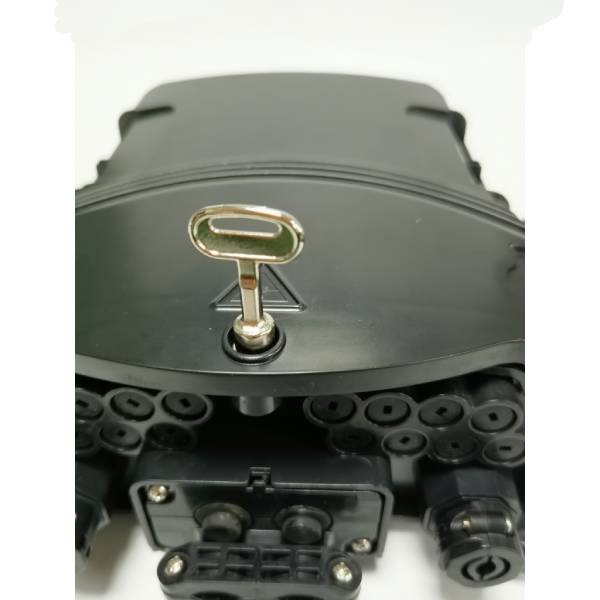

The box is engineered for easy maintenance and operation. The lid opens fully to provide access to the internal components, making splicing, inspection, and repair tasks convenient. It is sealed and often lockable with screws (as seen with a key in following picture), ensuring protection against environmental factors like dust, moisture, and physical damage., which could be customized in grey or black.

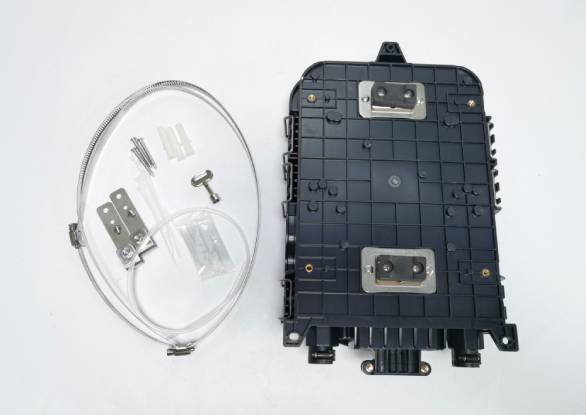

It comes with various installation accessories, including metal brackets, screws, and cable management tools (like the transparent cable holder and metal fixtures), facilitating secure installation and fiber organization.

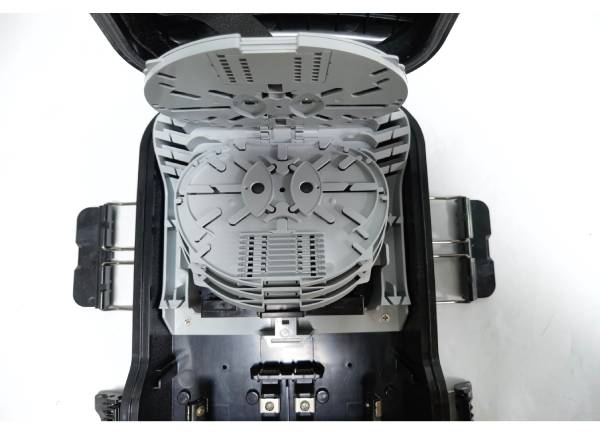

Inside, there are fiber splicing trays where fiber optic cables are spliced and managed. These trays have slots and holders to neatly arrange fiber optic cables and splices, preventing tangling and ensuring optimal signal transmission.

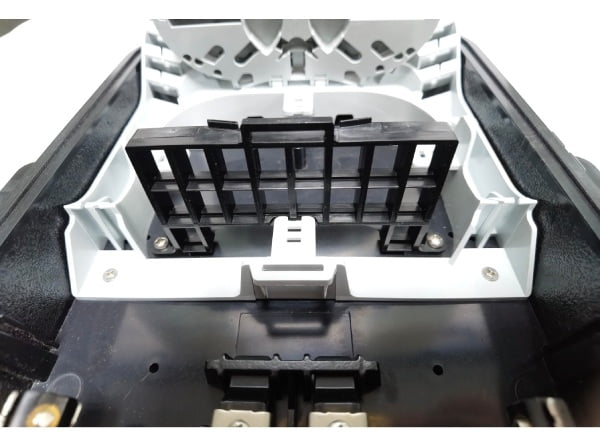

There is a black plastic grid-like structure, which is a holder for fiber optic adapters or connectors, designed to organize and secure the optical connections. The grid is set within a white plastic framework, which provides structural support and alignment. Several metal screws are visible, fastening this white structure to the rest of the box. 8pcs Mini SC adapters could be placed here, also, 1×2, 1×4, 1X8 mini splitters are suitable for this box.

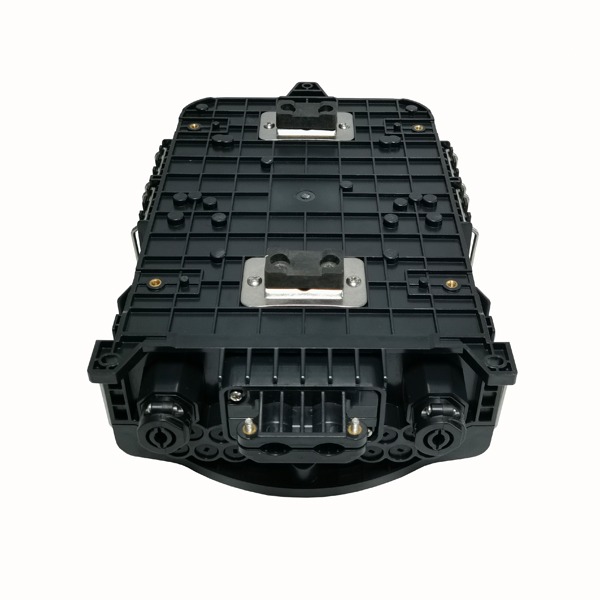

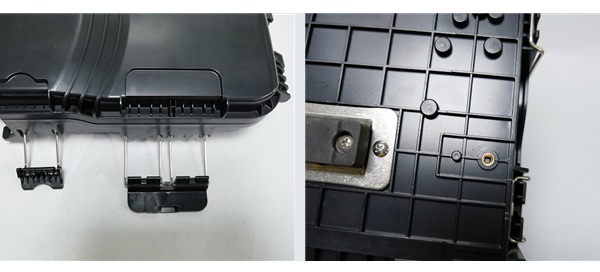

On both the left and right sides of the box, there are black latches (or buckles) which are used to securely close the box. At the bottom of the box, there are several metallic components used for cable connections or grounding.
