Description

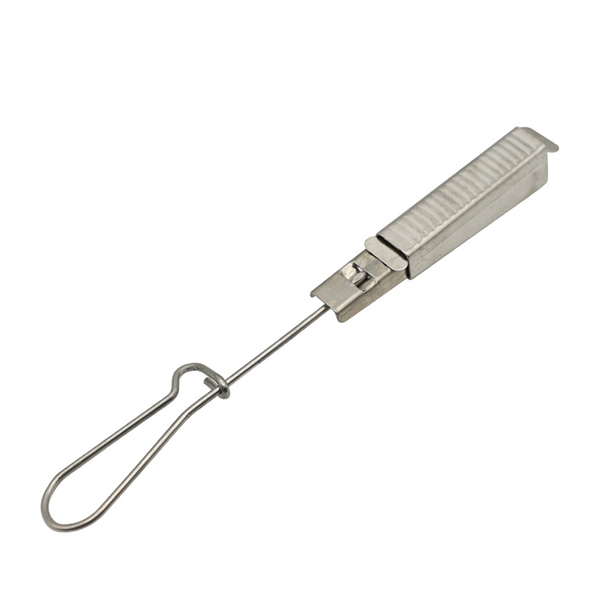

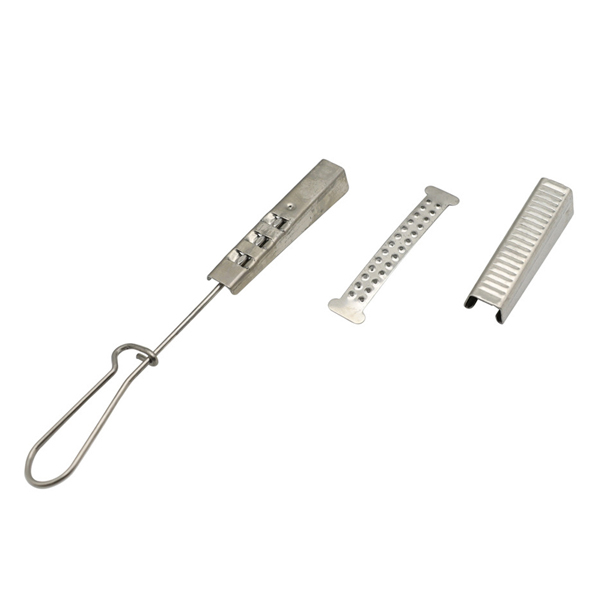

The drop cable tension clamp consist of shell, perfoated shim and wedge equipped with open tail wire.The separated shim is provided to increase holding the drop cable wire faster. The knots are 2 knots, 3 knots or 4knots available.
Drop Wire Clamp Features
- Good anti-corrosion performance, abrasion and wear resistance;
- High strength, and durable, maintenance free;
- Durable and easy to installation
FTTH Tension Clamp Specification
| Model | ODWAC-S22 |
| Dimension (L*W) | 13*6mm |
| Applicable | 2x5mm drop cable |
| Breaking load | 1.2KN |
| Material | Stainless steel 201, 304 |
| Color | Silver grey |
| Net Weight | 45g |
How to install the fiber optic cable into the tension clamp?
- Place the neutral messenger cable in shell of the clamp body.
- Then, put the shim on top of cable with raised embossing against cable.
- Once located, insert wedge in shell (on top of shim) and slide to engage. Small end of wedge should be initially engaged in track of large end of shell.
- Place bail wire on “B” drop wire hook (ram’s horn) with wedge loose. Pull drop wire through clamp until proper sidewalk / alley clearance is achieved.
- Hold clamp and pull tightly to make sure that the cable does not slide from the clamp.
