32 Port High Power Radio and Television 1550nm Erbium Ytterbium Fiber Amplifier EDFA For Optical Communication Network, Without WDM

High Power Erbium-Doped Fiber Amplifier (EDFA) isHigh stability output HPEDFA. Its core device adopts high reliability Pump laser, and adopts unique APC (automatic control) and ATC (automatic temperature control) circuits, which makes the output power stable and reliable. The unique optical path design ensures excellent optical path indicators, and adopts highly stable and high progress MPU (microprocessor) system for use and adjustment, which is convenient, reliable and intelligent.

SKU EDFA-32 Category Tag

Description

1550nm EDFA Features

  • High quality: The front stage pump uses 980nm as a small signal amplification, and a dedicated pulse width constant temperature cooling chip. The back stage uses imported high-power multi-mode pumps, and the power is precisely controlled by hardware circuit APC, AGC, and the dual pump hot backup design minimizes the NF of HPEDFA, which is comparable to conventional EDFA. The system can obtain excellent CNR.
  • Flexibility: The output optical power is adjustable. The adjustable range of the output optical power (-3~-6dB) is required when the user orders. Multiple ports with low power and reasonable output power distribution. The internal 1310/1490/1550nm EPON and GPON splitters can also be integrated, which greatly facilitates the application of EPON networks.
  • Intuitive: The machine has a built-in microprocessor to monitor the working status of the pump laser, and the working parameters are displayed on the panel LCD window.
  • Network management type: The optional status monitoring transponder ensures that it meets the national standard and is compatible with the SCTE HMS standard, and can realize the network management monitoring function.
  • Power plug-in type: The aluminum type plug-in switching power supply is used, which is conducive to heat dissipation and replacement. And dual power supply hot and cold backup.
  • Intelligent pump over-temperature protection function, when the pump temperature exceeds 50℃, the pump is automatically turned off. When the temperature is below 50℃, the pump is automatically turned on.



1550nm EDFA Technical Parameters

SNItemUnitParameterRemark
1Output optical powerdBm26~40Output can be divided equally between 8~64 ports
2Output optical powermW400~5000Output can be divided equally between 8~64 ports
3Input optical powerdBm-3~+10Minimum -10
4Optical wavelengthnm1540~1565
5Output optical power stabilitydB<±0.2
6Polarization sensitivitydB<0.2
7Polarization mode dispersiondB<0.5
8Optical emission lossdB≥45
9Fiber connectorFC/APCOptional SC/APC
10Noise factorDb<0.50dBm, @1550nm
11Power supplyVac86 ~265Optional -48Vdc
12Power consumptionW≤100When single power supply is working
13Operating temperature0 ~ 50Fully automatic chassis temperature control
14Storage temperature-20 ~ 85
15Operating relative humidity%20% ~85%
16Dimensionsmm430(W)X435(D)X44(H)1U
17Network management connectorRJ45SNMP

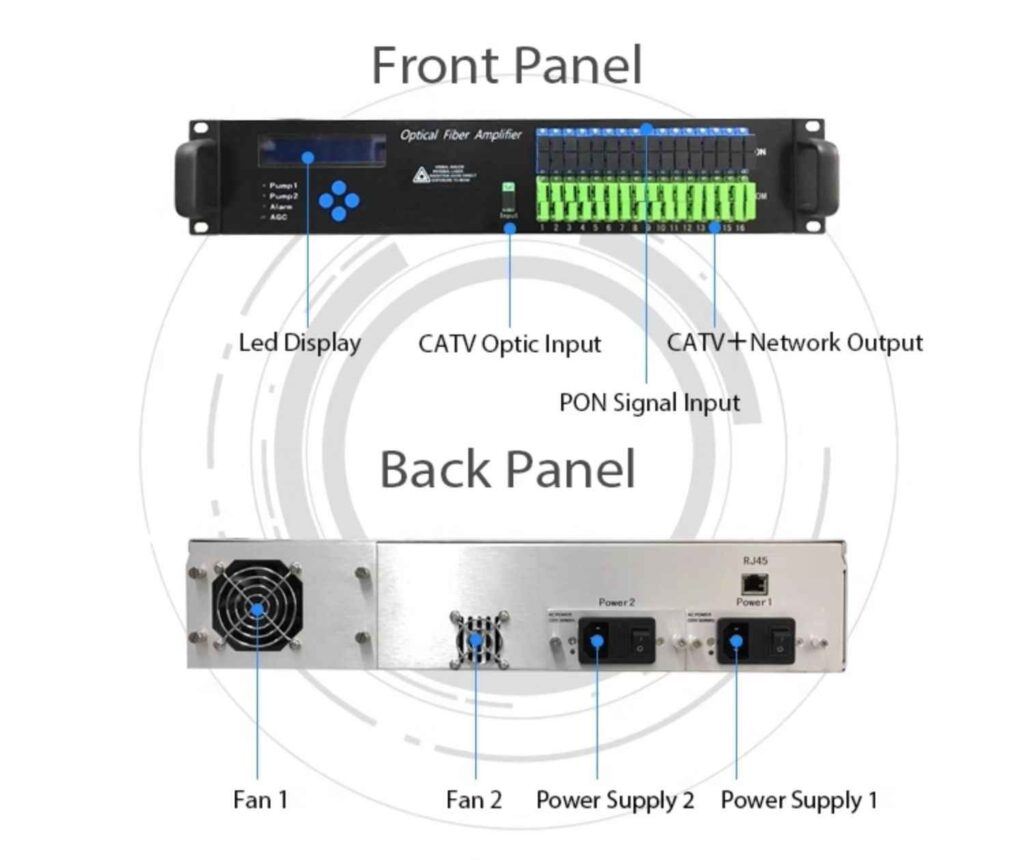

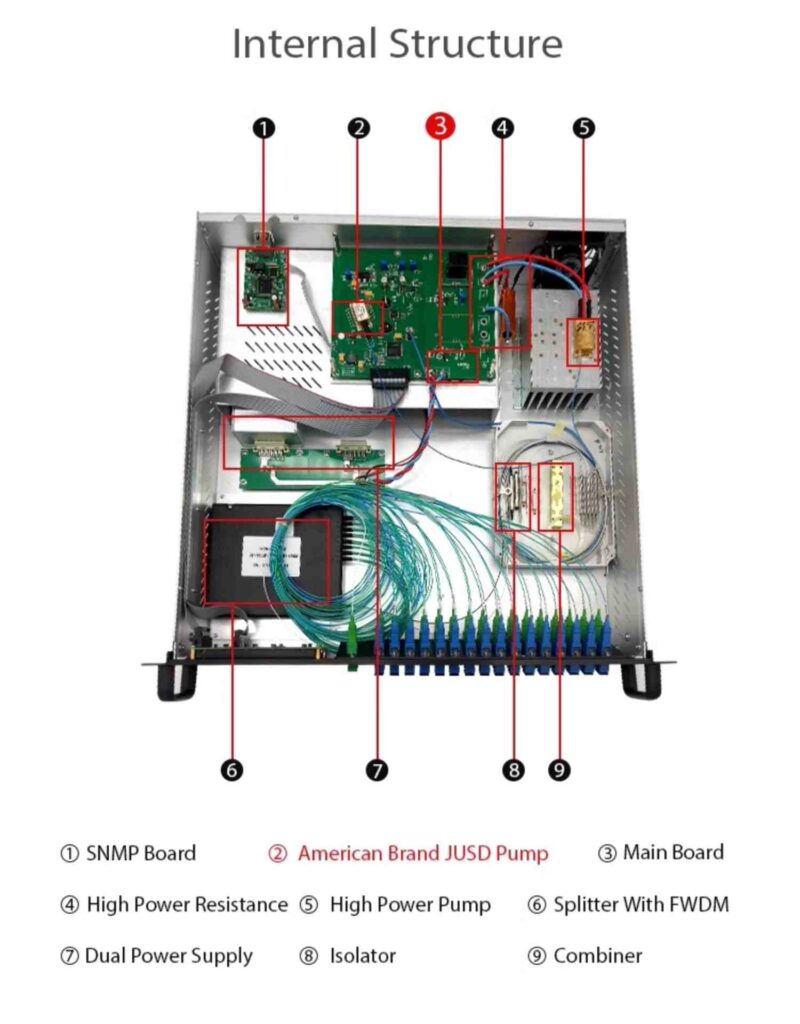

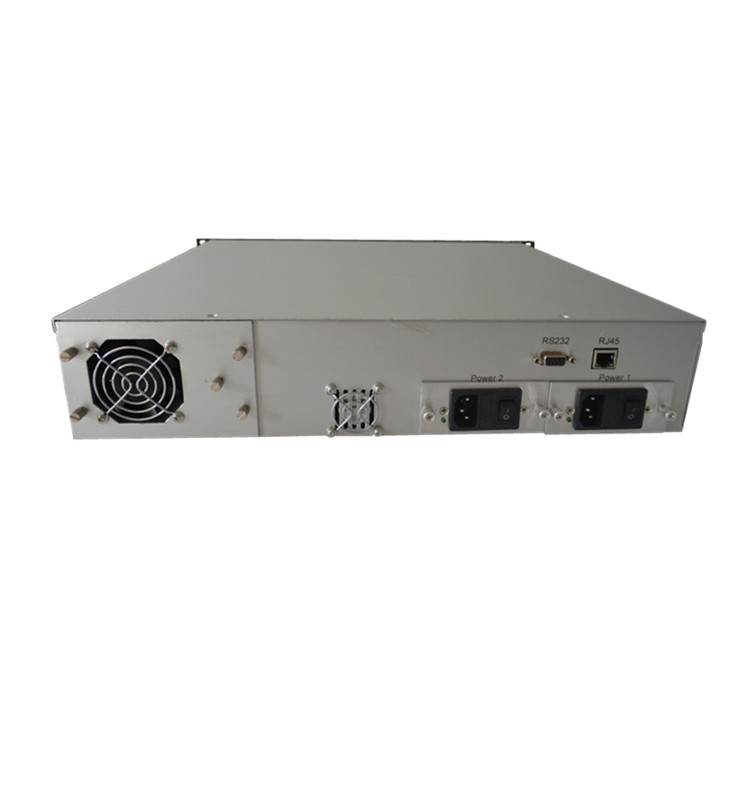

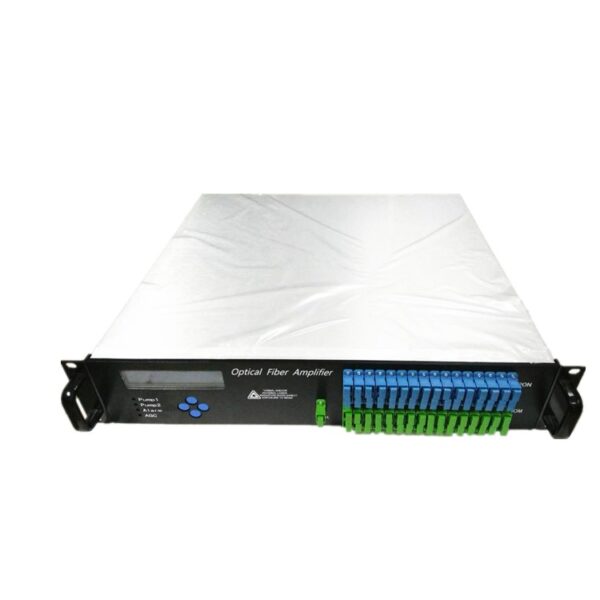

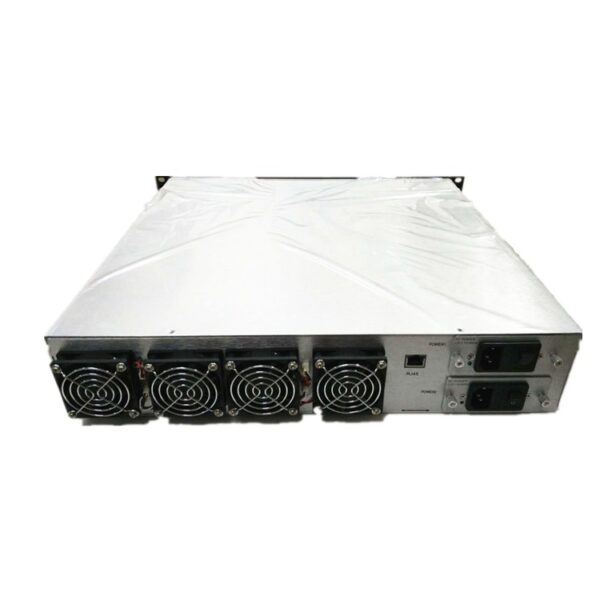

32 Port EDFA Structures

32 port high power radio and television 1550nm erbium ytterbium fiber amplifier edfa for optical communication network, without wdm

32 port high power radio and television 1550nm erbium ytterbium fiber amplifier edfa for optical communication network, without wdm
