Description
OLT Features
- Minimal deployment: The OLT and ONU automatically networking, plug and play.
- Ultimate experience: Has a large number of connected devices, it provides 1 GPON ports on the user side, and each GPON port can support up to 128 ONU, it supports Wi-Fi management of ONU, and has high stability operation.
- Intelligent operation and maintenance: Support cloud management, and can use the mobileAPP to scan the QR code for rapid scenario-based setup, enabling visualization of the enterprise network topology and remote Wi-Fi tuning.
- Good compatibility: The network interface is compatible with the SFP modules ofGPON / XG
- PON/ XGS-PON / 10GE /
OLT Specification
| Uplink Optical Interface | 1*SFP (GPON, XGPON,XGS-PON,10GE, GE)
|
| Downlink interface | 1*GPON, 4*GE, 1*USB
|
| Power Adaptor | Adapter DC12V/1.5A
|
| Consumption | <18 W |
| Operation | temperature -20℃～+60℃, humidity 10‒95% (non-condensing) |
| Dimension | 220*145*44mm(W * D *H) |
| Weight | About 800g |

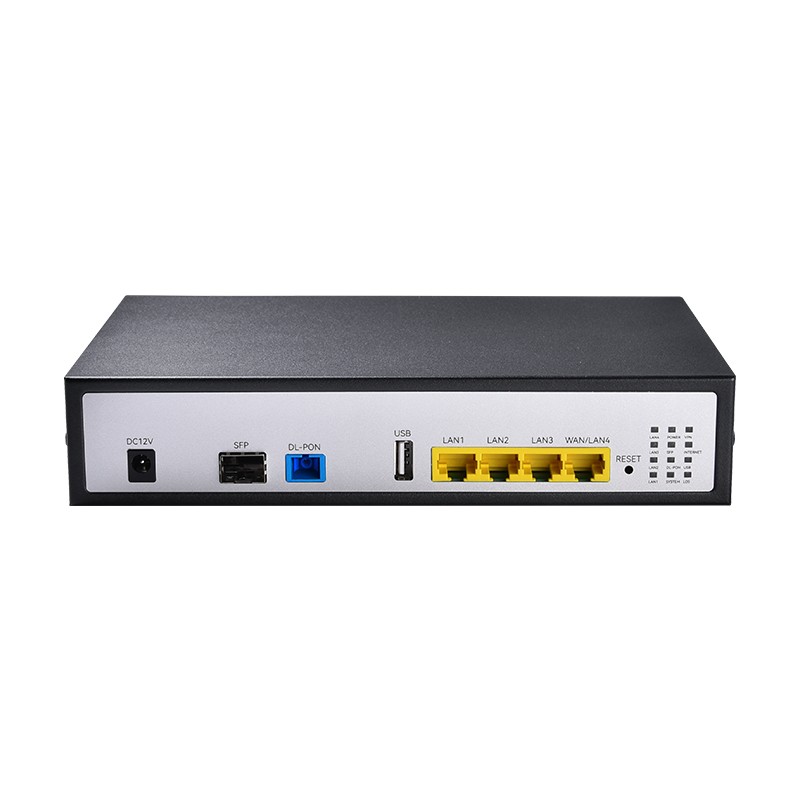

| Uplink interface | ·1*SFP port
·Support GPON / XGPON / XGS-PON / 10GE / GE |
| Downlink PON port | ·1*GPON
·Interface type: SC/UPC or SC/APC ·GPON parameters: TX: 1.5dBm～5dBm， RX: -8dBm～-28dBm |
| LAN port | ·RJ45 · 4*GE |
| USB | USB2.0 |
OLT Key features
| Ethernet switching (L2) features | |
| Layer 2 services | Layer 3 services |
|
|
| Multicast | QOS |
|
|
| AC Management | OAM |
|
|
| Security | VPN |
|
|
| Network Services | |
|
|
| Enterprise Network | |
|
|
OLT Remark:
P8101H doesn’t support Wi-Fi, but it can configure the Wi-Fi of the downlink ONU AVASA support:
- Remote management and maintenance
- mobile APP management PC-side Web management
Remark: The pictures in this document may be different from the actual product, please refer to the actual product.
