Where Is The MPO to LC Breakout Cable Used?

MTP MPO to LC beakout cable are mainly used in the following three core scenarios, significantly improving deployment efficiency by serving as a bridge between high-density wiring and traditional equipment:

MPO to LC cable for high-density cabling in data centers‌

Switch port expansion‌

MPO to LC cable can be used for For 40G/100G switches (QSFP+/QSFP28 interfaces) backward compatible with 10G devices (SFP+ interfaces):

  • ‌40G network‌: MPO 12 cable → branch into 4 groups of LC duplex patch cords → connect 4 x 10G servers‌;
  • ‌100G network‌: MPO 24 fiber cable → branch into 6 groups of LC duplex patch cords → expand 6 x 25G ports‌.

MPO LC breakout cable advantages‌: MPO to LC cable can save 75% of cabinet space and avoid excessive plug-in and pull-out losses of switch ports‌.

Server/storage device interconnection ‌

In the hyper-converged architecture, centralized wiring is performed through MPO trunk cables, and the LC connector is flexibly connected to distributed storage nodes, reducing the complexity of cross-cabinet jumpers ‌.

8 Fiber MPO 4LC Duplex Fiber Breakout Cable SM Blue Static Pack
12 fiber mpo to lc breakout cable om3 uniboot aqua pc

MPO LC breakout cable for harsh industrial and communication environments

Integration of optical links in communication base stations

  • MPO LC breakout cable are used between RRU (radio unit) and BBU (baseband unit) to merge multiple signals into a single high-density cable, which resists electromagnetic interference and reduces the proportion of cables inside the base station by 40%.
  • LC port expansion is achieved through the MPO adapter panel in the distribution box, and 1U space supports 144 core fiber management.

Direct connection of industrial equipment

Armored MPO to LC breakout cable are used in chemical/ship scenarios, with LSZH flame-retardant outer sheaths to prevent oil corrosion, and metal threaded LC connectors to ensure stable connection in vibration environments.

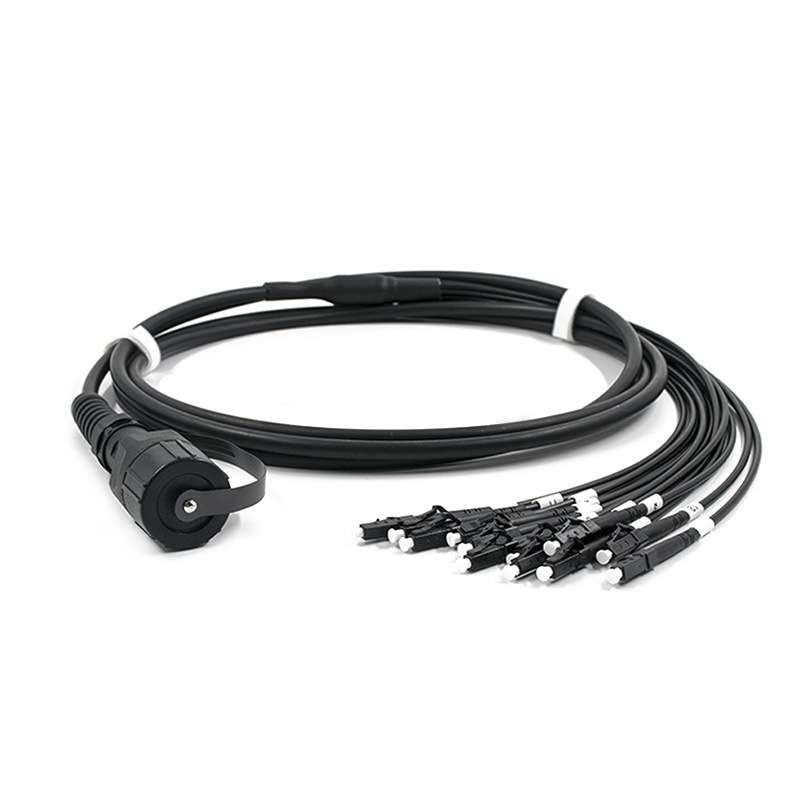

outdoor odva mpo 12 to lc patch cord cable fanout 2.0mm pigtails in black
12 fibers mpo/mtp to lc breakout cable with armor spiral tube

MTP to LC cable for network testing and maintenance‌

Optical module diagnosis‌

  • Use MPO LC breakout cable to connect the OTDR tester to the backbone link:
  • Connect the MPO end to the patch panel test port, and the LC end to the instrument to quickly locate the 40G/100G link interruption point‌.

Fiber link polarity correction‌

  • Type A jumper (MPO Key up-LC direct pass) is used for direct device connection (such as switch → server);
  • Type B jumper (MPO Key up-Key up) needs to be used with an adapter to correct the polarity to avoid signal reversal at the LC end‌.
8 Fiber MPO 4LC Duplex Fiber Breakout Cable SM Blue Static Pack

MPO To LC Breakout Cable Application Notes

ItemTechnical points
Bandwidth matchingMultimode MPO patch cords must match OM3/OM4 fiber (40G/100G transmission), and single-mode patch cords are recommended to use G652D optical fiber.
End face cleaningThe MPO end face needs to be cleaned with a special fixture, and the LC ceramic ferrule should be wiped unidirectionally with a dust-free stick to prevent scratches.
Bending radiusThe minimum bending radius is ≥30mm (20 times the wire diameter) to avoid micro-bending losses.

MPO to LC Breakout Cable FAQ

How to correctly install the MPO LC cable?

Push the MPO axially and rotate the LC 90° to lock it. When you hear a click, it means the installation is successful. Pay attention to real-time cleaning and monitoring of the connector status.

How long is the life of the MPO to LC fiber cable?

The theoretical life of the MPO to LC fiber cable is usually 10-15 years, but the actual service life is significantly affected by the installation environment, operating specifications and maintenance quality.

For example, industrial scenarios require mandatory inspection and replacement every 5 years (reduced to 3 years in harsh environments), while data centers use OTDR quarterly monitoring and immediately replace if the loss exceeds the standard> 0.5dB.

Can you provide MTP to LC cable?

Of course, MTP is a USCONEC brand connector. Please inform us of your quantity, male/female MTP connector, cable length and fiber type, and loss requirements. Our company will provide a detailed quotation immediately.

What is the MOQ of LC to MPO Cable?

Normal types of LC to MPO cable have stock, if not have stock, our production is fast, please tell us your request to sales@yingdapc.cn.
