Pushable Fiber Patch Cable

Professional Pushable Fiber Patch Cable Manufacturer

Pushable Fiber Patch Cable are simplex or duplex fiber optic cable pre-terminated and polished with SC connectors. After being pushed or pulled through a microduct, pipeline, or wall holes, the smooth wall protective sleeve is easily removed and SC outer housing and inner white main body are snapped into place.

This metal or plastic pushable SC connector functions are similar like the filed installation connector but without mechanical connection or fusion splicing, simplify the deployment of fiber where one or two fibers are required like FTTH network, keep optical reliability and fiber protection but greatly reduced the installation costs and time.

The Pushable Fiber Patch Cable are mainly used in below application:

  • Fiber to the Home (FTTH) installation
  • Business class services
  • Fiber optic transformation in old residential areas
  • Drop celling fiber optic cable
  • Cell backhaul or any other small count delivery

China Best Pushable Fiber Patch Cable Manufacturer

Yingda has been designing and producing this connector for nearly 7 years. After many improvements and upgrades, different versions are suitable for different customer needs and scenario requirements.

All Pushable Fiber Patch Cable are manufactured according to international standards GR-20 and Telcordia GR-326 and GR-1435.

  • SC/APC-SC/APC connectors
  • 2mm/3mm yellow cable
  • IL<0.3dB, RL>60dB
  • 1pc/bag
  • LC/UPC-LC/UPC duplex connectors
  • 2mm/3mm yellow cable
  • IL<0.3dB, RL>50dB
  • 1pc/bag
  • ST/UPC-ST/UPC duplex connectors
  • 2mm/3mm yellow cable
  • IL<0.3dB, RL>50dB
  • 1pc/bag
  • FC/APC-FC/APC connectors
  • 2mm/3mm blue cable
  • IL<0.3dB, RL>60dB
  • 1pc/bag
  • ST/UPC-LC/UPC duplex connectors
  • 2mm/3mm yellow cable
  • IL<0.3dB, RL>50dB
  • 1pc/bag
  • LC/UPC-E2000/APC duplex connectors
  • 2mm yellow cable
  • IL<0.3dB; RL>50dB(UPC),>60dB(APC)
  • 1pc/bag
  • SC/APC-LC/APC connectors
  • 2mm/3mm yellow cable
  • IL<0.3dB, RL>60dB
  • 1pc/bag
  • MU/UPC-MU/UPC connectors
  • 2mm yellow cable
  • IL<0.3dB, RL>50dB
  • 1pc/bag

Free Sampling

With rich production experience and the most stringent testing standards, our engineers will carefully study and provide feedback to customers within 24 hours for special requirements such as printing customer logos, modifying cable structures, adding or removing fiber reinforcements, and customizing packaging.

Pushable Fiber Connector Types

Yingda offer the following 5 types of customized metal and plastic protective sleeves for Pushable Fiber Patch Cable. Each sleeve features a perforated top for easy tethering and dragging. The entire installation process requires no additional splicing, stripping, or cleaning tools; End user only need simply pulling fiber optic cable and connect it. This makes installation quick and efficient, easy to maintain, and user-friendly.

How to put on and take off the protection sleeve?

✅If the whole connector is enclosed in a protective sleeve, after pulling fiber optic cable out of the designated hole, simply remove the sleeve without tools by unscrewing the nut or opening the sleeve. Then, plug the connector into any fiber optic device port you desire.

✅If only part of the fiber optic connector is enclosed in a protective sleeve, after pulling fiber optic cable out, simply remove the nut or open the sleeve too. Install the SC connector housing and white body according to the instructions. Then, connect the connector to the fiber optic device port to establish network connectivity.

This is the heading

Lorem ipsum dolor sit amet consectetur adipiscing elit dolor

This is the heading

Lorem ipsum dolor sit amet consectetur adipiscing elit dolor

This is the heading

Lorem ipsum dolor sit amet consectetur adipiscing elit dolor

This is the heading

Lorem ipsum dolor sit amet consectetur adipiscing elit dolor

This is the heading

Lorem ipsum dolor sit amet consectetur adipiscing elit dolor

Pushable Fiber Patch Cable Types

Yingda offers Pushable Fiber Patch Cable for pushing or pulling applications with a 3MM BOOT DIAMETER. This solution is suitable for any indoor outdoor fiber optic cable that can be stripped to meet this diameter. If the fiber inside is bare  fiber or 0.9mm tight buffer, we may add loose tubes, heat shrink tubing, and breakout kits during the manufacturing process to protect and reinforce the fiber and ensure its tensile strength. Please contact our sales staff for more details.

Pushable Fiber Types

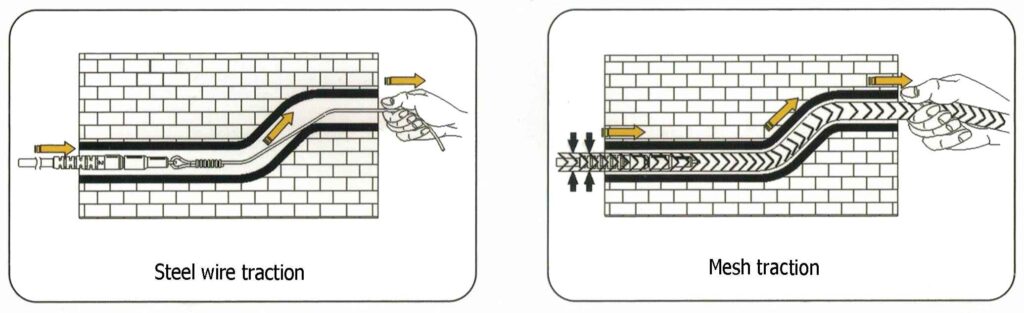

Pushable Fiber Patch Cables with metal or plastic protection sleeve are typically used in narrow pipes, microducts, conduits, or wall openings. For example, in older residential areas without pre-buried fiber, fiber-to-the-home (FTTH) installation is essential. These fo cables require only a small opening in the wall and a pull cord for seamless installation. Because the cable sheath must be well protected, and the fiber inevitably bends during the pulling process, G.65A72 or G.657B3 fiber is generally recommended over G652D.

Learn More:

Pushable Fiber Patch Cable Tension Strength

There are two main factors affecting the tensile strength of Pushable Fiber Patch Cables:

✅Cable structure, installation method, type of reinforcement, and number of reinforcement cores. The tensile strength that each cable can withstand varies depending on these parameters. Therefore, it is important to understand your actual needs during the initial design phase.

✅The difference between long-term and short-term tensile strength can vary significantly.Do you know your requirements? What do you need is?

Our company Yingda has rich experience in production and R&D, we have a good control over the tensile strength that optical cables can withstand. Furthermore, we strictly control the production and quality inspection processes. Our internal quality standards are higher than the actual order requirements to ensure that all products can meet customer requirements.

For example:

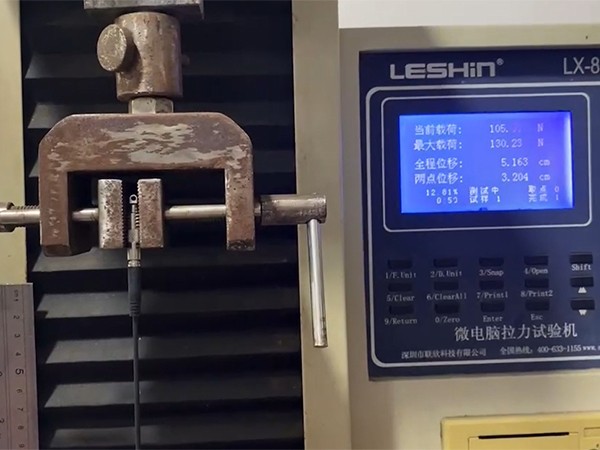

Our finished pushable patch cord, which are manufactured with outdoor central unitube cable structures and have been terminated, can withstand a tensile force of 120-130N.

Pushable Fiber Patch Cables Buying FAQ

Yingda accept start with small order to build up trust, but only focus on wholesaler, distributor or ISP, no retailer. Because the international freight cost for only few pieces are too high to afford, suggest you to buy local.

Yingda are fiber patch cord factory, no middle man, competitive price help you win more market.

It depends, our production time is fast, daily 10000pcs connectors.

Please leave your delivery address and details, then will check with if can door to door service or not.

It depends, please let us know your company details, then we will check with our agent in your country and let you know.

We only do TT, no credit, hope understanding and support. Then we can focus on our product quality more to help build long term business partnership.

Suggest to use G.657A instead of G.652D, an furthermore, if extremely limited space, suggest to use G.657B3, which bend radius is the smallest to 5mm.

Singe mode fiber optic patch cable is suitable for long distance transmission, especially G.652D.

Timely Delivery

High productivity efficiency, skilled front-line operators and strict production control ensure timely delivery.

Quality Assurance

High-precision testing equipment and top industry quality control system ensure high quality standards.

Competitive Price

Long-term stable supply chain and cost control that changes in line with market trends ensure the best price
