xgs pon splitter plc 1×32 250um ribbon fiber white input 1.5m, output blue, 8 ways fiber array x 4 group without connectors

The XGS PON Splitter 1×32 is a crucial component in fiber optic network infrastructure, designed to split one optical input signal into thirty-two output signals, enabling efficient distribution of data in XGS – PON (10 Gigabit-capable Symmetric Passive Optical Network) systems.

Description

XGS PON Splitter 1×32 Features

  • Low Insertion loss
  • Low PDL
  • High Return Loss
  • Uniform Power Splitting
  • Compact Design
  • Wide Operating Wavelength
  • Wide Operating Temperature
  • Excellent Environmental & Mechanical Stability
  • Qualified Under Telcordia GR-1221 and GR-1209



XGS PON Splitter 1×32 Specification

Parameter Unit Specification (P Grade)
Channel Number 1X32
Operation Wavelength nm 1260~1650
Insertion Loss (Max.) dB 17.2
Uniformity (Max.) dB 1.6
Polarization Dependent Loss dB 0.3
Return Loss dB ≥50
Directivity dB ≥50
Operating Temperature -40~+85
Operating Humidity %RH ≤93
Storage Humidity %RH ≤93



Details of XGS PON Splitter 1×32

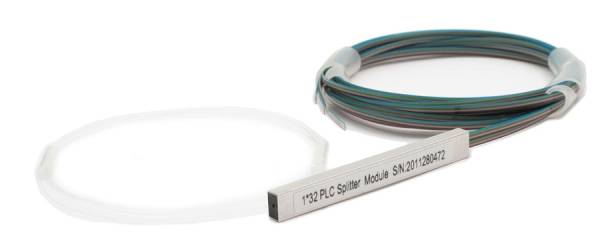

At the heart of the product is a rectangular metal encapsulation, typically marked with identifying information. For instance, labels like “1*32 PLC Splitter Module S/N 2011280472” indicate the splitter type (1-input to 32-output planar lightwave circuit) and the unique serial number, which helps in product identification, quality control, and after – sales support. This encapsulation safeguards the delicate internal optical components from physical damage and environmental factors such as dust and moisture.

xgs pon splitter plc 1x32 250um ribbon fiber white input 1.5m, output blue, 8 ways fiber array x 4 group without connectors




One end features a single, often uncolored or white-sheathed fiber, which serves as the input port for the optical signal. This fiber is responsible for carrying the incoming signal to the splitter module.

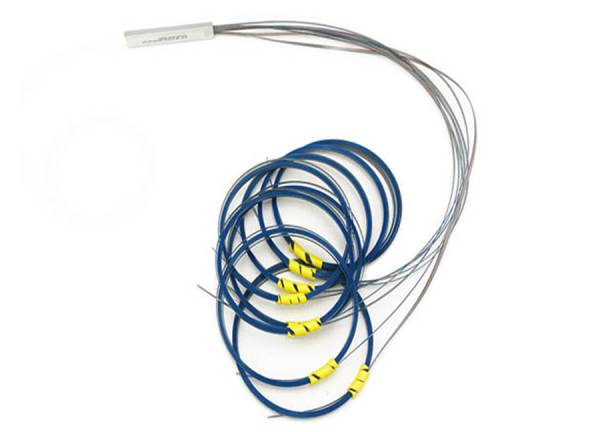

The other end is connected to 32 output fibers. These fibers can vary in appearance. In some cases, they are color-coded, like the blue – sheathed fibers seen in the images, which aids in easy identification and management during installation. Additionally, they are usually bundled together and secured with plastic ties or wraps (such as the white or yellow-and-black ones), which help in organizing the fibers, preventing tangling, and providing strain relief at the connection points to the splitter module. This bundling also simplifies the process of routing the fibers within fiber optic enclosures or distribution boxes.

xgs pon splitter plc 1x32 250um ribbon fiber white input 1.5m, output blue, 8 ways fiber array x 4 group without connectors
