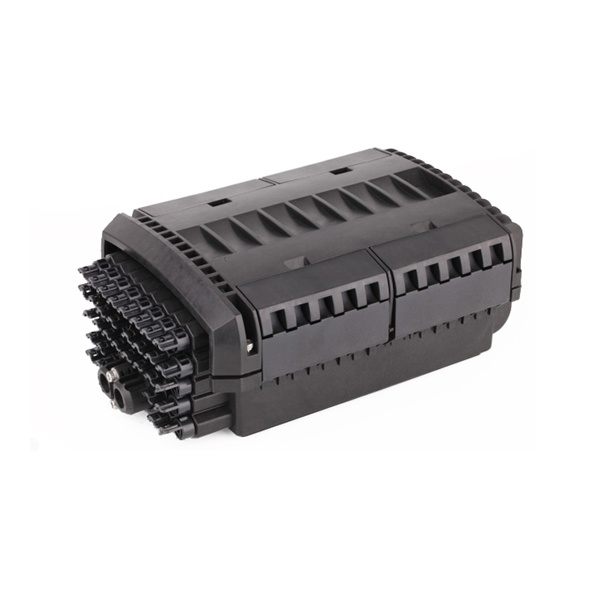

Ip68 Outdoor Fiber Box 32 Ports Ftth Drop Cable Outlet, 2 Cable Glands, 1 Mid Span Port, 48 Cores Max Capacity With Fiber Termiantion Tray

This fiber splitter closure is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system, up to 32 subscribers. The fiber splicing, and distribution can be done in this box, and provides solid protection and management for the FTTx network building.

SKU FDB0232F Category Tags , Brand:
SEND INQUIRY

Description

Features

  • Water-proof design with IP-68 Protection level.

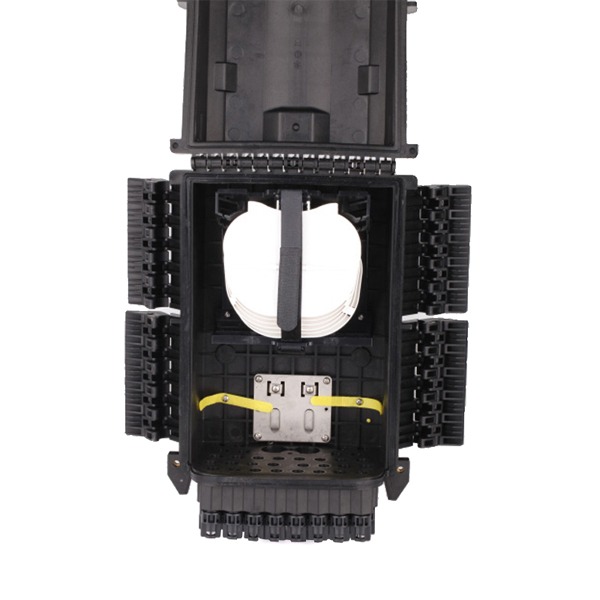

  • Integrated with flap-up splice trays and adaptor holder.
  • Impact test:IK10,Pull Force:1000N,Full rugged design.
  • All stainless metal plate, anti-rust bolts and nuts.
  • Fiber bend radius control more than 40mm.
  • Suitable for the fusion splice or mechanical splice.
  • 1:8 or 1:16 PLC Splitter can be installed in each splice tray as option.

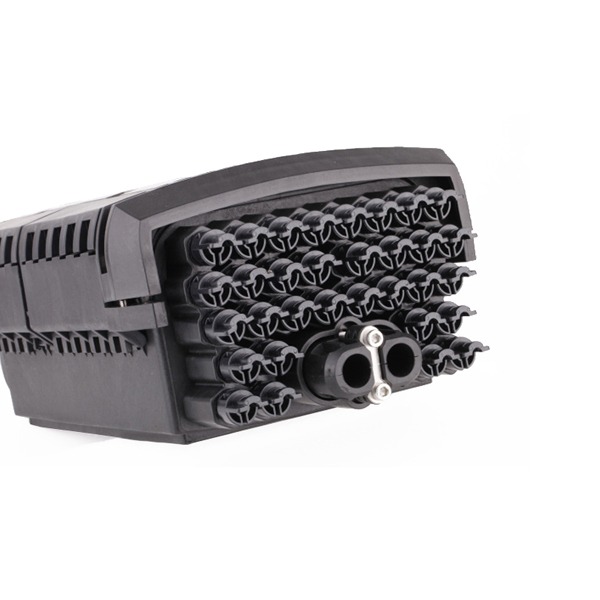

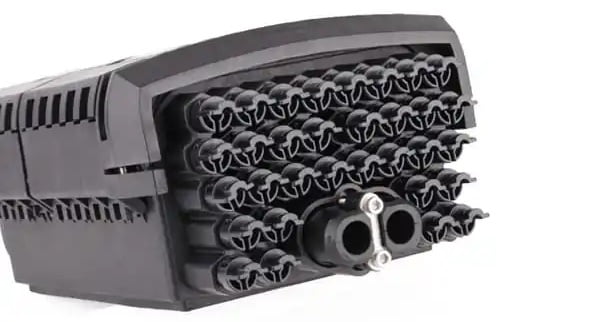

  • 1 mid-span cable entrance (10-18mm) for uncut cable.
  • 3mm glands for flat drop cable (defaulted) , 7mm or 5mm glands for round drop cable (optional).
  • 32 adaptors for drop cable patching.



Specification

Model FDB0232F
Dimensions (W*H*D) 385*245*150mm
Max capacity 96 cores single fiber =4* 24F trays
Splitter qty 4*1x 8 or 1×16 mini splitter
Cable Ports 2 uncut cable ports, 32 drop cable ports
Cable diameter In:ø17.5mm, out:ø2/4/7mm
Material PP+GF
Color Black
Protection Level IP68
Installation Wall-mounted/Pole-mounting
