Description
Waterproof cable use a single core cable or multi-core cable around SZ stranding around a center reinforcement to be as the cable core, precisely control the redundant length, vertical wrap aluminum-plastic composite tape, and then outer jacket extrude PE sheath.
Waterproof Cable Pigtails Application
The connector can be connected with various types of connectors like FC,SC,ST,LC,etc, and the connection between the main optical cable and the optical receiver.
Waterproof Cable Pigtails Features
- Water-resistant tape wrapped, good water resistance effect for harsh outdoor environments
- Lateral pressure resistance, corrosion resistance
- Reinforced by high strength steel wire, high tensile strength
- Good grounding performance
- Convenient installation, simple and reliable.
Waterproof Cable Specification
| Fiber count | Max. Outer diameter(mm) | Weight(kg/km) | Max. Tensile(N) | Min. Bend radius(mm) | ||
| Short term | Long term | Installation | Working | |||
| ≤4 cores | 9.8 | 83 | 600 | 200 | 20D | 10D |
| 11.8 | 110 | 1000 | 300 | 20D | 10D | |
| Storage temperature | -20~+70°C | |||||
| Working temperature | -20~+70°C | |||||
Patch Cord Specification
| Optical
performance |
item | Test condition | Singlemode | Multimode | |
| Insertion loss | UPC | SM:1310/1550nm | ≤0.2dB | ≤0.3dB | |
| Mm:850/1300nm | |||||
| APC | SM:1310/1550nm | ≤0.3dB | |||
| Return loss | UPC | SM:1310/1550nm | ≥55dB | ≥35dB | |
| Mm:850/1300nm | |||||
| APC | SM:1310/1550nm | ≥65dB | |||

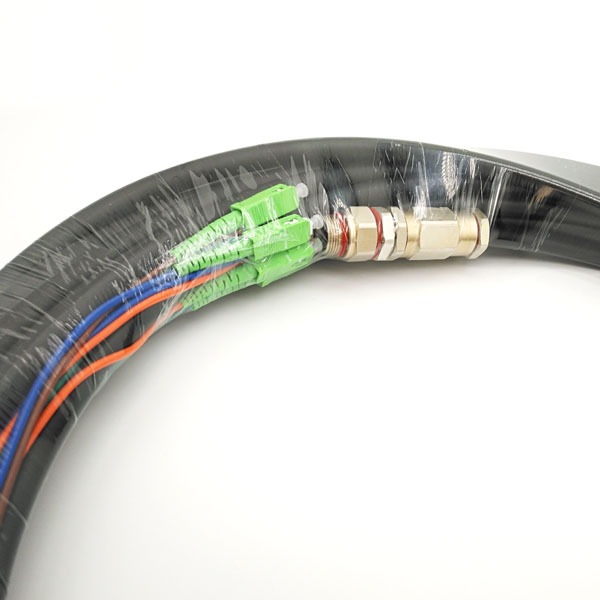

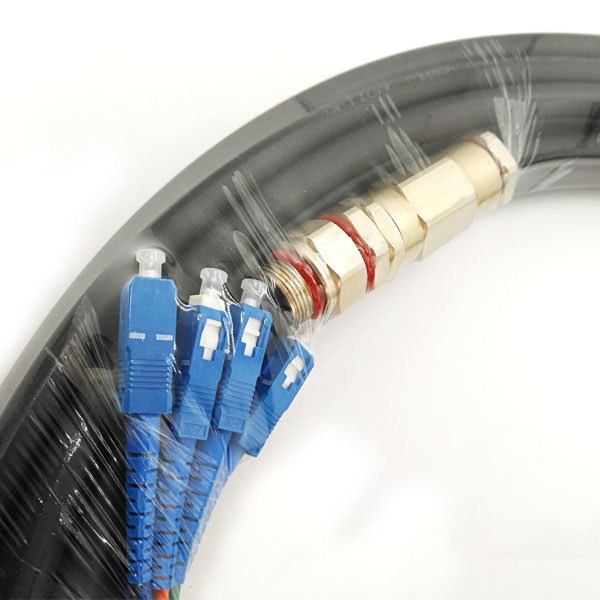

There are 2types of waterproof plugs to connect with the equipment outside, one is zinc alloy, and the other is copper, all meet IP68 protection grade with good sealing performance.

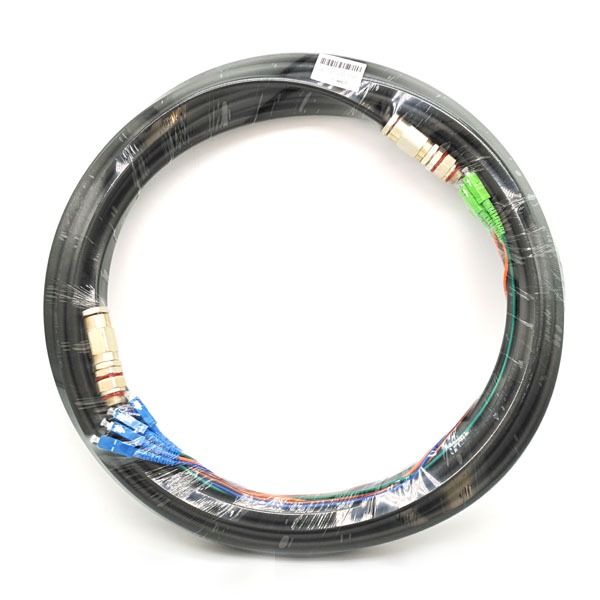

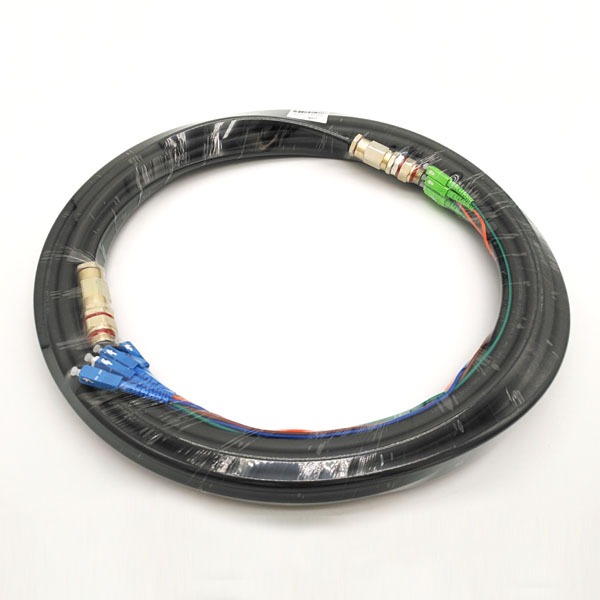

Yingda can provide various fiber optic connectors with waterproof cable, SC LC FC ST E2000, etc. and the fiber capacity can be 1 core, 2cores, 4cores, 6core, 8 cores or 12cores.
