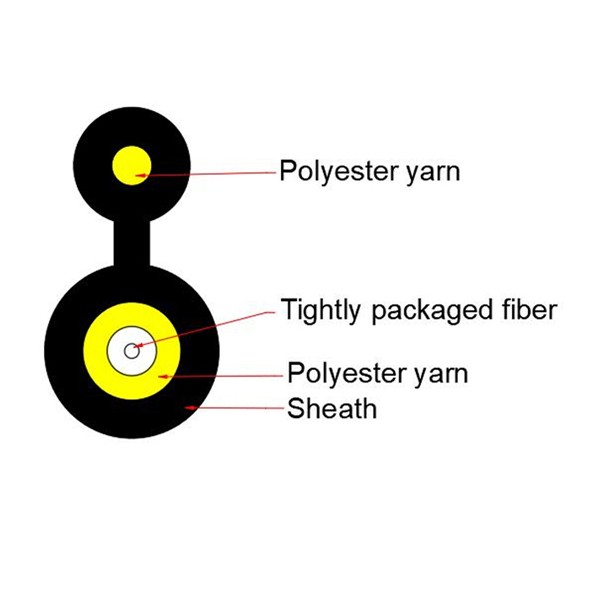

Microduct Pushable Fiber Optic Cable SC/APC To SC APC, Figure 8 Fiber Optic Cable 1m 3.0mm LSZH G657A1 Black, Simplex 9um, with polyester yarn

Outdoor Figure 8 Drop Cable with 1 fiber G657A2 SM with SC/APC Connectors, 30 ~200m Length

Description

Pushable Fiber Optic Cable Features

  • All patch cords meet GR-20, GR-326 and GR-1435 standards
  • Available in SC/UPC, SC/APC connectors with 3mm boot
  • Metal wall protection sleeve is easily removed and outer housing is snapped into place.
  • No need other fiber optic tools for whole installation.

Pushable Fiber Optic Cable Technical Specification

microduct pushable pre terminated armored fiber optic cable sc/apc to sc apc 1m 3.0mm lszh g657a1 black, simplex 9um

item Parameter
Fiber type G657A2
Number of fiber 2 core
Tight buffer material PVC (blue, orange)
Diameter 0.9±0.05mm
Strength member Material Kevlar yarn
Self support messenger Material Galvanized steel wire 0.4*3=1.2mm
Outer sheath Material LSZH
Cable size (height*width) (2.4±0.2)*(3.6±0.2)=(6.7±0.3)mm
Cable weight 28kg
Installation temperature range (℃) -20 ~+60
Operation and transport temperature (℃) -15 ~+70
Min bend radius (mm) Long term 15D
Short term 30D
Min. Allowable tensile strength/KN Long term 300
Short term 660
Crush load (N/100mm) Long term 100
Short term 500



This metal pushable protective sleeve looks like a bullet and there is hole on top of the case, and comes with anti-slip texture on surface, internal threaded design allows for a tight connection with the connector body. Due to internal structural design limitations, the ferrule end face cannot be fitted with a dust cap when using this metal head. After removing the metal head, be sure to clean the ferrule end face again before docking.

pre terminated armored fiber optic cable sc/apc to sc apc metal connector 1m 3.0mm lszh g657a1 black, simplex 9 125um

Yingda FAQ for Buying Fiber Optic

EXW, FOB, CFR, CIF, DDU, DDP, CPT are optional.

TT, Paypal, Escrow, Alipay, Wechat are optional, no credit.

Yingda accept small bulk order, and sample order. If retailer, please consult our fiber optic distributor in local.

Yingda support team working time: 9am-18pm from Monday to Friday, but AI robot will be always online, you can leave message, will get back to you on the first sight your mails.

If urgent, please CHAT ON WhatsApp:+8618688982406

Yingda productivity is high efficiency, very fast. Normally 2-15 days on different quantity. Let's talk for more details.

Yes, we can do pack or assembly like your requirements, please specify details in purchase order.
