144 Cores Plastic MPO Fiber Cassette ABS White for MTP Panel

Description

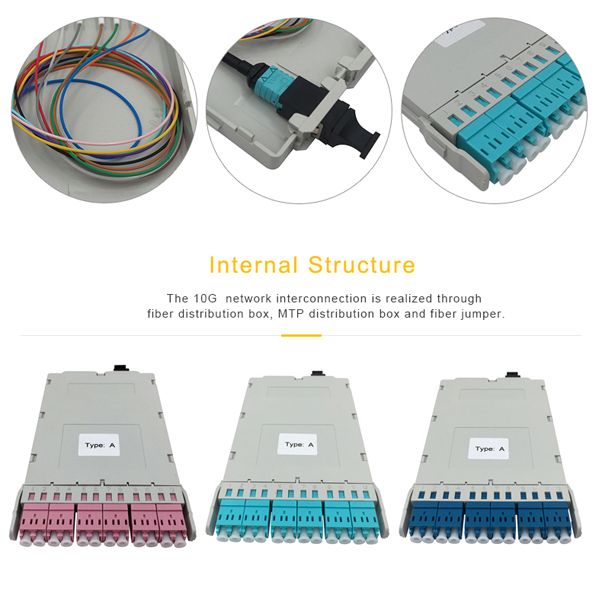

MPO Fiber Cassette Structure

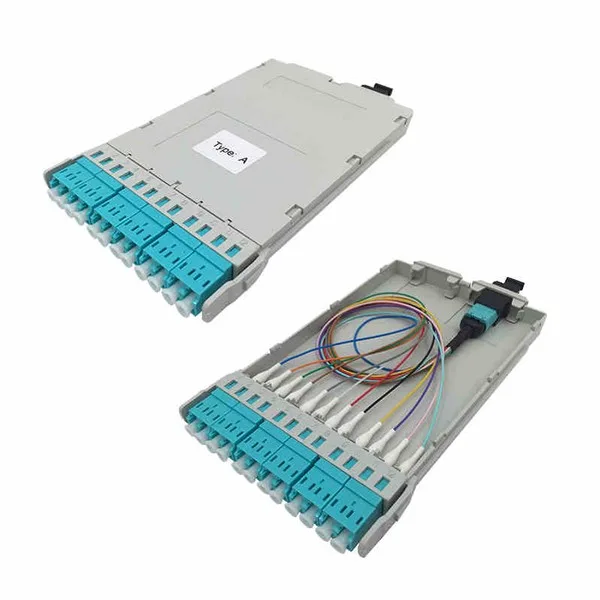

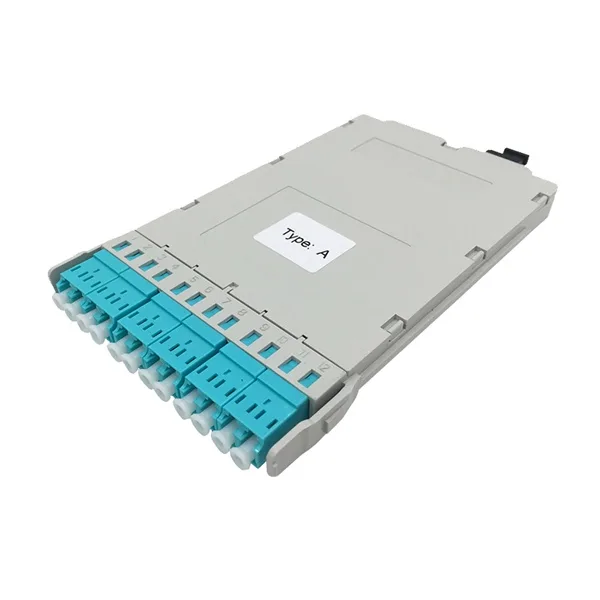

This 12-core MPO module, featuring the specification of 1xMPO/12F – 6xLC DX OM3 and constructed with white plastic, plays a crucial role in 10G network interconnection.

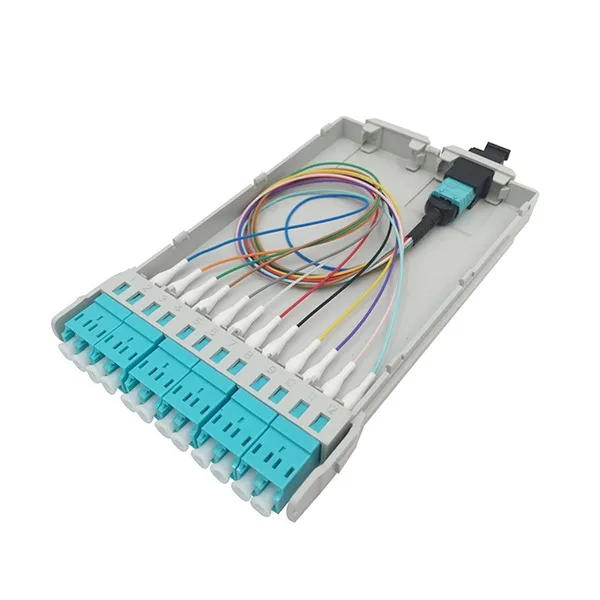

Inside, the colorful optical fibers enable signal transmission. The MPO connector at one end and LC connectors at the other end are precisely arranged. The white plastic casing provides protection and structural support. It can work in coordination with fiber distribution boxes and MTP distribution boxes, along with fiber jumpers, to realize efficient 10G network interconnection, ensuring stable and high – speed data transfer within the optical fiber network system.

MPO Fiber Cassette Features

Adopting high-strength ABS engineering plastic injection molding, high strength and durable,
All parts meet ROHS and environmentally friendly
The adapter and device are clamped at a 30 degree angle to ensure that the bending radius of the jumper cable and tail fiber have a storage space of more than 2cm.
Single mode multimode fiber can be used
6pcs LC duplex adapters and 1pc 12 fiber MPO/MTP adapter to connect MPO to 6LC breakout cable
MPO MTP truck cable polarity A B C can be choose

Plastic MPO Fiber Cassette Specification

Product name	Plastic MPO Cassette
Fiber count	Max.12 cores
MPO Adapter qty	1pc 12 fiber MPO adapter
Fiber optic adapter	6pcs LC duplex adapters
Material	Plastic
Compliant	TIA/EIA-568-C.3
Installation	Standard EIA 19″ Rack

Detailed Display of MPO Fiber Cassette

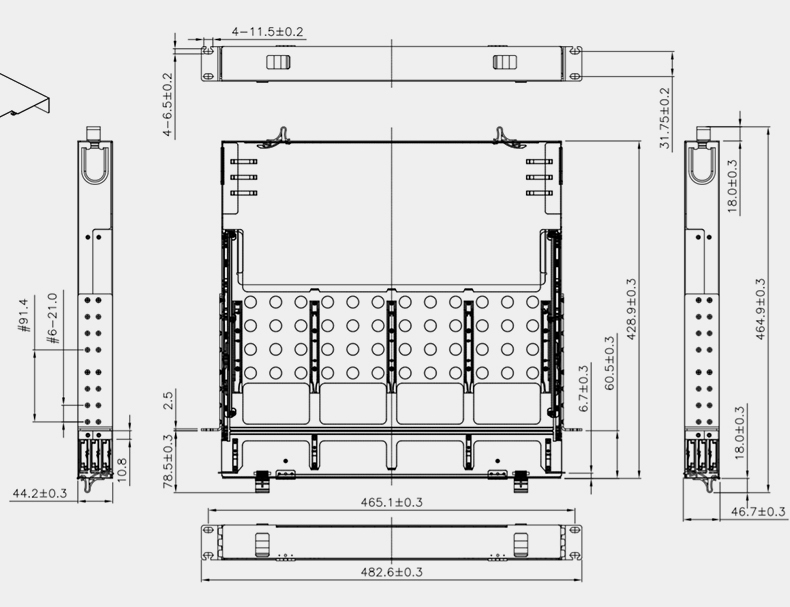

This patch panel, with precisely-defined dimensions (as shown in the figure), features a structure to hold four cassettes. Its standardized measurements ensure proper installation. Designed for fiber optic systems, it provides organized space for efficient 10G network interconnection via the cassettes.
