Pigtail SC SM Specification
| Item | Value |
| Connector | SC |
| Operating wavelength | 1260-1650nm |
| Fiber type | Singlemode fiber G652D, G657A2, G657A1, G655, G657B3 |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex Φ3mm |
| Polish manner | APC 8° |
| Cable color | white, |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multi mode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Pigtail SC SM Details

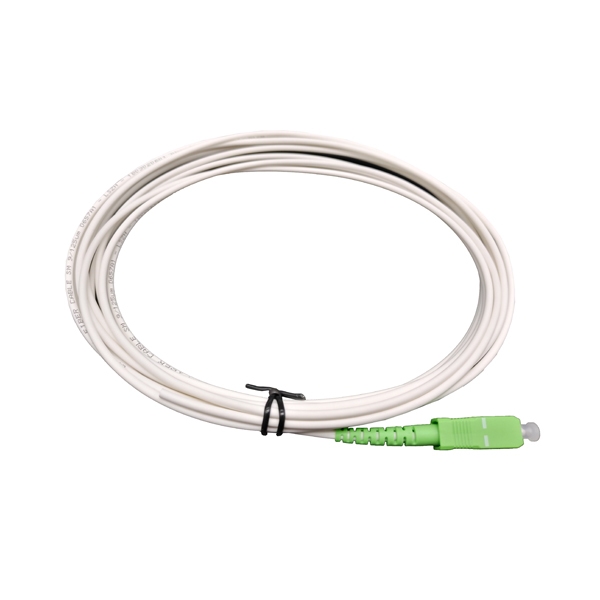

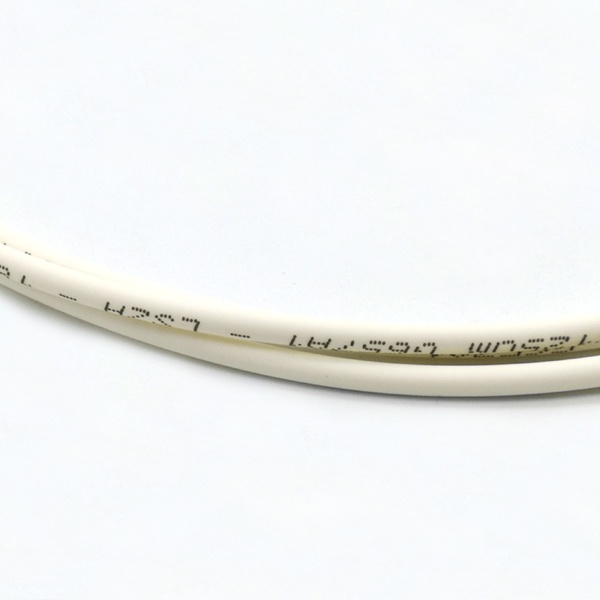

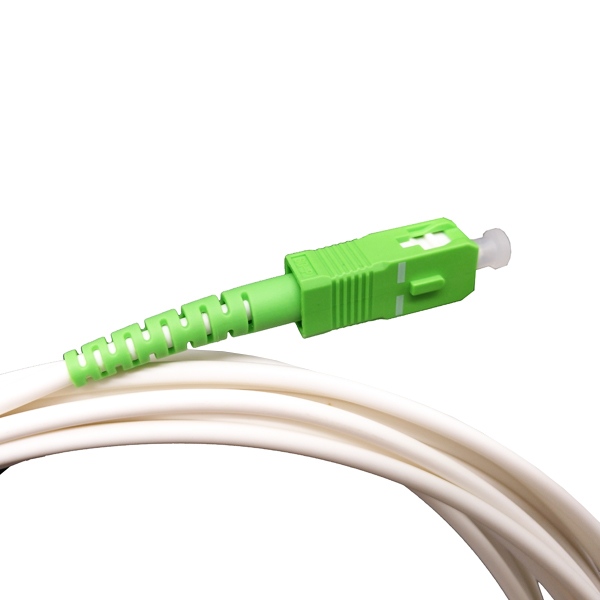

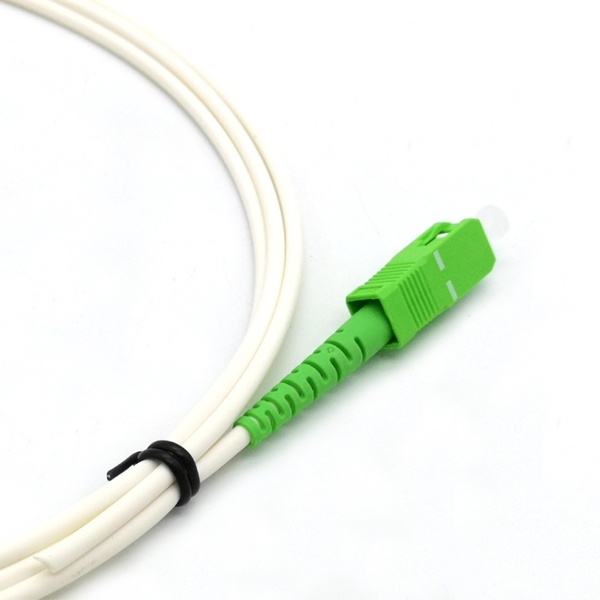

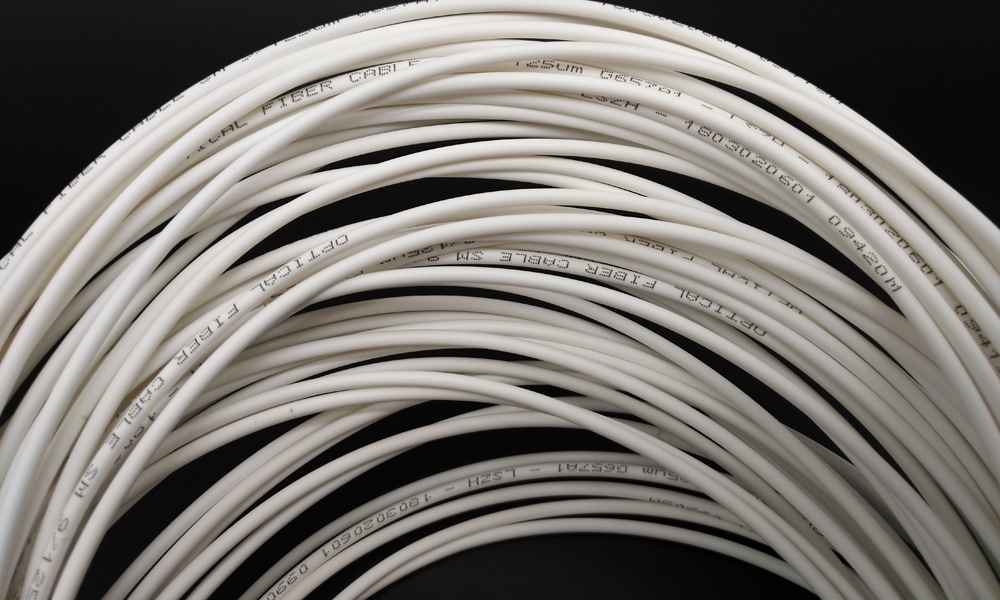

SC/APC pigtail use single mode fiber G.657A1 LSZH white jacket 3.0m dimeter, inner with aramid yarn and 0.9mm tight buffer cable. Yingda support customer brand name on the cable jacket. If need, please tell us our sales reprentatives.

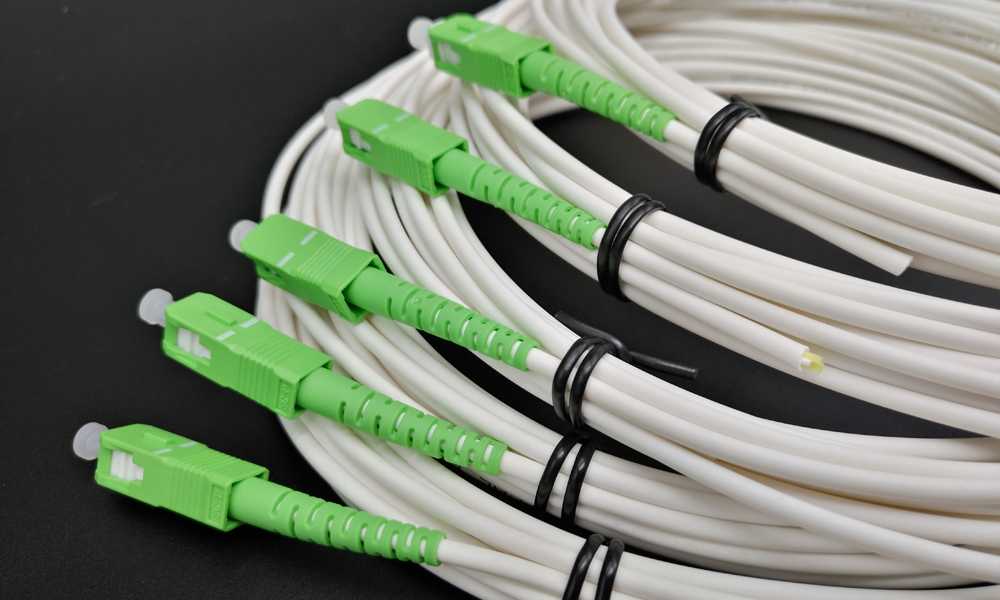

Each patch cord pigtail will be wrap wth cable ties, about 2rolls a meter, then you can count the rolls to know how long of the cable. And we will pu on the dust caps after test.

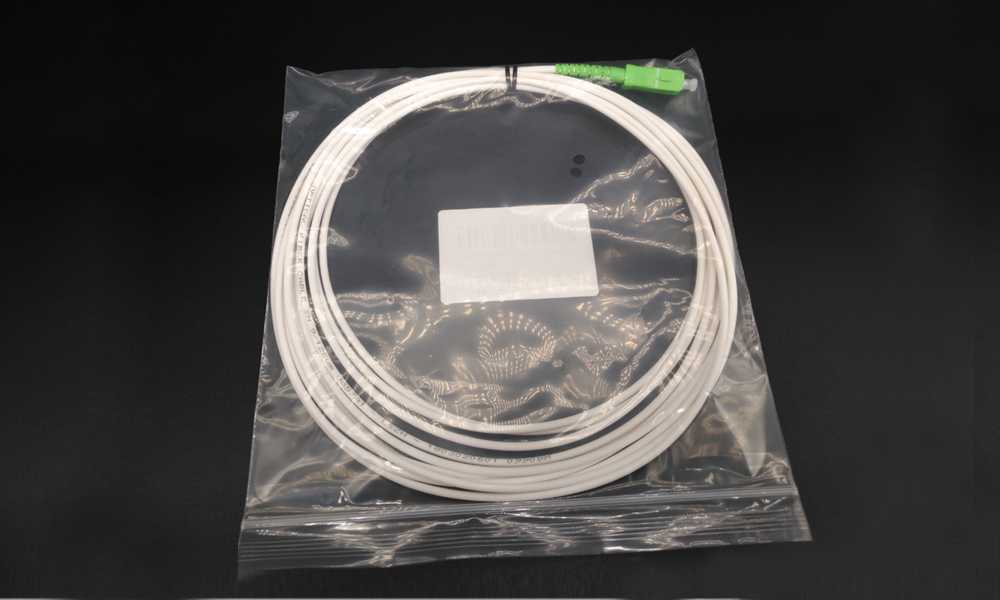

Each pigtails will be pack in a plastic bag with test data on the stickers, support to print customer information on the labels, please discuss with sales for details.
Pigtail SC SM Features
- High repeatability and high return loss
- High stability and good interchangeability
- Low insertion loss and high reliability
- Three types of fiber end faces: PC, UPC, APC
- The entire series of optical fibers can be used: multi-mode (50/125, 62.5/125, OM3, OM4, OM5), single-mode (G.652, G.655, G.657, etc.)
Pigtail SC SM Application
- Fiber Optic Telecommunications
- LAN (Local Area Network
- FTTH (Fiber To The Home)
- CATV&CCTV
- High speed transmission systems
- Fiber optic sense
