Description
Features
- Standard boxes along with custom configurations for OTDR applications.
- Compact and rugged packaging.
- Portable for field use.
- Prevents fiber damage and ensures accurate results.
- Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
- Compound latch for positive seal and easy opening with locking feature.
- Water and dust prove allowing the unit to be taken into almost any environment.
- Case can house up to 2,000 meters of fiber.
- Auto Purge Valve for changes in altitude and temperature.
Applications

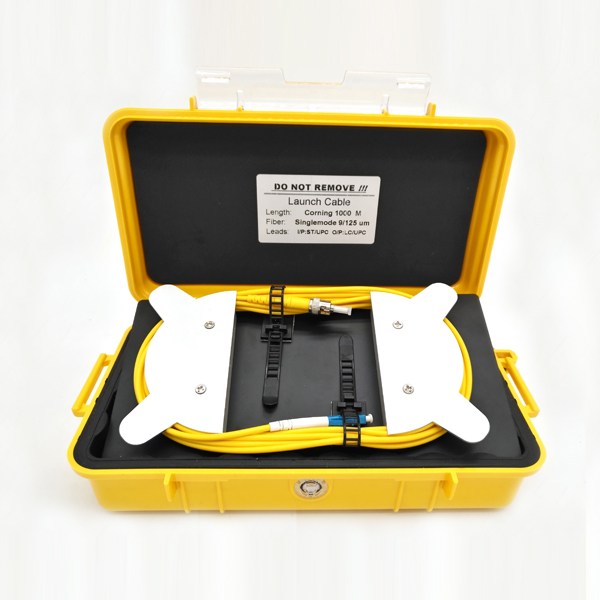

- Use as OTDR launch/receive cable.
- Test link loss with an OTDR.
- Measure insertion loss and reflectance of near/far end connector.
- Pulse suppressor for the first reflection at the beginning of a fiber.
Specifications
| Mechanical & Environmental Characteristics | |
| Dimension 1 （The small size） | 23.8CMx 14.1CM x 6.7CM |
| Dimension 2 （arge size） | 30.4CMx 24.8CM x 12CM |
| Material | SR Polypropylene |
| Color | Yellow |
| Weight | 0.75kg/3.5/kg without fiber |

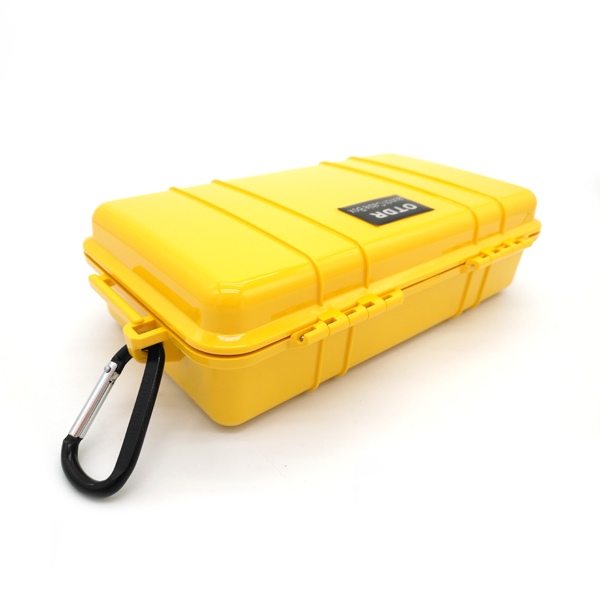

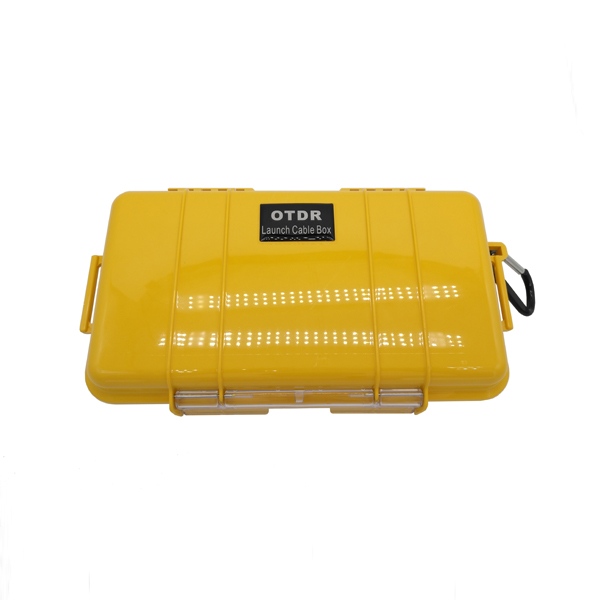

| Packaging | Rugged, hard-shell transit case |
| Storage Temperature | -40O to +85O C |
| Operating Temperature | -40O to +85O C |
| Humidity | 0 to 95%, non-condensing |
| Fiber & Connector Characteristics | |
| Fiber Types | G652D, G657A, OM1, OM2, OM3, OM4 |
| Fiber Length (m) | 100 up to 20000 (max) |
| Lead Length | 2 Meters, 3mm buffer |
| Typical Loss | <0.5dB @ 1310 for 1000 meters |
| Connector Type | SC/LC/FC/ST |
| Polish | PC, UPC, APC |
| Return Loss* | UPC>=50dB, APC>=60dB, PC>=35dB |
| Repeatability (dB) | <=0.2 (1000 times) |
| Exchangeability (dB) | <=0.2 |
