Description
FO Splice Box Features

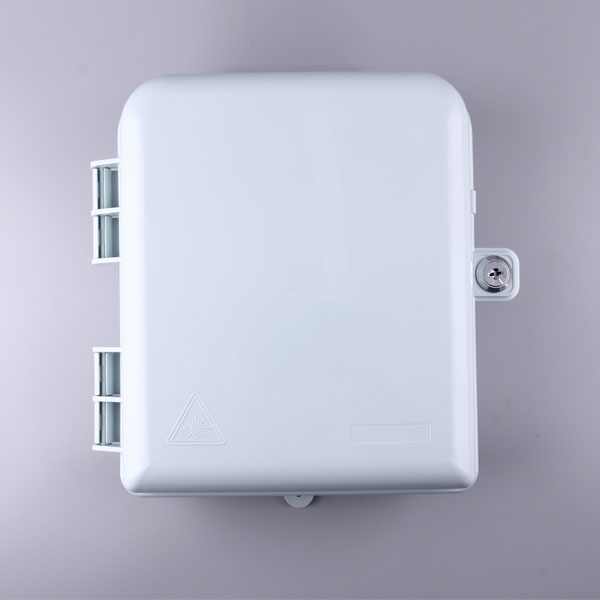

- Total enclosed with key and buckle, square shape, light weight, compact size;
- High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging, resistance to chemical and U.V attack;
- Clampfor feeder cable and drop cable, mix fiber splicing, fixation, storage, distribution in one;
- Cable, pigtails are running through own path withoutdisturbing each other;

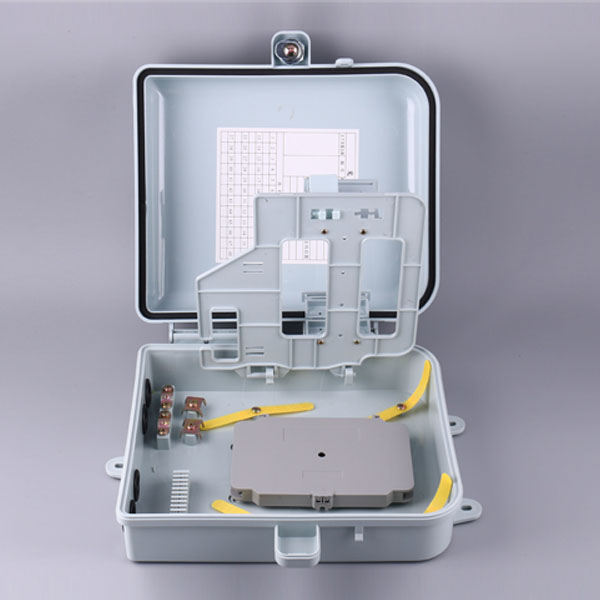

- Rotate platecan be flipped up, front for 1:16 LGX splitter module, bottom with 2 pcs 24 core splice trays;
- Feeder cable can be placed by expression port,easy for maintenance and installation;
- Outdoor Wall mount or pole mount, IP65 protection class;
- Laser mark and logo print reserved on the lid.
FO Splice Box Specification
| Model | OTB-16A |
| Dimension(A*B*C) | 295*260*95/75mm |
| Max.Capacity | 24ores (single fiber) |
| Cable ports | 4 round ports |
| Cable diameter | Φ15mm |
| Splitter quantity | 1×16 LGX module/steel tube |
| Adapter quantity | – |
| Color | Grey |
FO Splice Box Standard Accessory
Heat shrink protection sleeve, metl key, round cable port seal,s wall mounting screws, cable clamps, nylon tie, buffer tube, label mark, etc

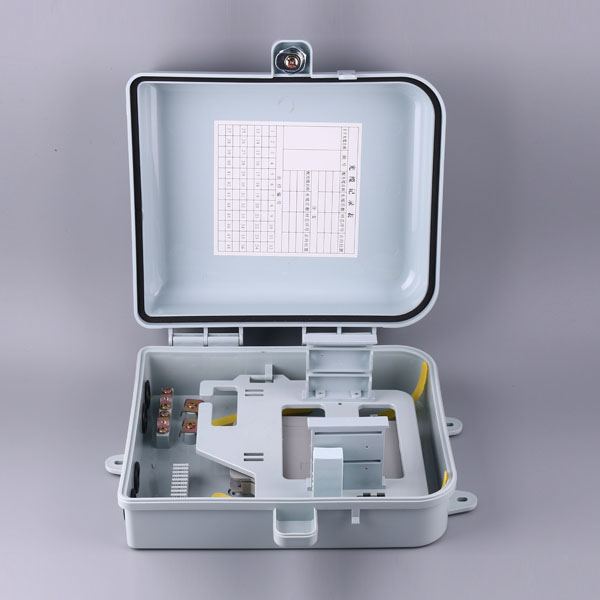

FO Splice Box Product Details

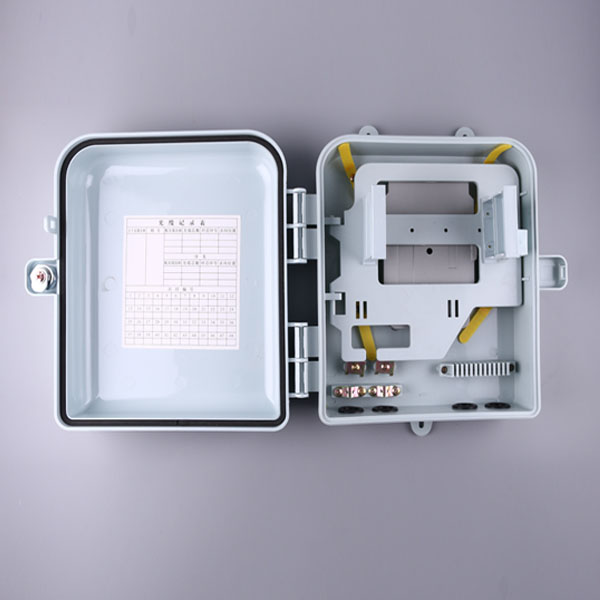

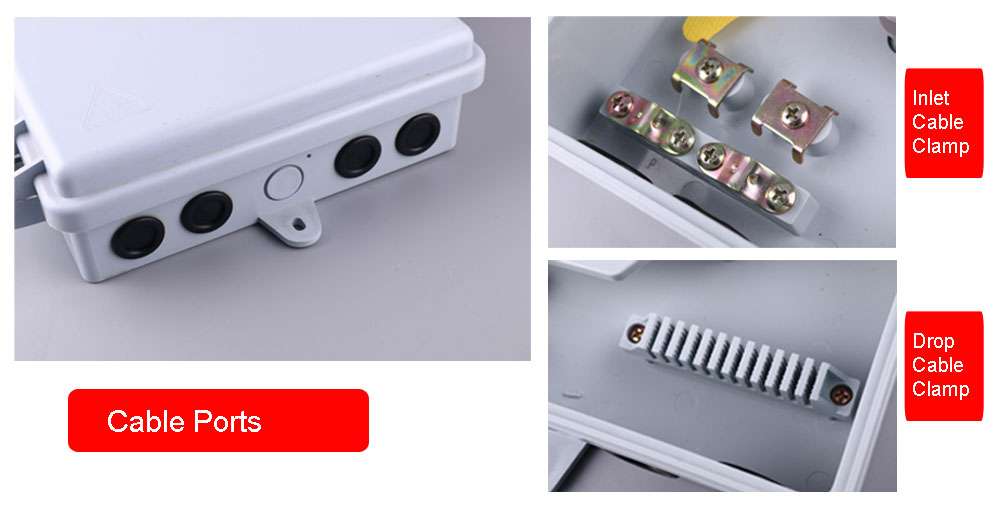

There are total4 pcs round cable ports for feerder cable go in and out of the fiber nap box with rubber seals, one more is for future use in middle. Construction worker can fix the cable strength members like aramid yarn, aluminum tape, waterblocking layer, etc on the internal cable fixture sheets, with cable clamps or nylon ties. On right of the metal sheet, there is plastic drop cable fixtures for FTTH figure 8 drop wires.

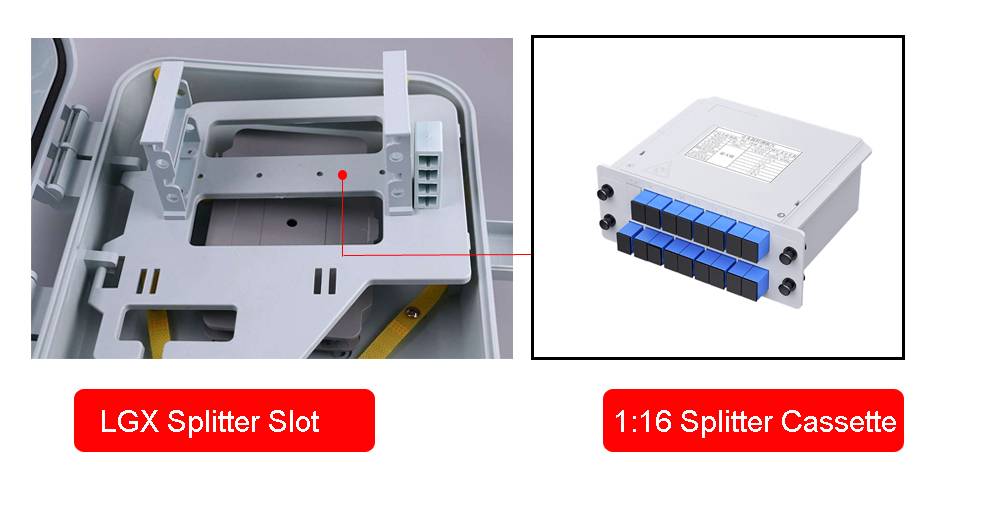

The splitter brackets are fixed on the top with screws, and there is cable berth on both sides, and we can use 2pcs 1*8 splitter or 1pc 1*16 splitter module in this box. SC/UPC or SC/APC connectors are optional.

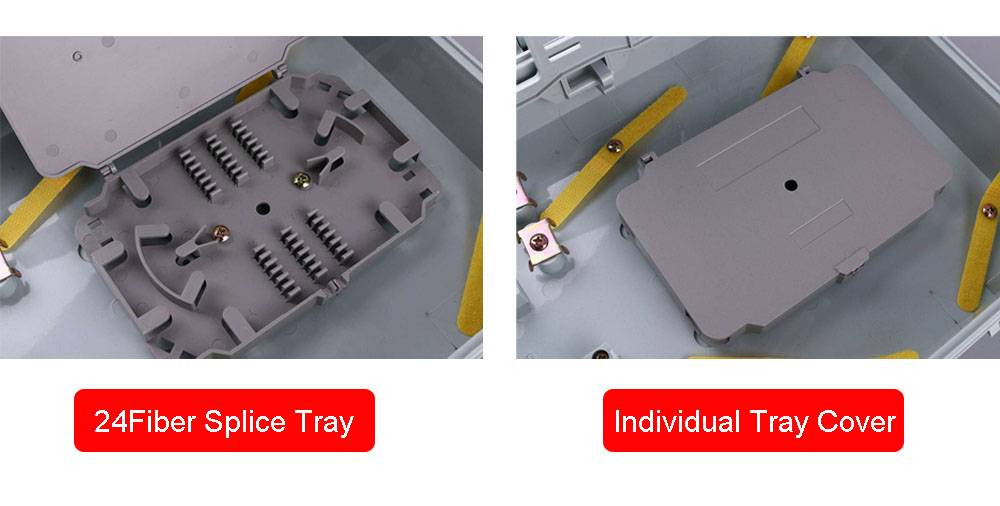

Under the plate, we can install 1piece splice trays with cover to hold the heat shrinkable protector tubing in the cassette, there are 12 slots in a tray, each hold one fiber, if double layer can do 24 fibers for single fiber. If more splice trays are stacked and prevent the splice trays falling and damage the optical fiber, you can fix the screws to the bottom of the box through the center hole of the splice tray.

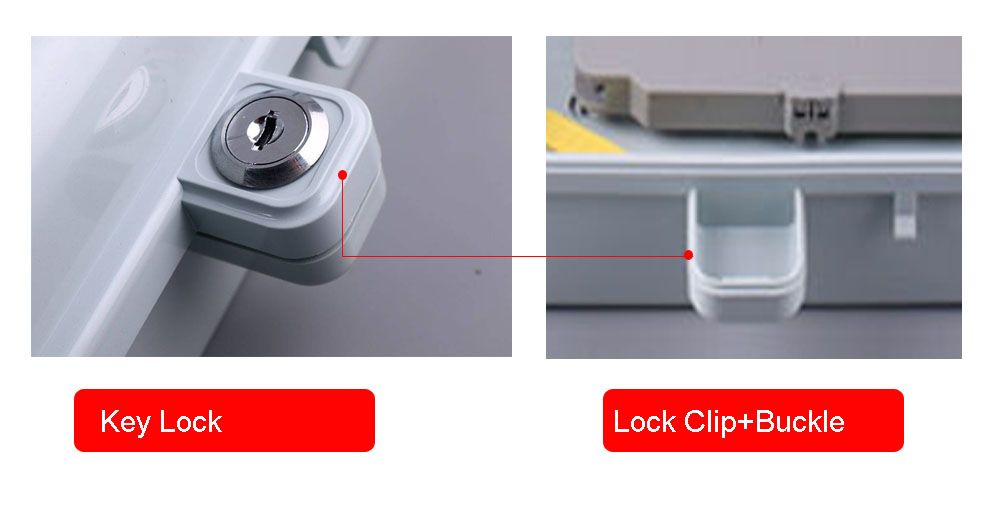

The entire FO splice box is equipped with a proprietary key and a buckle to open and close the box. It is easy to open, safe and convenient, and anti-theft.
Fiber Optic Products You May Need

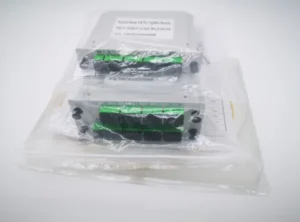

| 1:16 SC UPC Splitter Module | Fast Connector SC UPC | SC aAdapter With Shutter | SC-UPC Fiber Pigtail 0.9mm 12 Colors |
 |  |  |  |
