Description
FOC Patch Cord Features
- Cost effective solution for in house termination.
- Low insertion loss and added loss.
- Height of attenuation.
- IP67 water, dust proof and corrosion resistant.
- The material in the jumper cable are all-weather and UV-resistant.
- Mechanical performance: IEC 61754-4 standard.
- RoHS and REACH materials compliant.
FOC Patch Cord Application
- Multi-purpose Outdoor harsh environment.
- For connection between distribution box and RRH.
- Deployment in Remote Radio Head cell tower application.
SC Connector Type
| Type | Reference | Note | Polish mode |
| SC | IEC61754-4 | Single mode | APC:green connector UPC: blue connector |
| Multi-mode | UPC: gray connector |
Field Cable Parameter
| Cable Count | Out sheath Diameter （MM) | Weight （KG/KM) | Min allowable Tensile Strength (N) | Min allowable Crush Load （N/100mm) | Min Bending Radius (MM) | Storage temperature （℃） | |||
| short term | long term | short term | long term | short term | long term | ||||
| 1 | 5.0±0.2 | 26.5 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20 ~ +60 |

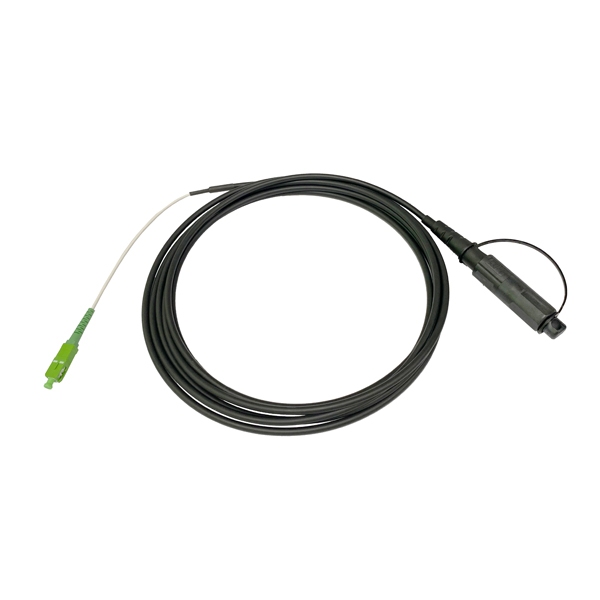

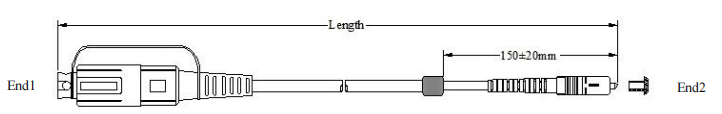

SC to SC FOC Patch Cord With 5.0mm Field Cable
Optical Characteristic
|
Item | Parameter |
Reference | |||
| Single mode | Multi-mode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC 61300-3-34 |
| Return loss | ≥ 50dB (PC) ≥ 60dB (APC) | ≥ 55dB (PC) ≥ 65dB (APC) | ≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
End-Face Geometry
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
| Radius of curvature (mm) | 10 to 25 | 5 to 12 |
| Fiber height (nm) | -100 to 100 | -100 to 100 |
| Apex offset (μm) | 0 to 50 | 0 to 50 |
| APC angle (°) | / | 8° ±0.2° |
| Key error (°) | / | 0.2° max |
End-Face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None |
IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
FOC Patch Cord Details

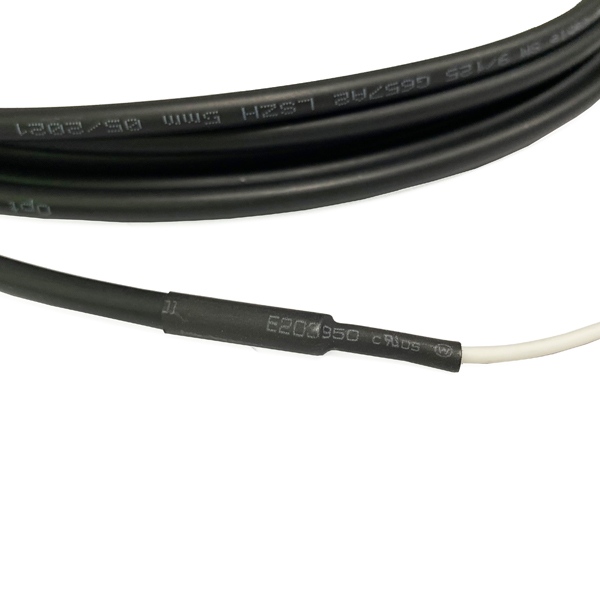

There are connector at both sides of the FOC patch cord, one end is SC/APC connector with white 3mm loose tube about 30cm. The cable cutting place from 5mm to 3mm is protected a section of heat shrinkable tubing.

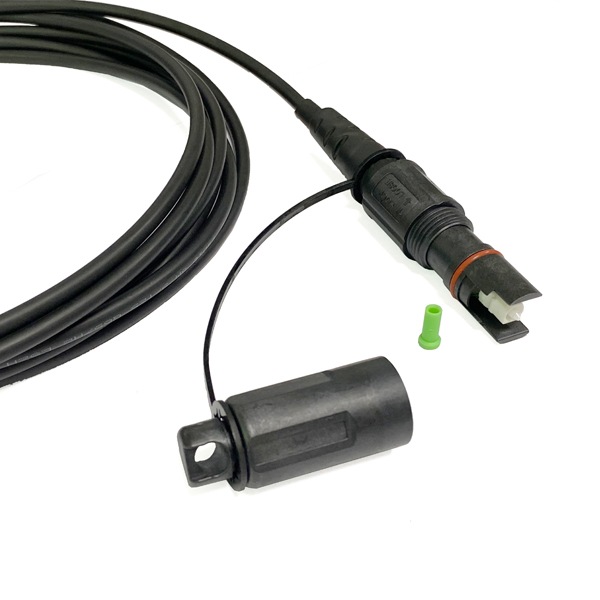

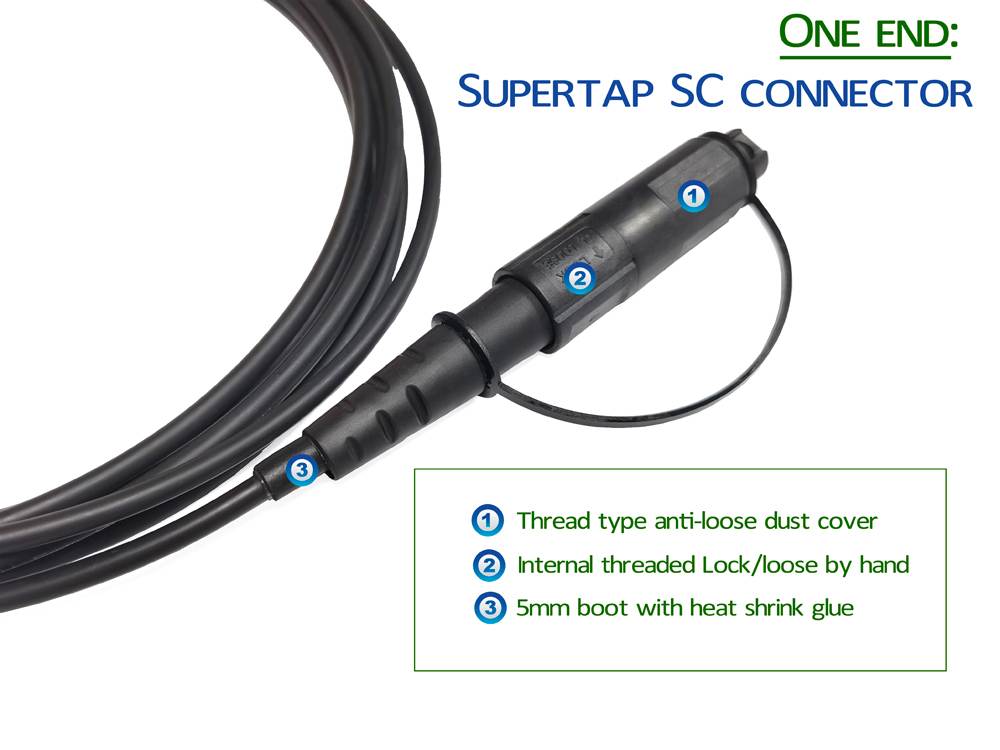

The other end of the fiber optic cable patch cord is Supertap (Optitap compatible) waterproof plug, internal with built-in SC connector. Hardened connector with anti-loose dust cap and 5mm boot for FTTA outdoor cable.

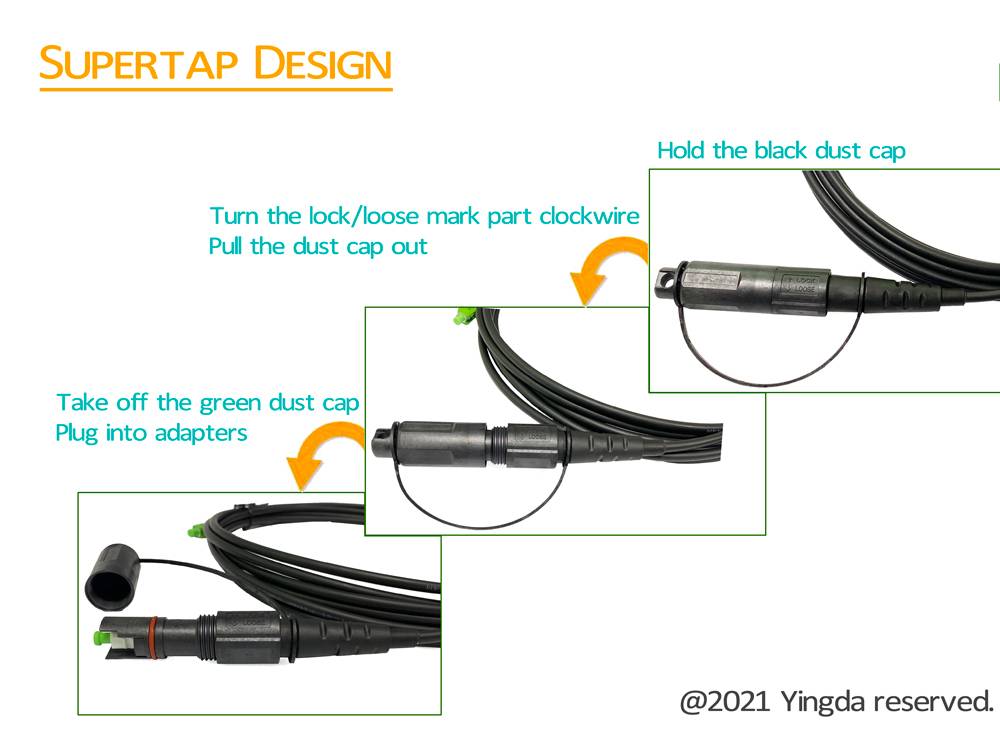

The waterproof plug is special design and you can open and close it as per below instructions.
