Description
Pre-terminated Patch cable is called Bunch/Distribution patch cable or Mini breakout patch cable. It’s suitable for laying in buildings, primarily in cable conduits and cable trays for direct connector assembly with no need for splice connectors.
Breakout Patch Cord Connector’s Standards:
Telcordia GR-326, IEC61300, IEC61300-2, IEC61754-20, ROHS and UL94 V0, etc.
Breakout Patch Cord Features
- 100% pre-terminated and test in factory to ensure transfer performance.
- Rapid configuration and networking, reduce installation time.
- Supports 40G and 100G network applications.
- Low insertion loss and added loss.
- RoHS and REACH materials compliant.
- End-face geometry and quality superior than IEC and Telcordia standards.
- Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
Fanout Patch Cord Specification
| Connector | LC/APC | Jacket OD(mm) | 22mm |
| Fiber mode | 9/125um | Jacket color | yellow |
| Polish method | APC | Wavelength | 1310/1550nm |
| Cable type | Multi-fibers breakout 2.0mm unit cable | Jacket material | PVC |
| Insertion loss | ≤0.3dB (IEC grade C) | Insertion loss | ≤0.12dB (IEC grade B) |
| Return loss | SM APC≥65dB(min) | Interchangeability &vibration | ≤0.2dB |
| Operating temperature | -40~+75°C | Storage temperature | -40~+85°C |
Connector End-face quality (Single mode)
| Zone | Range (um) | Scratches | Defects | Reference |
| A:core | 0-25 | none | none | IEC61300-3-35:2015 |
| B:cladding | 25-115 | none | none | |
| C: adhesive | 115-135 | none | none | |
| D:contact | 135-250 | none | none | |
| E: rest of ferrule | none | none |
Breakout Fan-out Cable Parameter
| Cable Count | Out sheath Diameter |
Inner sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
| （MM) | （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 02 | 7.0 | 2.0 | 45.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 04 | 7.0 | 2.0 | 47.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 06 | 8.3 | 2.0 | 64.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 08 | 9.5 | 2.0 | 88.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 10 | 11.0 | 2.0 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 12 | 12.2 | 2.0 | 142.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
Application: FTTH, FTTB, Security Monitor, Intelligent broadband, etc.
Order information -YDPC-A-B-FCFT-CLS
| YDPC | – | Connector A | – | Connector B | – | FC=Fiber count | FT=Fiber type | – | CL=cable length | S=Cable sheath |
| YD=yingda
PC=patch cord PG=pigtail |
LCA=LC/APC
LCU=LC/UPC SCA=SC/APC SCU=SC/UPC E2A=E2000/APC E2U=E2000/UPC … XXX=null |
LCA=LC/APC
LCU=LC/UPC SCA=SC/APC SCU=SC/UPC E2A=E2000/APC E2U=E2000/UPC … XXX=null |
01=simplex
02=duplex 04=4core 06=6core 12=12core 24=24core … |
2D=G.652D
A1=G.657A1 A2=G.65A2 B3=G.657B3 M1=OM1 M2=OM2 M3=M3 M4=OM4 M5=OM5 … |
001=1meter
002=2meter … 015=15meter … 120=120meter … |
P=PVC
L=LSZH O=OFNR |
For example:

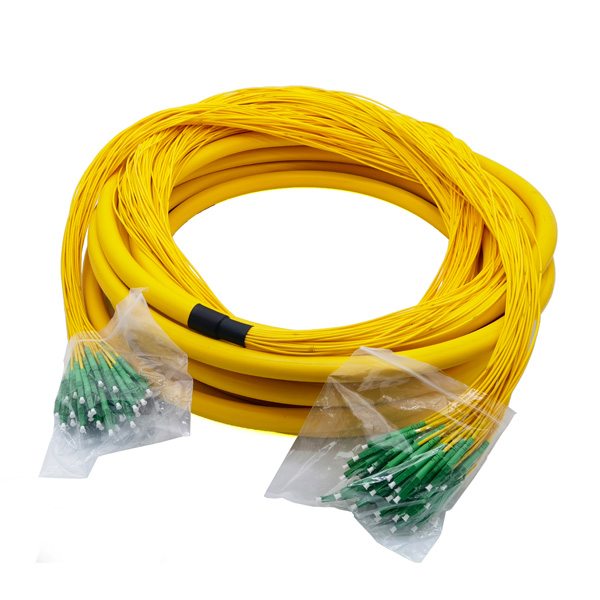

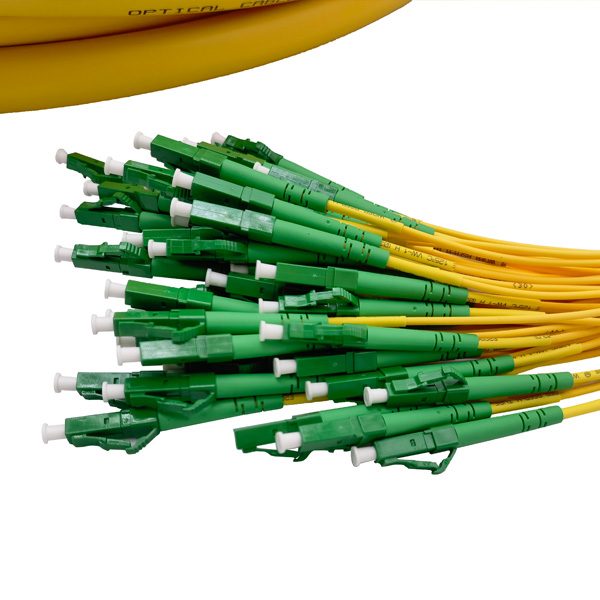

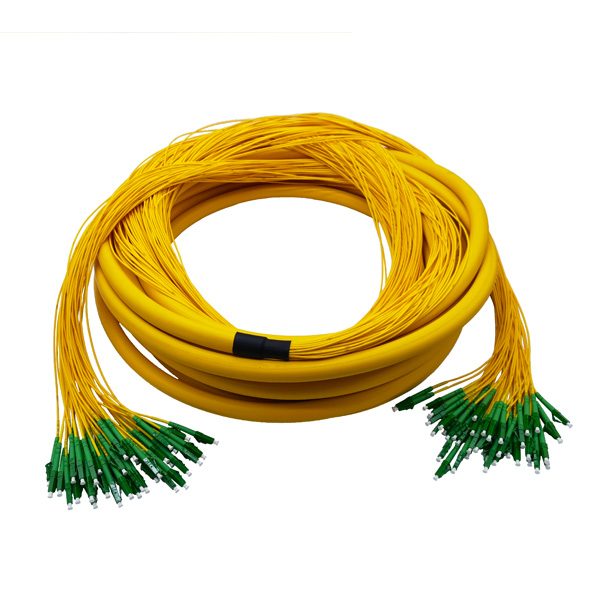

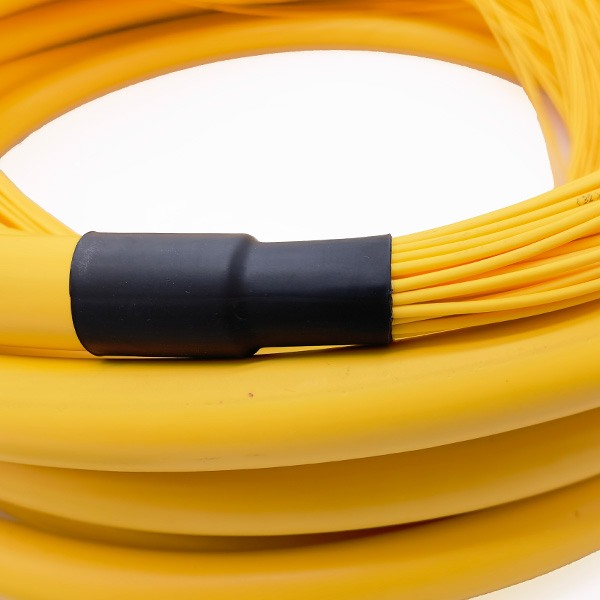

48core breakout patch cord 15meters PVC with LC/APC 2mm connectors YELLOW
Part no.: YDPC-LCA-LCA-48A1-015P
