Description

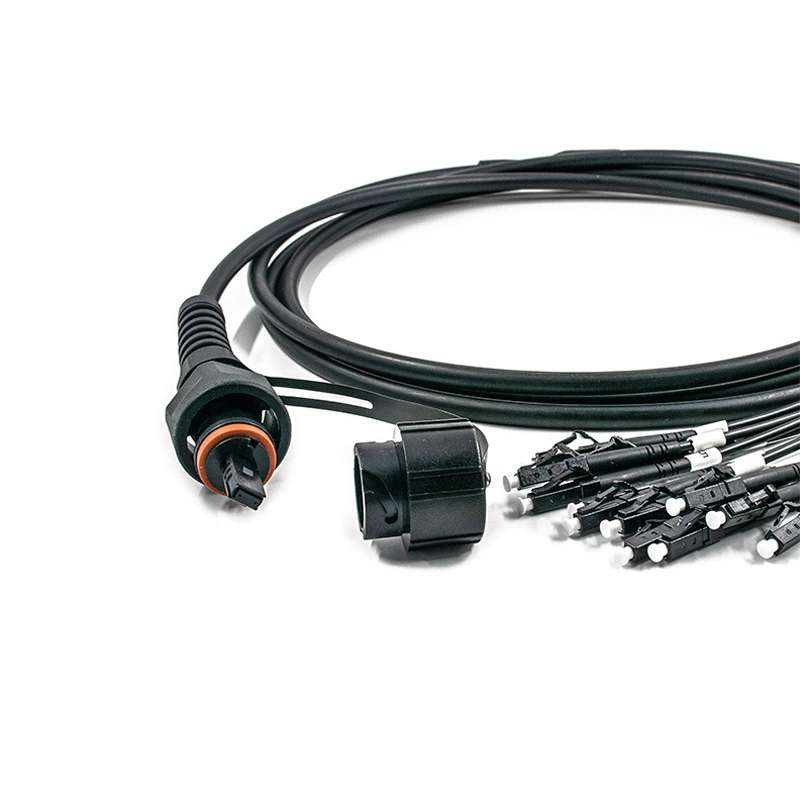

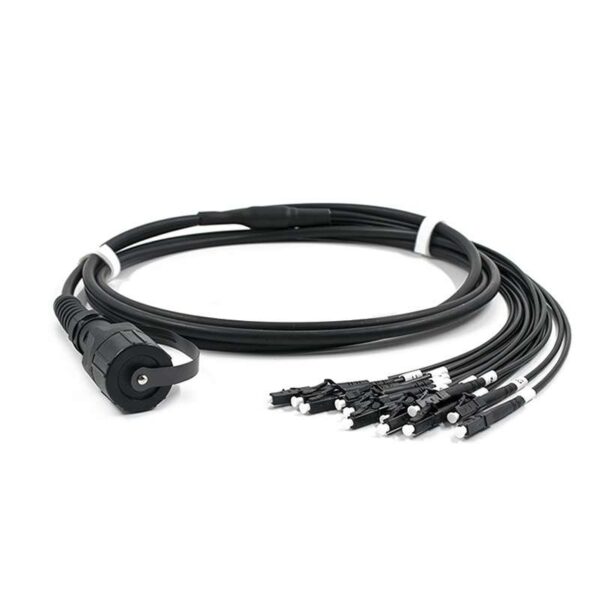

ODVA MPO to LC Patch cord assemblies provide an environmental seal and mechanical protection for muti fibers MPO style connections. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. ODVA provides quick installation solutions and has good performance on mating with ODVA receptacle. Cable can be armored or non-armored. The industrial multi fiber MPO assembly has been ratified as a “Standard Interface” in the ODVA (Open Device Net Vendors Association) as a next-generation industrial interconnect. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.
This IP67 standard outdoor ODVA fiber cables are used in FTTA, FTTH, industrial and military applications. They are ideal for harsh environment use, such as WiMax, LTE and RRH using in FTTA connectivity, which require rugged fiber connectors and armored cables. Typical MPO connector can transmit 12 channels inside the single connector body, while standard ensure the compatibility with other compliant connectors systems. ODVA are factory made and tested by Yingda, with optional cable diameters, cable length, optical fiber types (single mode ones and multi-mode ones).
To meet the needs of the next generation WiMax and long term evolution(LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, has released the ODVA DLC connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications. This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.
ODVA/MPO to LC Patch cord Features
Provides moisture and dust protection for use in harsh industrial environments.
IP67 protection, salt-mist proof, humidity proof, dust proof.
Sealed panel feed-through design for easy installation into enclosures.
100% optically tested to ensure quality performance assemblies.
Available in single mode and multi-mode styles to work with any common fiber type
Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications
Cost effective cable assemblies custom tailored for field use in harsh environments.
Light-weight cable reels organize and protect connectors and cable for easy installation and storage.
ODVA/MPO to LC Patchcord Application
- Distributed antenna systems
- Small sell systems
- Industrial/Oil/Gas
- Broadcast and Entertainment
- Other harsh environment applications
- Security/CCTV

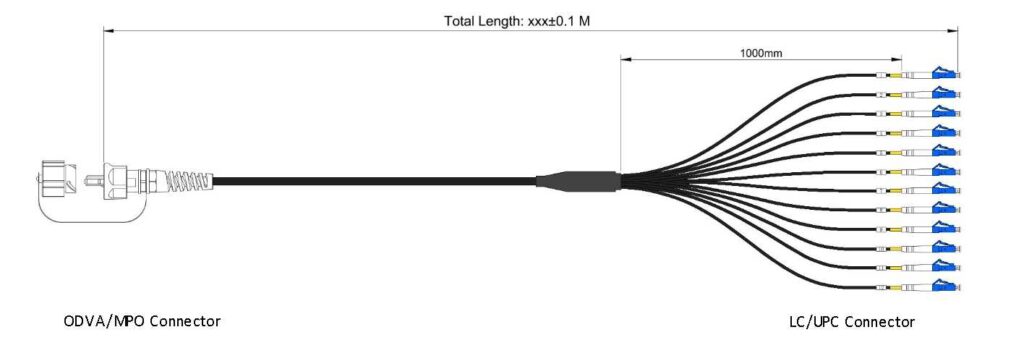

ODVA/MPO to LC Patch Cord Cable Specification
| Connector A | ODVA / MPO/F/12C |
| Standard loss | ≤0.75dB |
| Elite loss | ≤0.35dB |
| Return loss | ≥60dB |
| Connector type B | LC/UPC 2.0mm |
| Insertion loss | ≤0.3dB |
| Return loss | ≥50dB |
| Test wavelength | @1310nm/1550nm |
| Repeatability | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Durability | 800-1000 |
| Operating temperature | -40 ~75 ℃ |

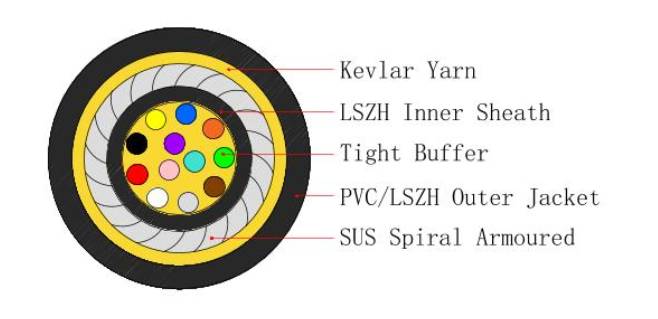

Armored Cable Parameters
| Fiber core | 12C | |
| Fiber type | SM/G657A2/9-125um | |
| Operating temperature | -40 ~75 ℃ | |
| Attenuation | ≤0.35dB/km@1310nm | |
| ≤0.21dB/km@1550nm | ||
| Outer jacket | Dimension | Φ6.0mm |
| Material | LSZH | |
| Color | Black | |
| Tension | Short term | 300N |
| Long term | 150N |
