ODVA MPO Fiber Optic Cable Outside Manufacturer

Description

Fiber Optic Cable Outside Features

Provides moisture and dust protection for use in harsh industrial environments.
IP67 protection, salt-mist proof, humidity proof, dust proof.
Sealed panel feed-through design for easy installation into enclosures.
100% optically tested to ensure quality performance assemblies.
Available in single mode and multi-mode styles to work with any common fiber type
Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications
Cost effective cable assemblies custom tailored for field use in harsh environments.
Light-weight cable reels organize and protect connectors and cable for easy installation and storage.

Fiber Optic Cable Outside Application

Distributed antenna systems
Small sell systems
Industrial/Oil/Gas
Broadcast and Entertainment
Other harsh environment applications
Security, CCTV network

12 Cores Outside Fiber Optic Cable

For this field cable assembly, we can make it armored or unarmored with 12pcs colored optical fibers in the middle, it is protected by kevlar and wrapped with a 3mm inner sheath, and covered with a 7mm LSZH outer sheath, providing double protection for harsh outdoor environments.

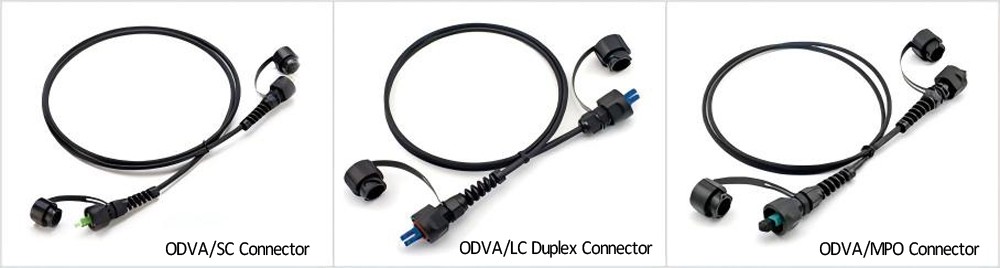

ODVA Connector Characteristics

Waterproof ODVA plug are IP67 protection hardened connecrtors, with SC , LC duplex and MPO interface inside. All ODVA cable assembly are factory made and tested by Yingda, with optional cable diameters, cable length, optical fiber types (single mode and multi-mode).

Item	Parameter				Reference
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB	IEC 61300-3-34
Return loss	≥ 50dB (PC)≥ 60dB (APC)	≥ 55dB (PC)≥ 65dB (APC)	≥30dB(PC)	≥30dB(PC)	IEC 61300-3-6
