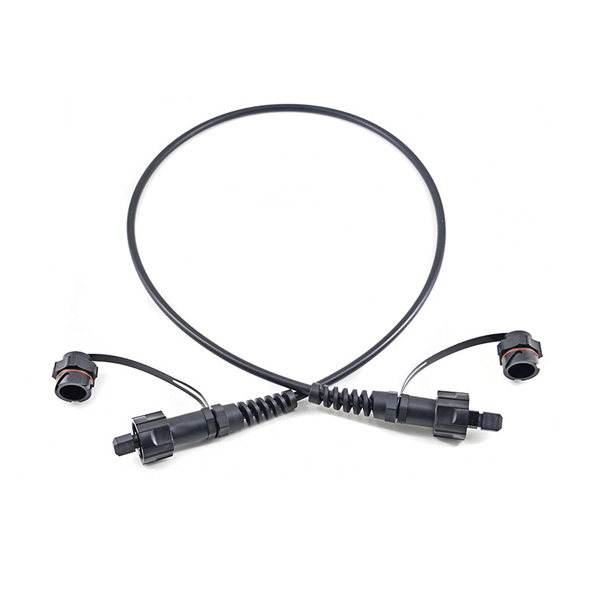

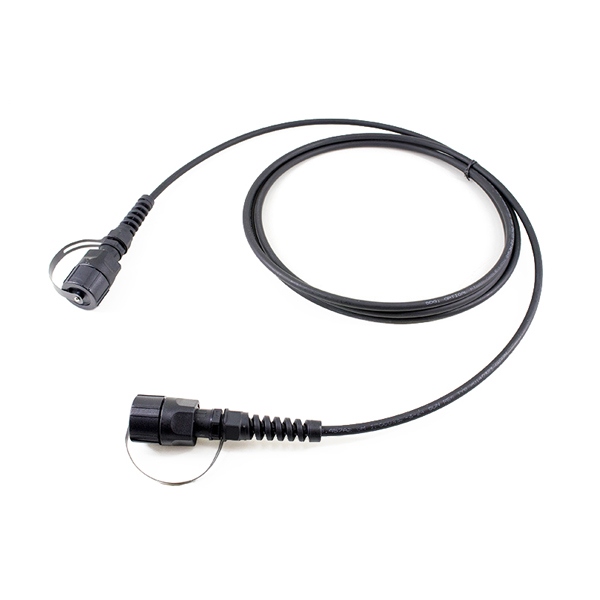

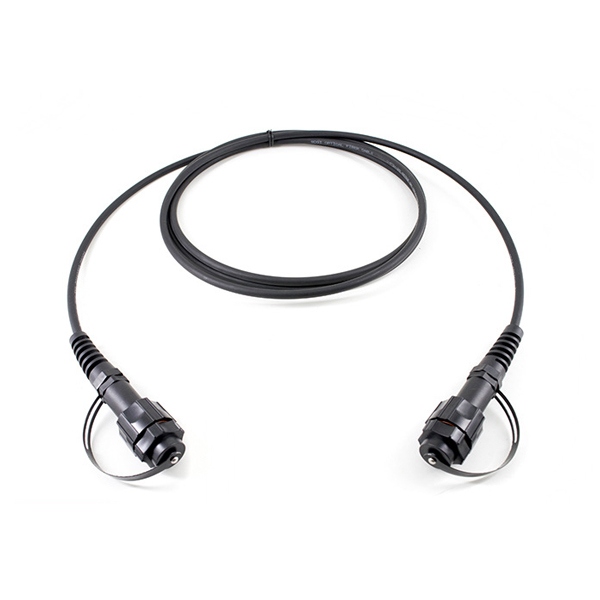

Patch Cable MTP ODVA Features
- Provides moisture and dust protection for use in harsh industrial environments.
- IP67 protection, salt-mist proof, humidity proof, dust proof.
- Sealed panel feed-through design for easy installation into enclosures.
- 100% optically tested to ensure quality performance assemblies.
- Available in single mode and multi-mode styles to work with any common fiber type
- Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
- Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications
- Cost effective cable assemblies custom tailored for field use in harsh environments.
- Light-weight cable reels organize and protect connectors and cable for easy installation and storage.
Patch Cable MTP/ODVA Application
- Distributed antenna systems
- Small sell systems
- Industrial/Oil/Gas
- Broadcast and Entertainment
- Other harsh environment applications
- Security, CCTV network
12 Cores Fiber Optic Cable
For this field cable assembly, we can make it armored or unarmored with 12pcs colored optical fibers in the middle, it is protected by kevlar and wrapped with a 3mm inner sheath, and covered with a 7mm LSZH outer sheath, providing double protection for harsh outdoor environments.
ODVA Connector Characteristics

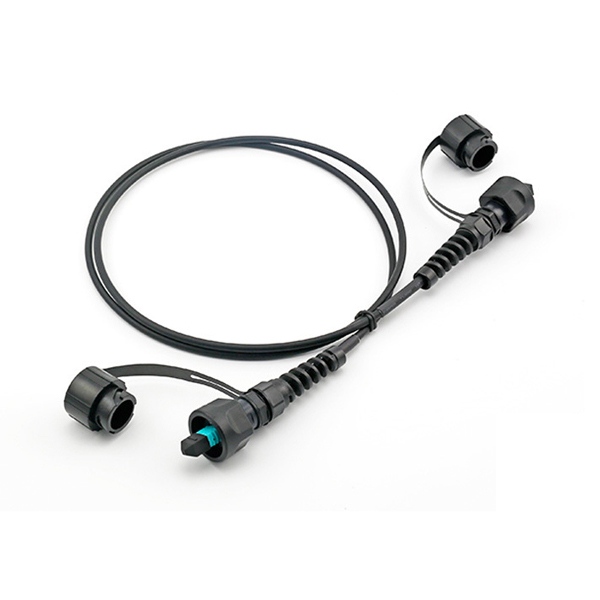

Waterproof ODVA plug are IP67 protection hardened connecrtors, with SC , LC duplex and MPO interface inside. All ODVA cable assembly are factory made and tested by Yingda, with optional cable diameters, cable length, optical fiber types (single mode and multi-mode).
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC 61300-3-34 |
| Return loss | ≥ 50dB (PC)≥ 60dB (APC) | ≥ 55dB (PC)≥ 65dB (APC) | ≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
MPO/MTP Connector End-Face Geometry
| Ferrule parameter | IEC-61300–3-30 | |||
| Minimum | Maximum | |||
| ROC | ROC-X: | 2000mm | ∞ | |
| ROC-Y: | 50mm | ∞ | ||
| Angle | Angle-X: | -0.2° | 0.2° | |
| Angle-Y: | PC | -0.2° | 0.2° | |
| APC | 7.85° | 8.15° | ||
