Description
PLC (Planar Lightwave Circuit) optical splitter for divided equally or converge optical signal. The design of planar waveguide technology provided a low-cost optical splitter solution with a small package and high reliability features.
Mini Module PLC Optical Splitter Features
- Low Insertion loss
Low PDL - High Return Loss
- Uniform Power Splitting
- Compact Design
- Wide Operating Wavelength
- Wide Operating Temperature
- Excellent Environmental & Mechanical Stability
- Qualified Under Telcordia GR-1221 and GR-1209
Mini Optical Splitter Application
- FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON) - Local Area Networks (LAN)
- CATV Systems
- Test Equipment
Mini Splitter Optical Specification
| Split ratio | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | ||||
| Operating Wavelength (nm) | 1260-1650nm | ||||||||||||||||
| Fiber Type | G657A1 or customer specified | ||||||||||||||||
| Insertion Loss (dB)S Grade | 4.2 | 7.6 | 10.7 | 14 | 17.2 | 20.8 | 24 | 4.4 | 8 | 11 | 14.6 | 17.8 | 21 | ||||
| Insertion Loss (dB) P Grade | 4 | 7.4 | 10.5 | 13.8 | 17 | 20.4 | 23.7 | 4.2 | 7.7 | 10.8 | 14.1 | 17.4 | 20.7 | ||||
| Loss Uniformity(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 2.0 | 2.0 | 2.0 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
| PDL(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | ||||
| Return Loss (dB) | 55 | ||||||||||||||||
| Directivity (dB) | 55 | ||||||||||||||||
| Wavelength Dependent Loss(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 | 0.2 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
| Operating Temperature | -40- +85℃ | ||||||||||||||||
Note: All the data above does not include connectors.
UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB

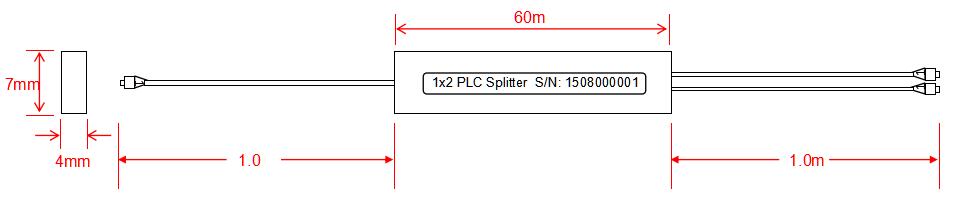

Mini Module Splitter Steel Tube Device Dimension
| Model | Split ratio | Steel tube size(mm) |
| YDPLC-MM-102 | 1X2 | 60*7*4 |
| YDPLC-MM-104 | 1X4 | 60*7*4 |
| YDPLC-MM-108 | 1X8 | 60*7*4 |
| YDPLC-MM-116 | 1X16 | 60*12*4 |
| YDPLC-MM-132 | 1X32 | 80*20*4 |
| YDPLC-MM-164 | 1X64 | 100*40*6 |
| YDPLC-MM-202 | 2X2 | 60*7*4 |
| YDPLC-MM-… | … | … |
Mini Module Optical Splitter Product Details

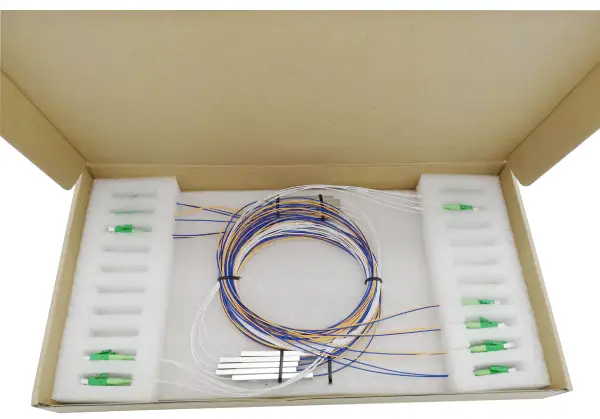

Blister box or plastic bag package will be available, for better protection, blister box will be better and nice appearance if you do optical splitter wholesale. we can paste stickers on the blister box with your logo, part number and descriptions for better brand promotion.
And every one piece of optical fiber splitter use high quality G657A fiber, hytrel loose tube, best for ftth network.
The connectors for plc splitter can be SC LC FC ST, etc, in China most use SC/UPC connectors, the same in Asia market; but for other countries mostly use SC/APC connectors, less SC/UPC. Also for Middle east, they most prefer LC/APC connectors and input 2 ports.

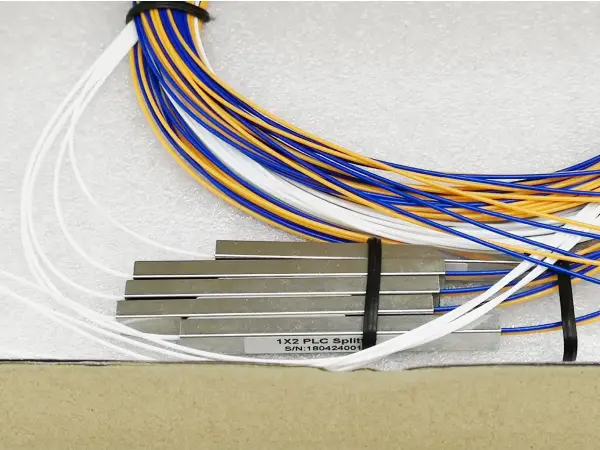

We will paste stickers on the stainless steel tube, with product name and serial number to keep record when it was made and good for traceability.
