Description

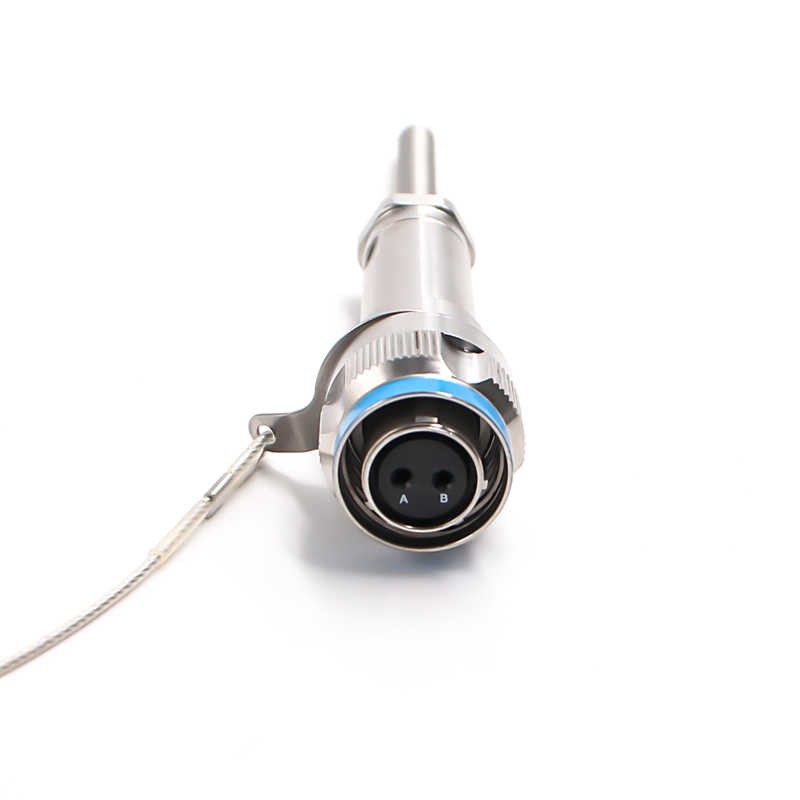

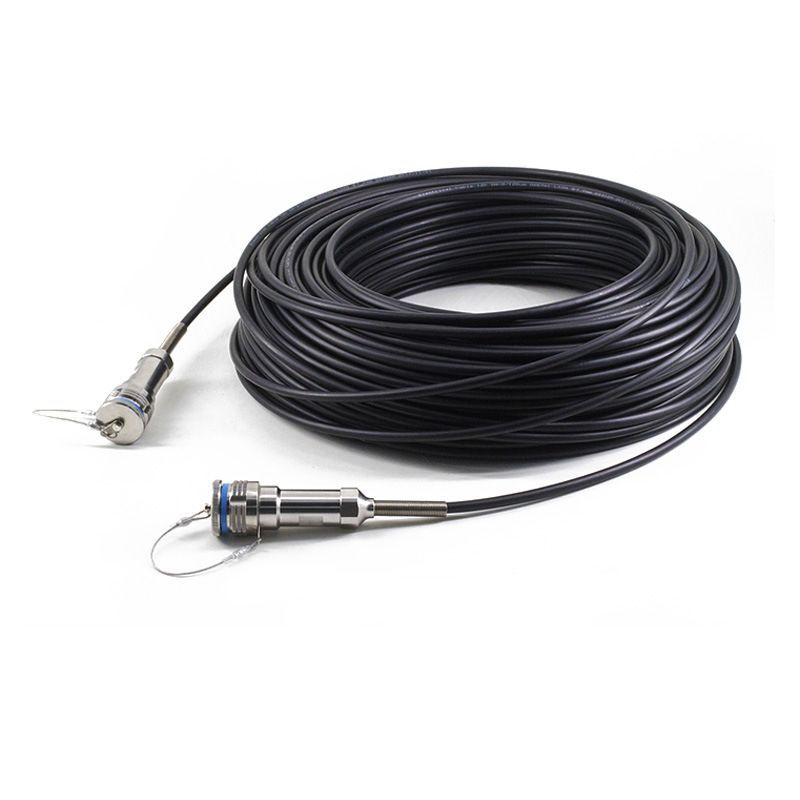

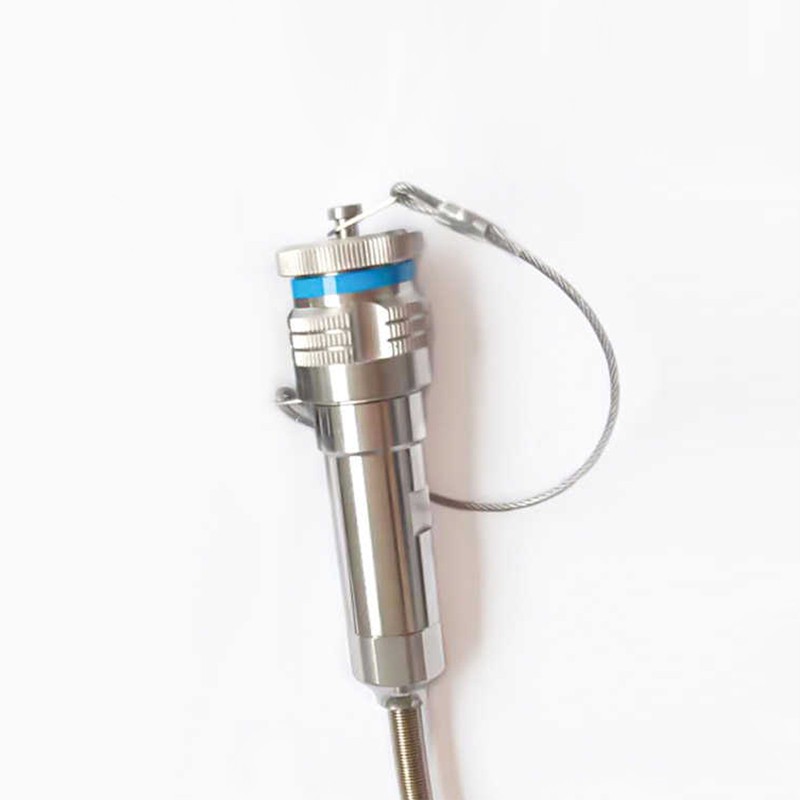

J599 Pigtail Patch Cord Features
- Outer shell can be made of different materials and coatings to meet different environmental requirements
- Five-key positioning, with blind insertion and anti-wrong insertion functions
- Three-head threaded quick connection, with anti-loosening mechanism
- Use ceramic pins and sleeves to achieve precise docking of contacts
- A variety of tail variations are available, like J599, SC LC FC ST, etc
- A transfer socket (optional gas seal) is available to get rid of the constraints of optical cables
- Armored field optical cable, spiral stainless steel hose protection, strong pressure resistance, good flexibility, wear resistance and bending resistance
Pigtail Patch Cord Application
- Company standards: Q/21EJ1305 interface size complies with GJB599A
- (MIL-DTL-38999)Ⅲ, performance complies with ARINC801 standard
- Applicable to aviation, electronics, performance, coal mine, ships and other systems, used for multi-channel optical communications
J599 Patch Cords Technical Parameters
| Item | Fiber patch cord J599 to J599 |
| Fiber count | 1 ~12 cores |
| Cable sheath | TPU |
| Insertion loss | Single mode ≤0.4dB, multimode≤0.5dB |
| Return loss | ≥50dB |
| Vibration | 10Hz～2000Hz, power spectrum density 0.4G2/Hz |
| Shock | 2940 m/s2, duration 3ms, velocity change rate 2.96m/s |
| Mechanical life | 500 times |
| Tensile strength | ≥68N (2mm contact jumper) |
| Air tightness (for airtight adapter sockets) | Gas leakage ≤1*10 -9 Pa.m 3 /S Internal and external pressure difference is 1 atmosphere ≥1000h (stainless steel material, aluminum alloy cadmium plating ≥48h (aluminum alloy nickel plating |
| Working temperature | -55 ~+85℃ |
