Description
Pre Terminated Outdoor Fiber Optic Cable Features
- 2fibers, singlemode or multi mode
- Compact design with 2×1.25mm ferrules
- Built-in socket with square or hexagonal flange
- Extension connector for cable chaining
- Screwed locking mechanism
- Easy and safe installation
- Water proof, dust proof and corrosion resistant
- Water proof protection caps
- EMI protected, RoHs compliant
- Fulfills performance standard IEC 61753-1 Cat.e

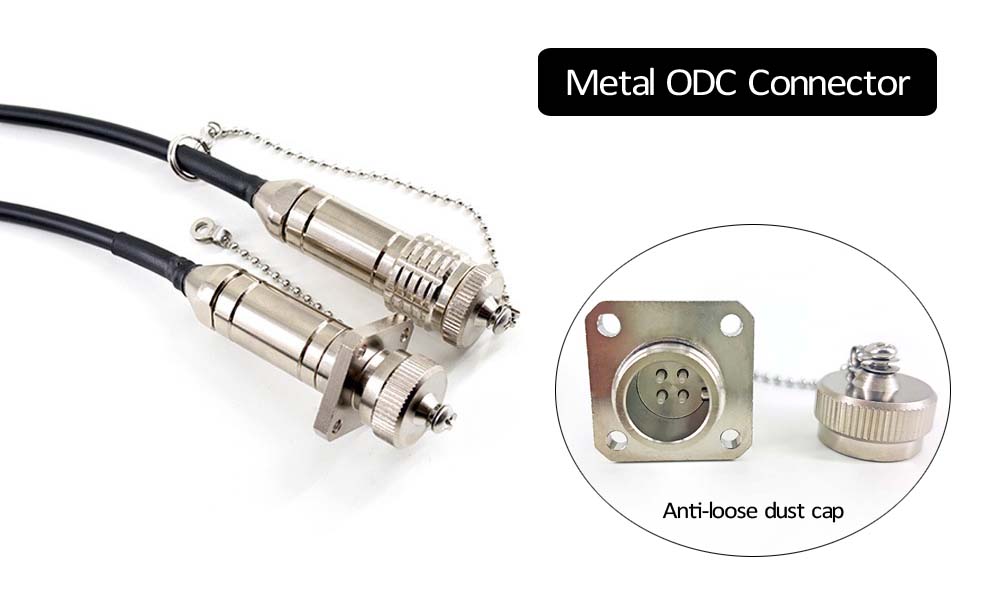

Metal ODC Connector Parameter
| Technology | Full ceramic ferrule and sleeve | |
| Housing material | Nickel plated brass | |
| Mechanical performance | ODC plug | ≤1000 N tensile load≤30 N static side load |
| ODC socket | ≤30 N tensile load | |
| Installation torque force | min.1Nm | max.2Nm |
| Operating temperature | IEC 61300 – 2 – 22 | -40℃ up to +85℃ |
| Mating durability | 1000 cycle | |
| Ingress protection(mate) | IEC60529 | IP 68 |
| Salt mist | IEC61300-2-26 | 30 days passed |
| Vibration | IEC61300-2-1 | Pass 10-500Hz/10g |
| Shock | IEC61300-2-9 | Pass 100g |
ODC connectors utilize a threaded locking mechanism to ensure a safe and reliable connection. Thanks to their guide pins, they can be easily and quickly installed with one-handed blind mating. The products achieve an IP67 waterproof rating, providing excellent waterproof, dustproof, and corrosion-resistant protection, making them well-suited for outdoor use. The stainless steel connector material offers superior electromagnetic pulse protection and resistance to electromagnetic interference.

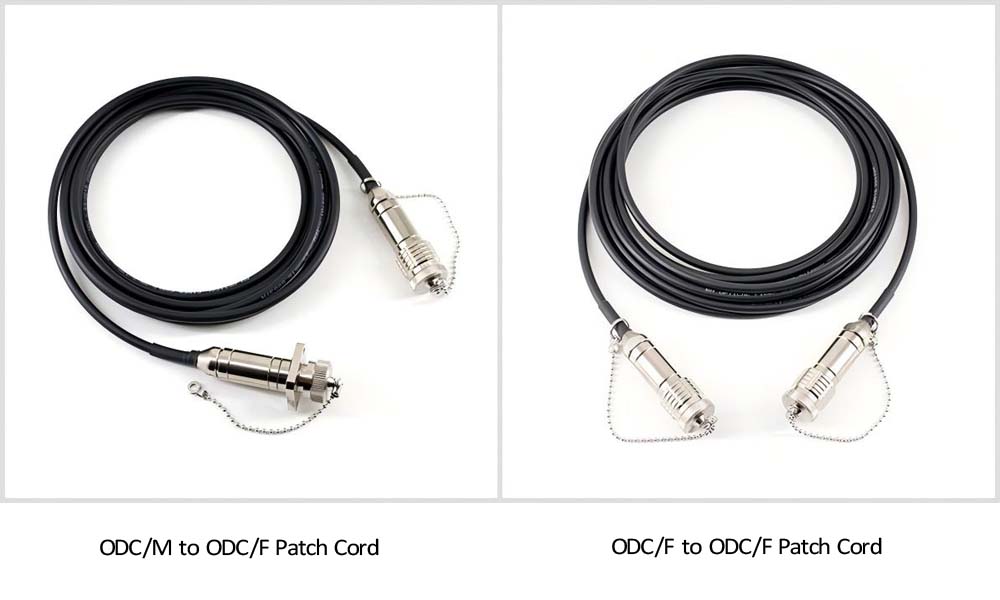

4 Cores ODC fiber optic cable assemblies can be customized to different cable lengths and connector combinations to meet specific needs. Yingda ODC metal housing connector can be male connector in square shape or female connector in round shape. All standard fiber optic connectors (such as LC, SC, etc.) are compatible.
